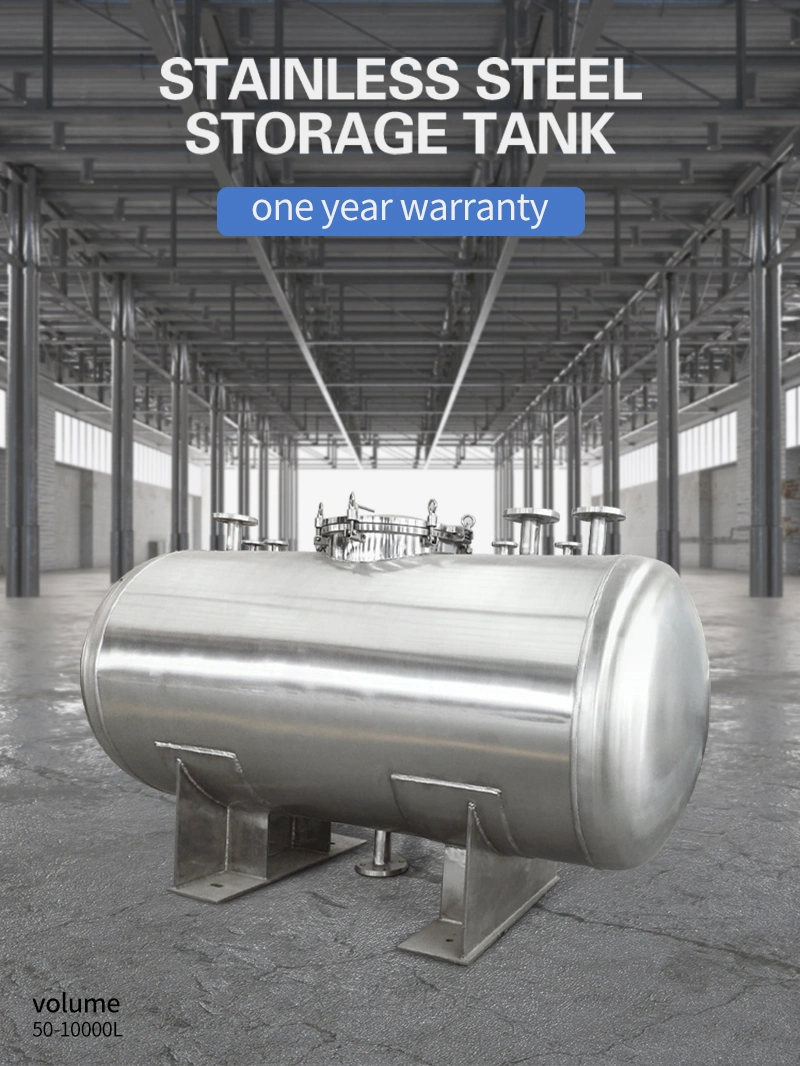

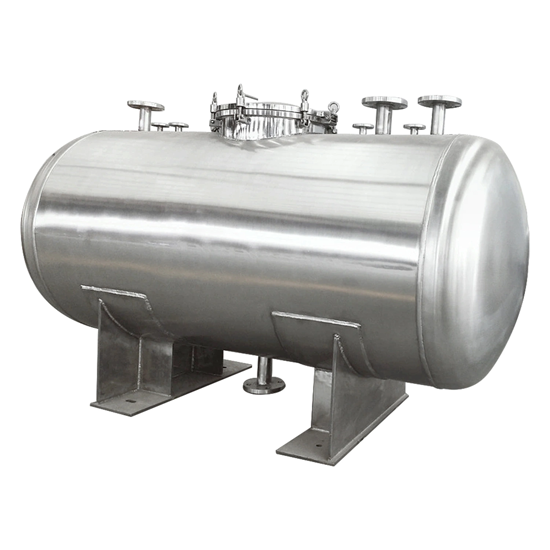

Stainless Steel Chemical Horizontal Oil Storage Tank
- After-sales Service:
- Online Support
- Warranty:
- 1 Year
- Certification:
- ISO9001
- Condition:
- New
- Customized:
- Customized
- Tank Marerial:
- SUS 304
Basic Info.
| Storage Objects | Liquid | Type | Customer Customization |
| Barrel Diameter | 800mm | Inlet and Outlet Diameter | 38mm |
| Position | Horizontal Type | Structure | Single Layer |
| Source of Goods | Factory Direct Deal | Processing Customization | Yes |
| Areas of Adaptation | Food and Beverage | Packaging Method | Wrapped Film/Wooden Case |
| Working Temperature | -10~150 Degrees Centigrade | Texture of Material | SUS304 Stainless Steel |
| Specification | 500L | Transport Package | Wooden Box |
Product Overview

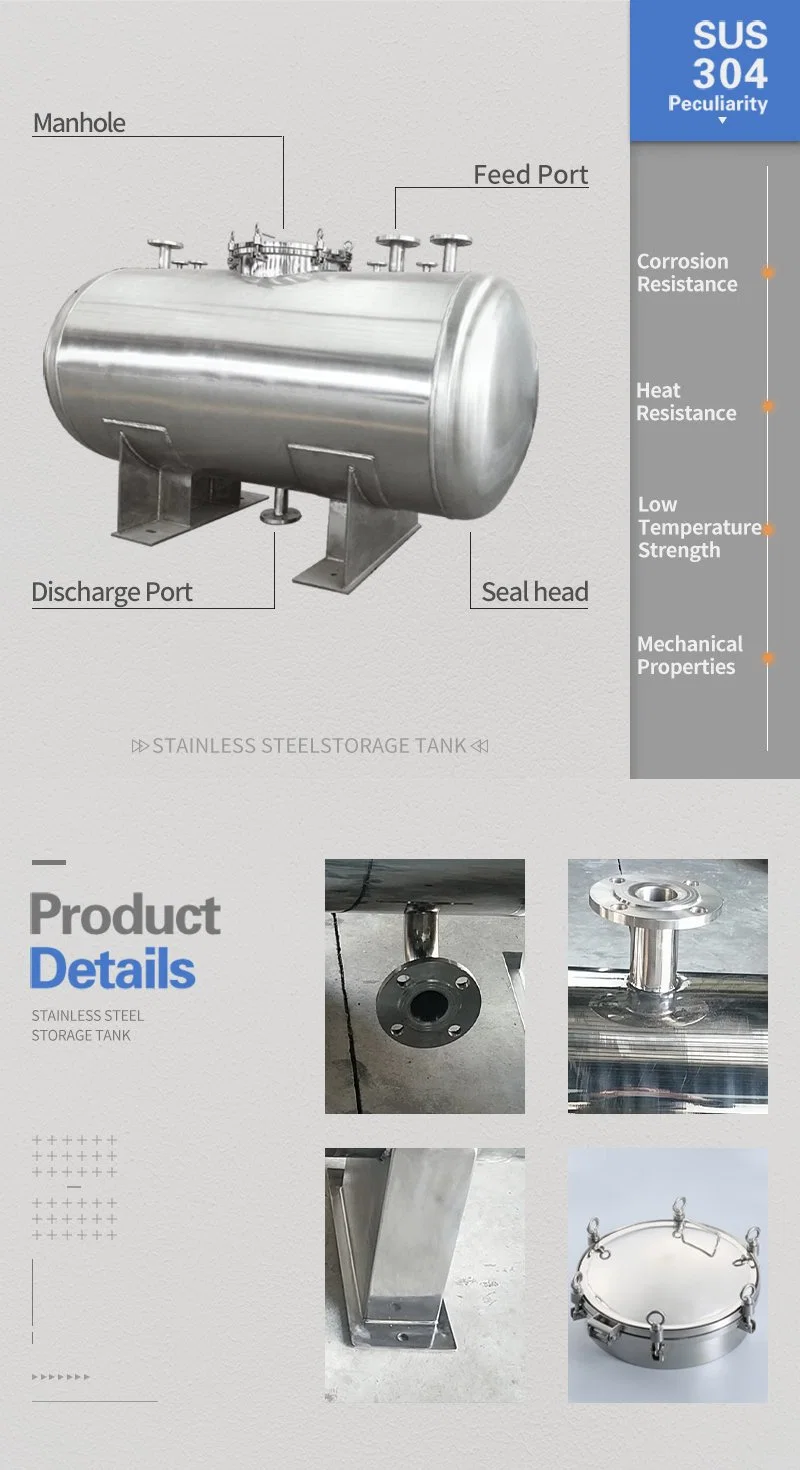

Stainless steel storage tank is a kind of storage equipment, which has the advantages of convenient operation, corrosion resistance, convenient cleaning and shock resistance. It is one of the indispensable equipment for storage and transportation in production. The stainless steel tank is made of stainless steel, with internal and external polishing, which fully complies with GMP standards. Stainless steel tanks can be equipped with sterile air filters, thermometers, pressure gauges, mirrors, CIP cleaning balls, level gauges, etc., or according to customer requirements.
Product Classification
1. It can be divided into vertical storage tank and horizontal storage tank according to the placement mode;
2. It can be divided into single-layer storage tank, double-layer storage tank and three-layer insulated storage tank according to the structure mode;
3. It can be divided into mobile tank and fixed tank according to the moving mode.
Technical parameter
| Volume(L) | Inlet & outlet diameter(mm) | Overall dimension(mm) | Material |
| 500 | 38 | W800×L1000×H2250 | SUS304/316L |
| 600 | 38 | W920×L1000×H2300 | SUS304/316L |
| 700 | 38 | W990×L1000×H2300 | SUS304/316L |
| 800 | 38 | W950×L1220×H2500 | SUS304/316L |
| 900 | 38 | W950×L1220×H2500 | SUS304/316L |
| 1000 | 51 | W1060×L1220×H2550 | SUS304/316L |
| 1500 | 51 | W1160×L1500×H2850 | SUS304/316L |
Note: The technical parameters of the storage tank in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.
