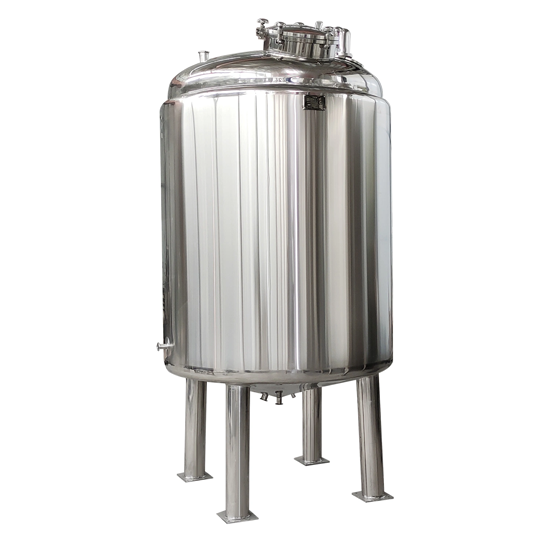

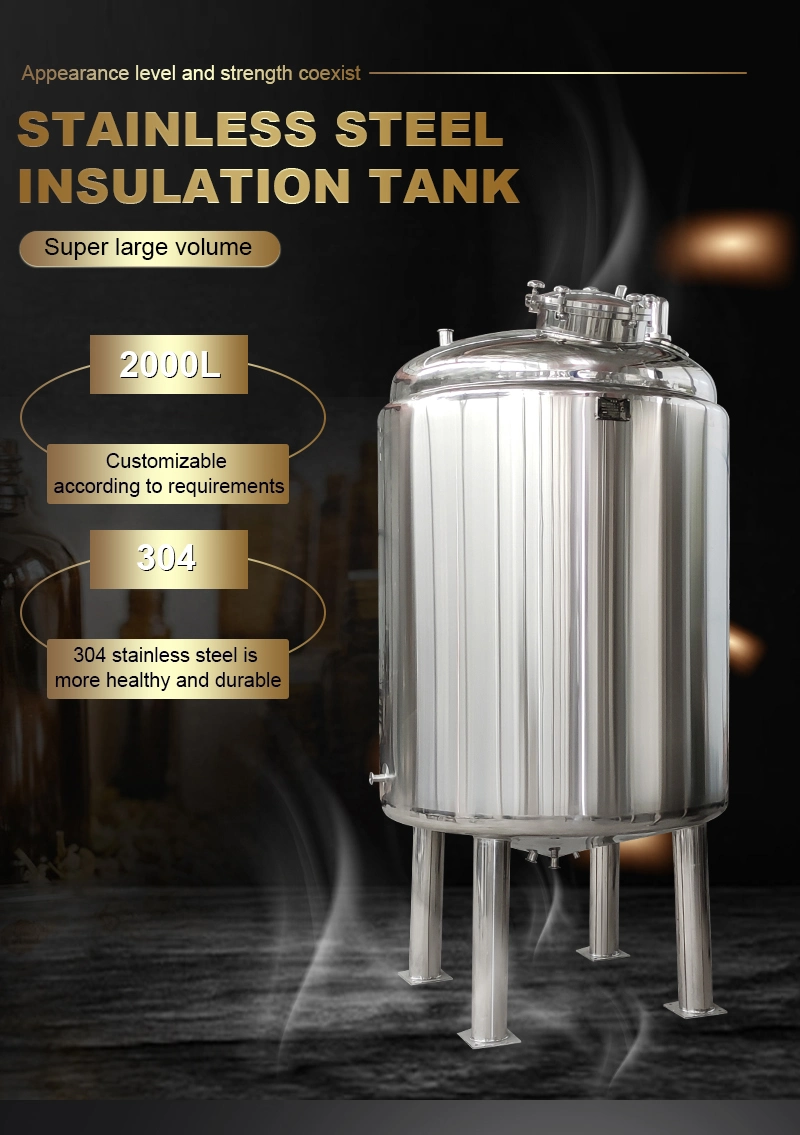

2000L Stainless Steel Insulated Storage Tank for Water Oil and Milk
- After-sales Service:
- Online Support
- Warranty:
- 1 Year
- Certification:
- ISO9001
- Condition:
- New
- Customized:
- Customized
- Tank Marerial:
- Metal Tank
Basic Info.
| Storage Objects | Liquid | Type | Middle Pressure Storage & Transportation Equipment |
| Wall Thickness | 3mm | Cylinder Diameter | 1300mm |
| Height | 2900mm | Pressure | Ordinary Pressure |
| Transport Package | Wooden Case | Structure | Vertical |
| Origin | China | Specification | 2000L |
Product Overview

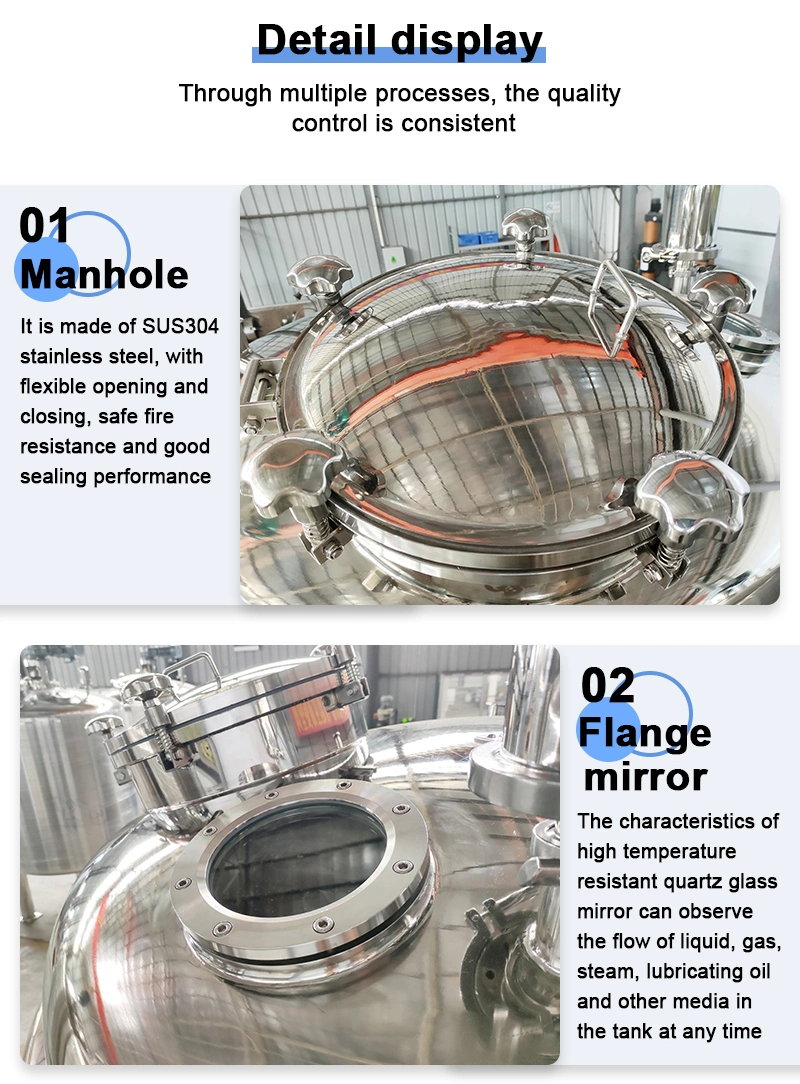

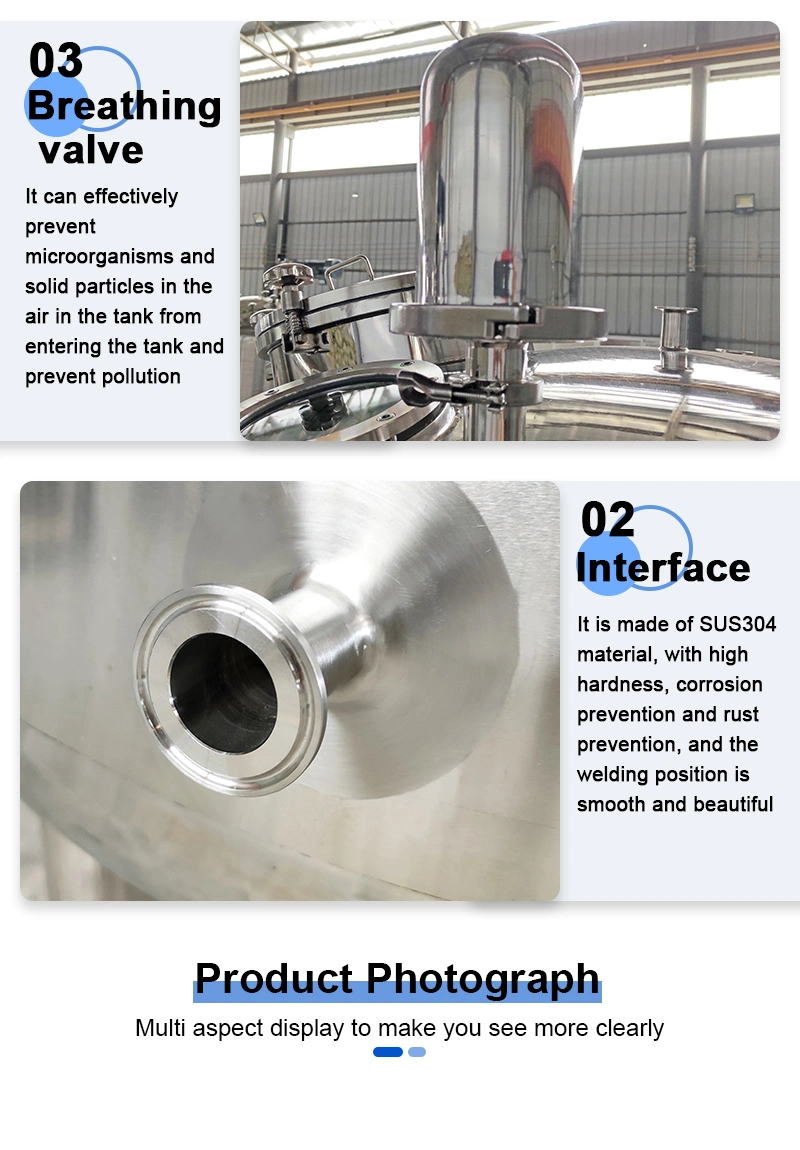

Stainless steel storage tank is a kind of storage equipment, which has the advantages of convenient operation, corrosion resistance, convenient cleaning and shock resistance. It is one of the indispensable equipment for storage and transportation in production. The stainless steel tank is made of stainless steel, with internal and external polishing, which fully complies with GMP standards. Stainless steel tanks can be equipped with sterile air filters, thermometers, pressure gauges, mirrors, CIP cleaning balls, level gauges, etc., or according to customer requirements.
Product Classification
1. It can be divided into vertical storage tank and horizontal storage tank according to the placement mode;
2. It can be divided into single-layer storage tank, double-layer storage tank and three-layer insulated storage tank according to the structure mode;
3. It can be divided into mobile tank and fixed tank according to the moving mode.
Technical parameter
| Type | Volume(L) | Inlet & outlet diameter(mm) | Overall dimension(mm) | Material |
| MK-CG-5 | 500 | 38 | W800×L1000×H2250 | SUS304/316L |
| MK-CG-6 | 600 | 38 | W920×L1000×H2300 | SUS304/316L |
| MK-CG-7 | 700 | 38 | W990×L1000×H2300 | SUS304/316L |
| MK-CG-8 | 800 | 38 | W950×L1220×H2500 | SUS304/316L |
| MK-CG-9 | 900 | 38 | W950×L1220×H2500 | SUS304/316L |
| MK-CG-10 | 1000 | 51 | W1060×L1220×H2550 | SUS304/316L |
| MK-CG-15 | 1500 | 51 | W1160×L1500×H2850 | SUS304/316L |
Note: The technical parameters of the storage tank in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.
