Unique Design 5000 Full Automatic Carbon Dioxide Beverage Mixing Machine
- Material:
- Stainless Steel SUS304
- Size:
- 2000*1000*1800mm
- Capacity:
- 500~5000L/H
- Weight:
- 600KG
- Function:
- Mixing carbon dioxide with water
- Power:
- 2.8KW
- Type:
- Double Wall
- Voltage:
- 220V/380V 50HZ (Customized)
- Working Pressure:
- 0.05-0.15Mpa
- Processing Types:
- Carbonated Beverage, Carbonated beverage

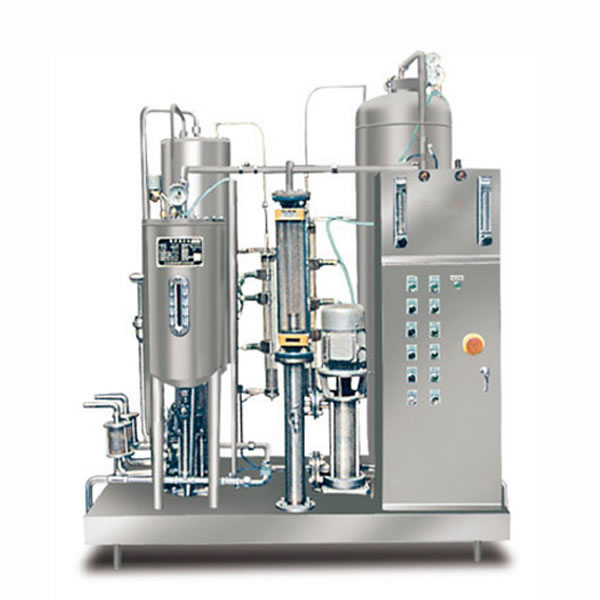

7- 8 Liter High Content Automatic Industrial Beverage Mixer
Equipment Overview : beverage mixer is the company's absorption of imported technology combined with the production of gas-containing beverages. It has developed internationally and is in a leading position among domestic similar products. The mixer is suitable for the mixing processing of various carbonated beverages, and can also be used for the mixing processing of other beverages such as pulp beverages and fermented beverages.
Local features:
- Excellent material selection and processing precision
- Fully automatic with alarm
- Good operation and easy adjustment
- Mix well and match the ratio
- Contains gas and high efficiency
- Self-cleaning, high purity
| Production capacity | 1500, 3000, 6000, 8000, 15000, 20000 (pbh) | ||
| The range of syrup and water regulation | 1:3-1:10 | ||
| Water content | > 2.5 (CO2: H 2O volume ratio) | ||
| Chilled water inlet temperature | 0-4 (℃) | ||
| Pre-carbonation tank, syrup tank working pressure | 0.05 to 0.09 (M pa) | ||
| Working pressure of storage tank | 0.2 to 0.5 (M pa) | ||
| Power (kw) | 2.42 (1500), 3.15 (3000), 6.3 (6000), 7.85 (8000) |
