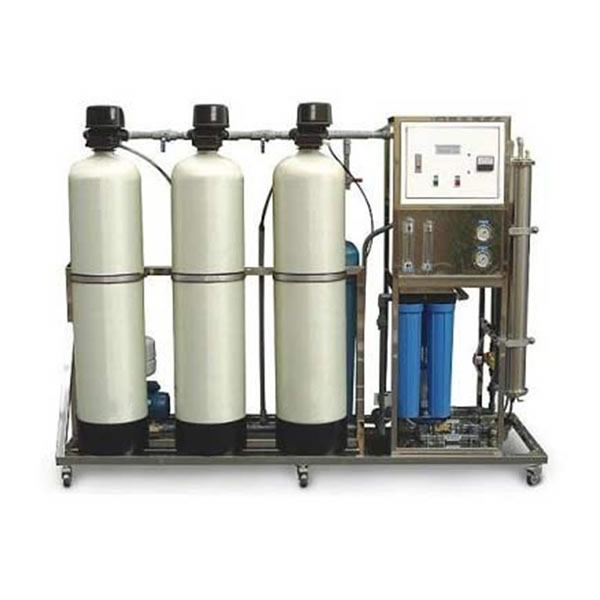

Industrial Drinking Water Purification RO Water Filter Production Line

Material:
FRP
Size:
1800*1800*600mm
Capacity:
3000lph
Weight:
350kg
Treatment stag:
2 stage
Pump:
Nanfang
Function:
Producing pure water
Power:
0.37
Type:
Reverse osmosis
Contact Now

Industrial Drinking Water Purification RO Water Filter Production Line

The RO system consists of raw water pretreatment , RO unit and post-treatment. Due to the wide variety of raw waters and the complexity of the ingredients, it is necessary to select a suitable pretreatment process to reduce scale and scale and prevent the performance of the RO membrane from deteriorating. Especially in the field of reclaimed water and wastewater reuse, the selection of a suitable pretreatment system will directly affect the stability of the entire water treatment system.

Therefore, the raw water must be strictly pretreated. According to different water quality requirements, choose the appropriate after treatment system to meet the final requirements of aquatic products. If there are high requirements for microorganisms, we can choose a combination of ozone and UV disinfection technology. Thanks to the RO process, we can make the system more stable, lower energy consumption and water quality guarantee.

Model Specification:

Product Grouping Containerized Purification Equipment > Reverse Osmosis
Applicatio Electronic,power,photovoltaic,beverage,medicine,middle water recycling and sea water desalination,drinking
Voltage  220V/380V, 50HZ/60HZ
Length Customized

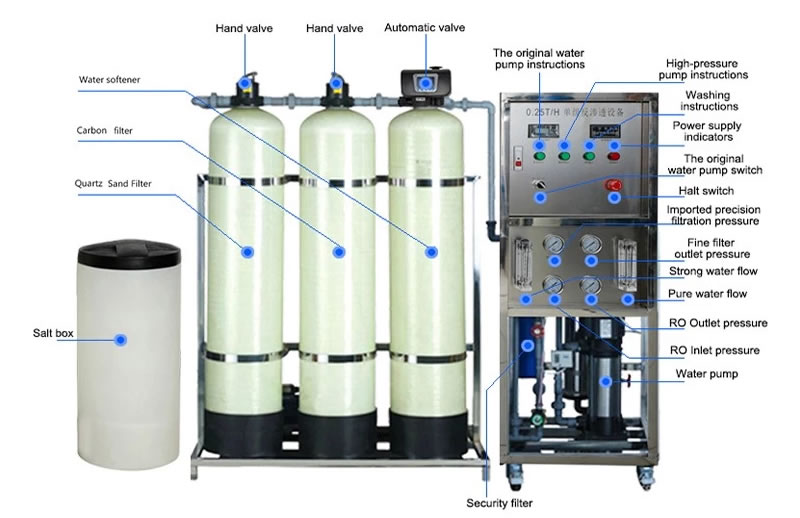

Main Features:

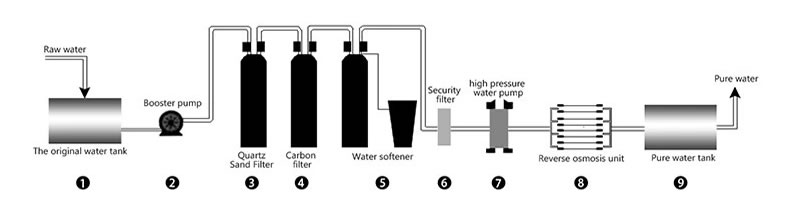

  1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
  2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect
  3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
  4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
  5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
  6. High pressure pump-- Provide the high pressure to RO membrane ro.
  7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

Industrial Drinking Water Purification RO Water Filter Production Line

Industrial Drinking Water Purification RO Water Filter Production Line
