Industrial Carbonated Beverage Mixer / Soft Drink Mixing Machine

Material:
Stainless Steel SUS304
Size:
1580*900*2050mm
Capacity:
1500Liter/h
Feature:
Easy Operation
Weight:
320kg
Function:
Mixing carbon dioxide with beverage
Power:
3000
Voltage:
220V / 380V (Customized)
Working Pressure:
0.05-0.15Mpa
Processing Types:
Carbonated Beverage
Contact Now

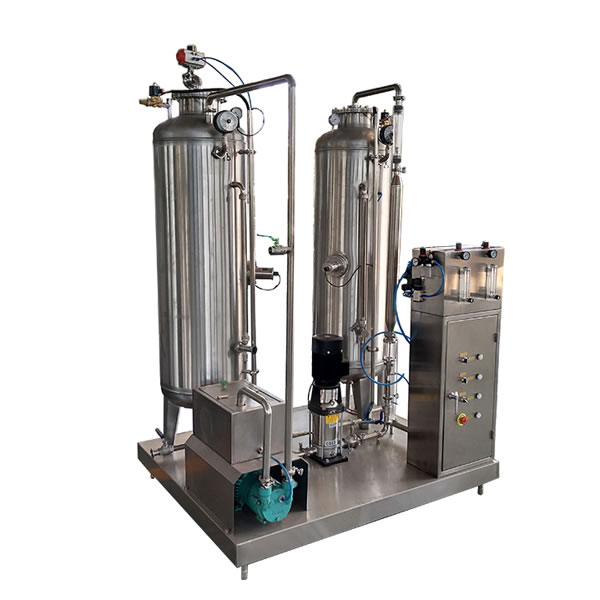

Industrial Carbonated Beverage Mixer / Soft Drink Mixing Machine

Equipment Overview : beverage mixer is the company's absorption of imported technology combined with the production of gas-containing beverages. It has developed internationally and is in a leading position among domestic similar products. The mixer is suitable for lemon, cola, juice, wine, sparkling wine and other soda, is the main equipment in the beverage production equipment.

Production capacity 1500, 3000, 6000, 8000, 15000, 20000 (LPH)
The range of syrup and water regulation 1:3-1:10
Water content  > 2.5 (CO2: H 2O volume ratio)
Chilled water inlet temperature  0-4  (℃)
Pre-carbonation tank, syrup tank working pressure  0.05 to 0.09 (M pa)
Working pressure of storage tank 0.2 to 0.5 (M pa)
Power (kw) 2.42 (1500), 3.15 (3000), 6.3 (6000), 7.85 (8000)

Features:

  1. This machine adopts the advanced technology of chemical industry--static mixer (ie carbonizer), with low resistance loss, high efficiency, low energy consumption, and adopts high-pressure pump with reliable performance and low noise to make the whole machine performance. Get protected.
  2. This machine is equipped with a deoxidizing function to make the deoxidized liquid and carbon dioxide gas better mixed, and the gas content is higher.
  3. This machine has a complete automatic control system, simple structure, continuous production and high automation.
  4. This machine is made of stainless steel 304 material, which can be chemically disinfected, heat disinfected and rinsed with water, in line with the requirements of the Food Sanitation Law。
