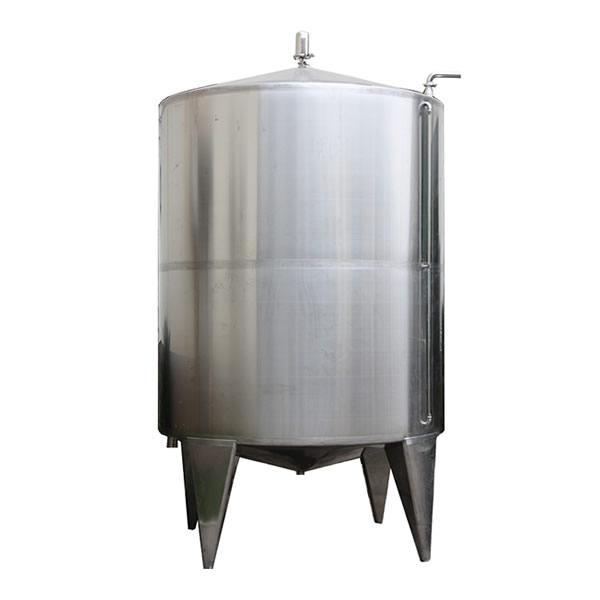

Factory Wholesale Food Grade Stainless Steel Water Tank 2000 Liter
- Material:
- Stainless Steel SUS304
- Size:
- 1450*11450*2300mm
- Capacity:
- 2000L
- Storage liquid:
- Water, wine, drink, Honey, oil
- Feature:
- Vertical storage tank
- Surface Treatment:
- Mirror Polished
- Core Components:
- The material
- Weight:
- 200kg
- Tank thickness:
- 2.5mm
- Operation:
- Easy Operation
Model Specification:
| Capacity | 100L | 300L | 500L | 1000L | 2000L | 3000L | 5000L | 10000L |
| Inner diameter size(mm) | 500 | 800 | 900 | 1100 | 1400 | 1500 | 1800 | 2100 |
| Working pressure | Designed and manufactured according to process conditions | |||||||
| Operating temperature | Designed and manufactured according to process conditions | |||||||
| structure type | Vertical, horizontal | |||||||
| Tank material | SUS304/306 Or other anti-corrosion stainless steel materials | |||||||
| Container categories | Atmospheric pressure | |||||||
Storage tank structure:
- Storage tanks are divided into vertical storage tanks and horizontal storage tanks, single-layer storage tanks, double-layer storage tanks and three-layer insulated storage tanks.
- The stainless steel storage tank equipment has reasonable design, advanced technology and automatic control. It meets the requirements of GMP standards. The tank body adopts vertical or horizontal single-layer or double-layer structure, and can be filled with insulation materials according to user requirements.
- According to the storage capacity of 50-15000L, the storage capacity is above 20000L. It is recommended to use outdoor storage tank. The material is made of SUS304 imported stainless steel.
- The storage tank has good sealing performance. The tank is equipped with the following equipment: CIP cleaning sprinkler, manhole, liquid level indicator, antibacterial breathing pore.
