Drinking Water Treatment System / Water Purification Machines / Water Treatment Plant Cost
- Material:
- FRP
- Size:
- 1950*1850*680mm
- Capacity:
- 1000-2000 liters per hour
- Weight:
- 600KG
- Treatment stag:
- 2 stage
- Pump:
- Grundfos/CNP
- Function:
- Producing pure water
- Power:
- 0.75kw
- Type:
- Reverse osmosis
Product Description:

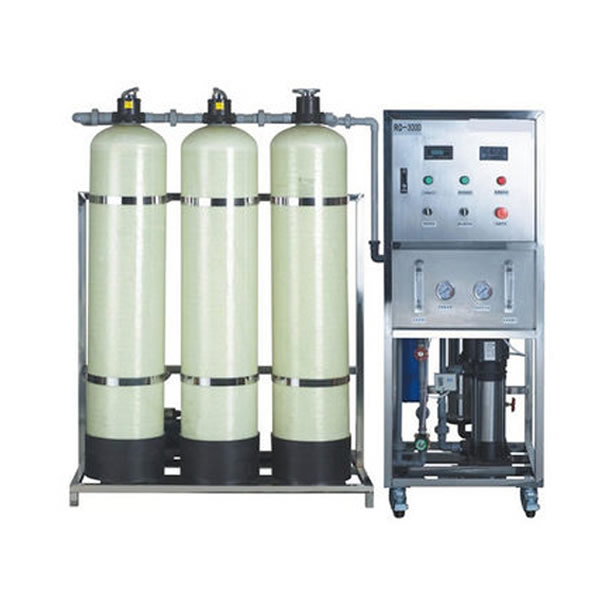

- Reverse osmosis water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
- Raw water source: Bore whole, river, well, mountain spring, lake, etc
- Raw water pump/multi pump: Nanfang, Grundfos
- Filter media: Quartz sand filter, active carbon filter, security filter
- RO Membrane: Filmtec Dow, Hydranautics.
Model Specification:
| Product Grouping | Containerized Purification Equipment > Reverse Osmosis | ||
| Applicatio | Electronic,power,photovoltaic,beverage,medicine,middle water recycling and sea water desalination,drinking | ||
| Voltage | 220V/380V, 50HZ/60HZ | ||
| Length | Customized | ||
| MOQ | 1 Set | ||
| Features | Small equipment,easy transportation | ||

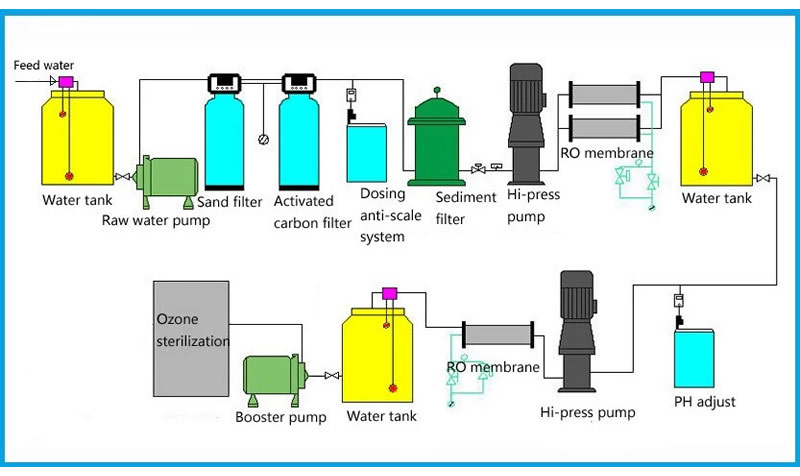

Main Features:
- Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
- Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
- Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
- Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
- Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
- High pressure pump-- Provide the high pressure to RO membrane ro.
- RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
