Automatic Water Packaging System Manufacturer Water Treatment And Bottling Plants

Material:
Stainless steel, Stainless Steel 304/316
Size:
3800*1200*1700mm
Capacity:
0.3-50T/H
Weight:
2500kg
Pump:
Grundfos/CNP
Power:
4.4kw
Voltage:
110V/220V/380V(Customized)
Membrane:
DOW/Hydecanme/TORAY
Contact Now

Product Description:

  • Reverse osmosis water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
  • Raw water source: Bore whole, river, well, mountain spring, lake, etc
  • Raw water pump/multi pump: Nanfang, Grundfos

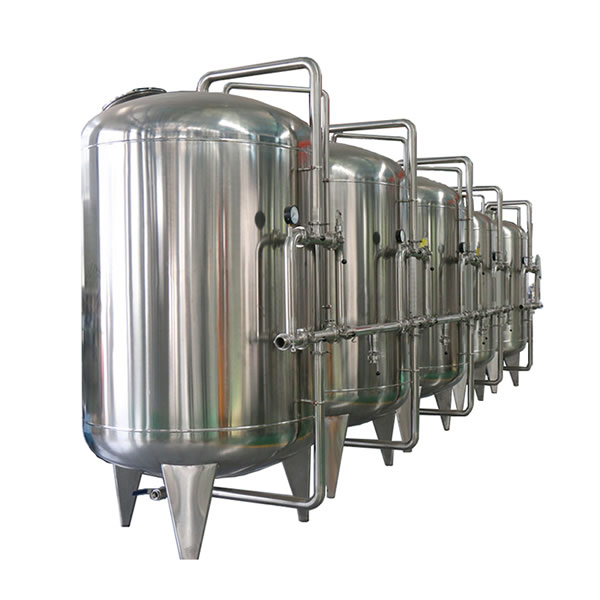

  • Filter media: Quartz sand filter, active carbon filter, security filter
  • RO Membrane: Filmtec Dow, Hydranautics

Working process:

  1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
  2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
  3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
  4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
  5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5μm.
  6. High pressure pump--Provide the high pressure to RO membrane.
  7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
