2.2kw Sanitary Steel Stainless Hygienic CIP Type Self Sucking Return Pump, Self Priming Pump
- Type:
- Self-priming Pump With Inner Recirculation
- After-sales Service:
- 12 Months Guarantee
- Warranty:
- 12 Months Guarantee
- Air Engine Type:
- Fitted Motor
- Transmission:
- Direct Connection Transmission
- Motor Power:
- 2.2kw
Basic Info.
| Rated Flow | 160L/Min | Rated Head | 20m |
| Motor Frequency | 50Hz | Rated Voltage | 380V |
| Connection | Threaded Union / Clamp / Flange | Material | AISI304 / AISI316L |
| Transport Package | Plywood | Impeller | Single Stage |
| Origin | China | Specification | 50KG |
| HS Code | 8413709990 | Production Capacity | 1000PCS/Year |
Product Description
Brief Introduction:
The self priming pump is use to pump the liquid which level is low the pump shell , cover and vane are made of high-grade stainless steel 304 or 316L;the motor is equipped with stainless steel shield, inner surface adopts mirror polishing ,Ra0.4um.
The pumps are used in the food-processing and pharmaceutical, beer, dairy, milk industries.Some of its uses include processes in the brewing, dairy and beverage industries, and with the appropriate options it can also be used in complex applications such as:Evaporators, concentration, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
BasicSpecification:
| Motor Power | 1.5KW~18.5KW |
| Rated Flow | 5~60T/H (80~1000L/min) |
| Rated Head | 18~45m |
| Working Temperature | -10ºC~140ºC |
| Inlet Diameter | Φ38~Φ89 (mm) |
| Outlet Diameter | Φ38~Φ89 (mm) |
| Voltage | AC220~240V, AC380~420V, 50/60Hz custom |
| Motor | ABB Motor |
| Connection | ISO ferrule joint, threaded union, flange |
| Inner Surface | Mirror polishing Ra0.4 |
| Material | AISI 304, AISI 316L |
Attention

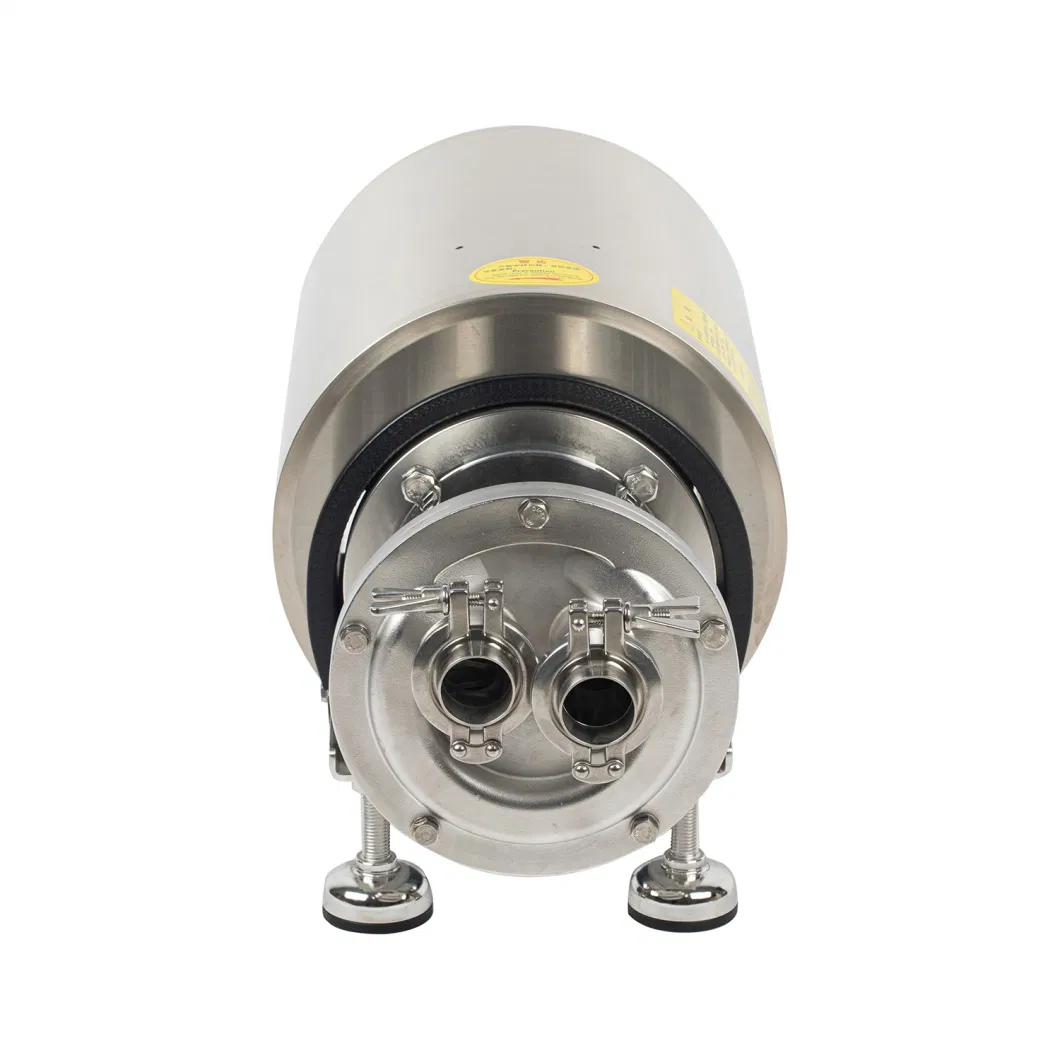

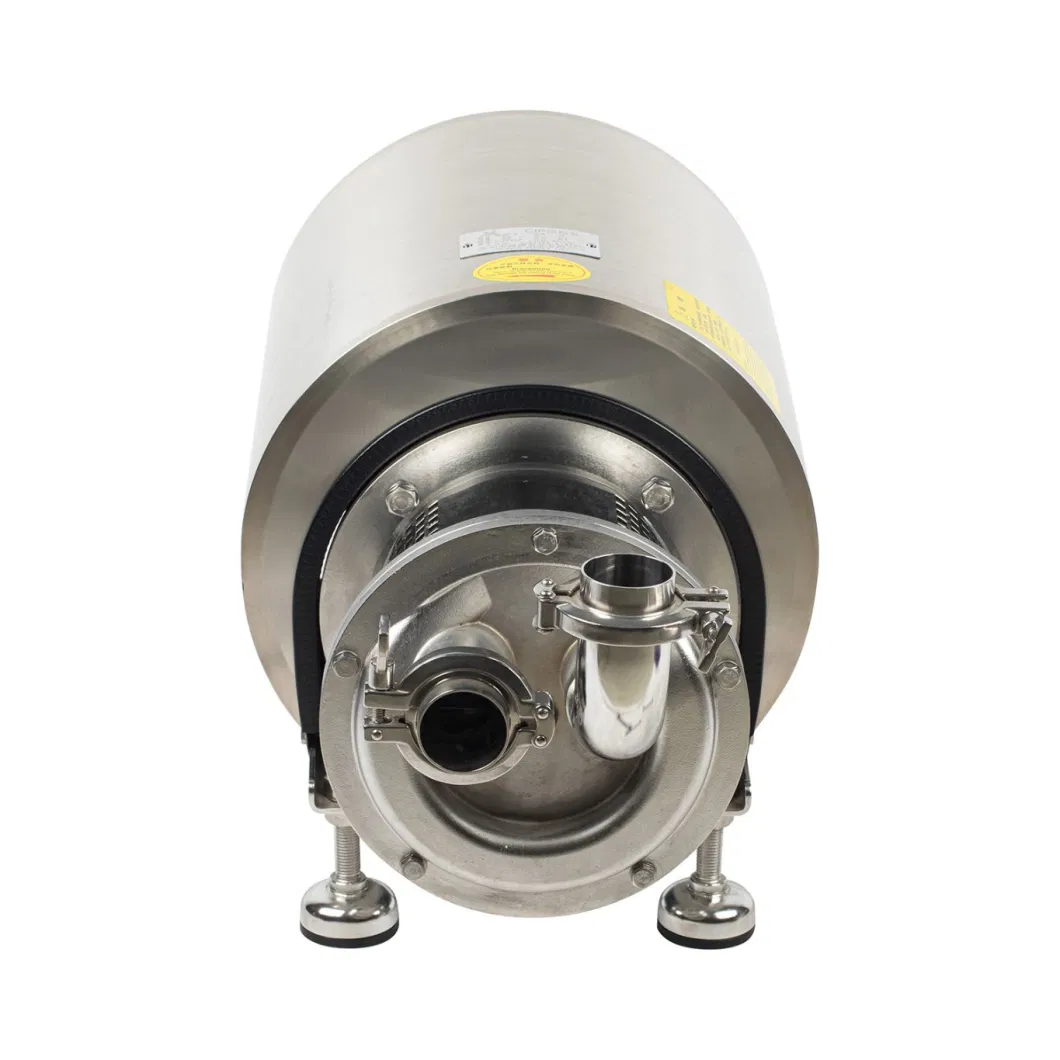

Our SLRP provides two pump heads, the first has two parallel pipes and the second has one end bent upwards. These two types of heads are only available for 5T-20T flow types. Please confirm with us in advance if you have any special needs.
