Self-Priming Pump
Self-Priming Pump

Products

18.5kw Sanitary Steel Stainless Hygienic CIP Type Self Sucking Return Pump, Self Priming Pump

Type:
Self-priming Pump With Inner Recirculation
After-sales Service:
12 Months Guarantee
Warranty:
12 Months Guarantee
Air Engine Type:
Fitted Motor
Transmission:
Direct Connection Transmission
Motor Power:
18.5kw
Contact Now

Basic Info.

Rated Flow 1000L/Min Rated Head 45m
Motor Frequency 50Hz Rated Voltage 380V
Connection Threaded Union / Clamp / Flange Material AISI304 / AISI316L
Transport Package Plywood Impeller Single Stage
Origin China Specification 210KG
HS Code 8413709990 Production Capacity 1000PCS/Year

Product Description

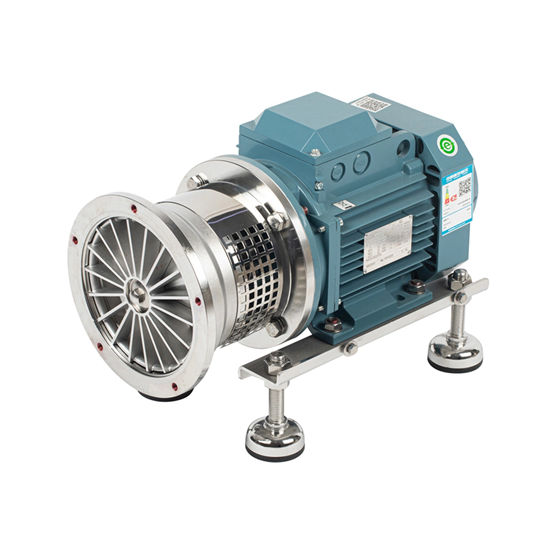

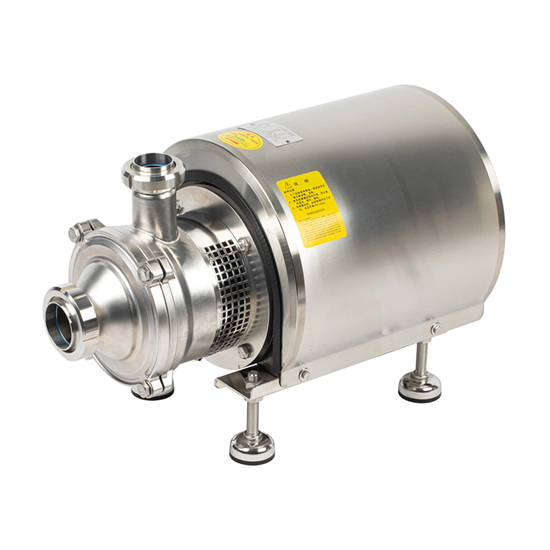

18.5kw Sanitary Steel Stainless Hygienic CIP Type Self Sucking Return Pump, Self Priming Pump
Brief Introduction:
    The self priming pump is use to pump the liquid which level is low the pump shell , cover and vane are made of high-grade stainless steel 304 or 316L;the motor is equipped with stainless steel shield, inner surface adopts mirror polishing ,Ra0.4um.
    The pumps are used in the food-processing and pharmaceutical, beer, dairy, milk industries.Some of its uses include processes in the brewing, dairy and beverage industries, and with the appropriate options it can also be used in complex applications such as:Evaporators, concentration, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.

BasicSpecification:

Motor Power 1.5KW~18.5KW
Rated Flow 5~60T/H (80~1000L/min)
Rated Head 18~45m
Working Temperature -10ºC~140ºC
Inlet Diameter Φ38~Φ89 (mm)
Outlet Diameter Φ38~Φ89 (mm)
Voltage AC220~240V, AC380~420V, 50/60Hz custom
Connection ISO ferrule joint, threaded union, flange
Inner Surface Mirror polishing Ra0.4
Material AISI 304, AISI 316L


Attention

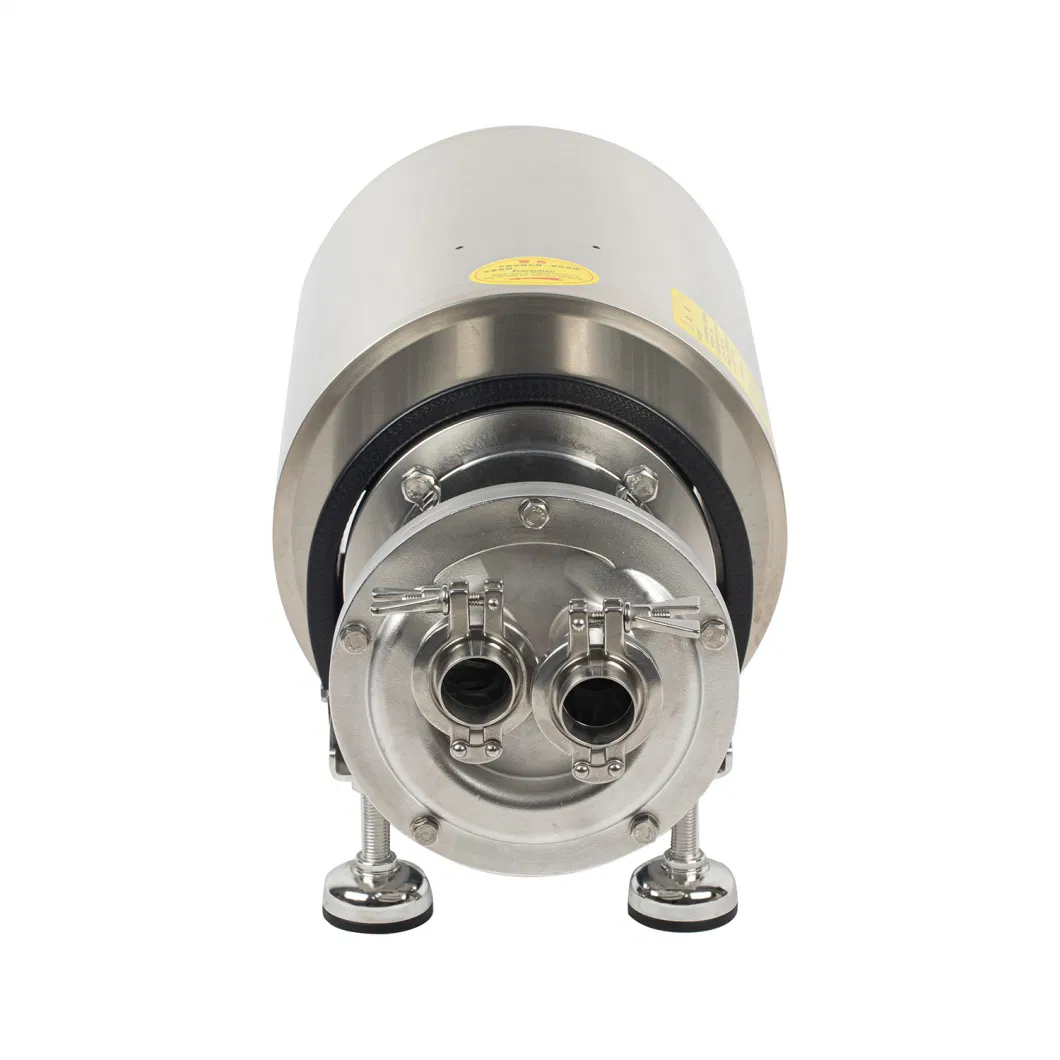

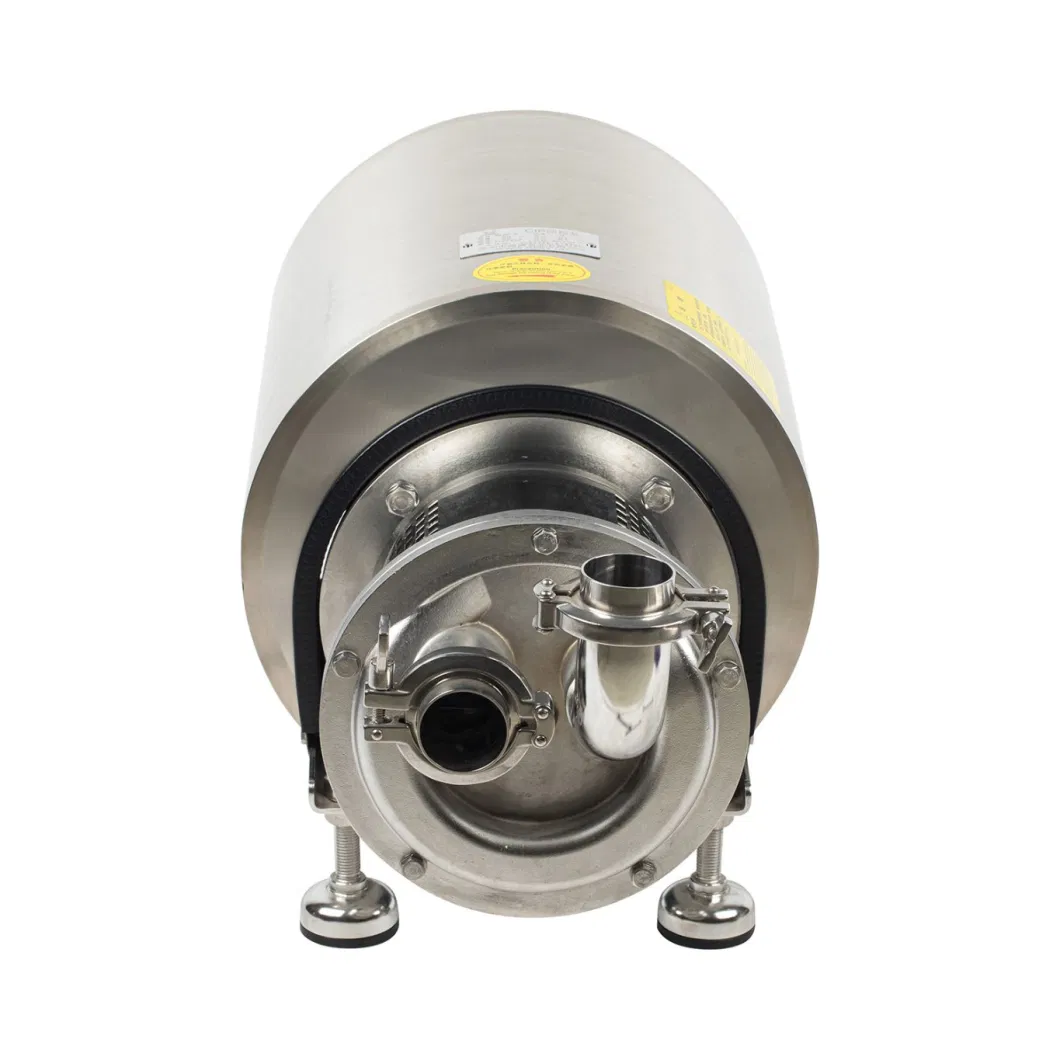

    Our SLRP provides two pump heads, the first has two parallel pipes and the second has  one end bent upwards. These two types of heads are only available for 5T-20T flow types. Please confirm with us in advance if you have any special needs.
