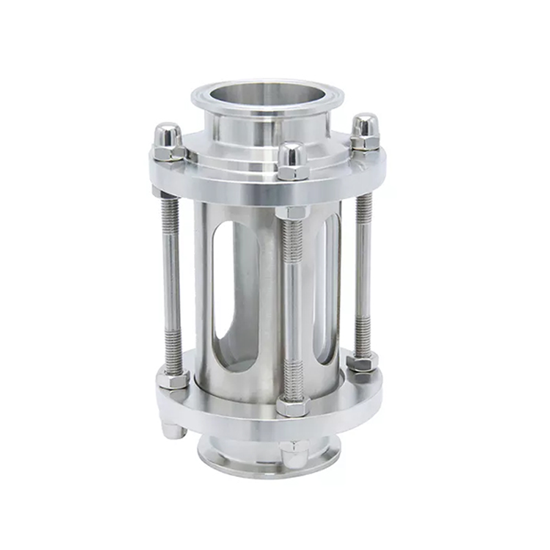

Stainless Steel Sanitary Grade Inline Clamping Sight Glass
- Place of Origin:
- Wenzhou, China
It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.Sanitary Straight Sight Glass allows observation of fluids in transit through a three-dimensional pipeline
| Availably standard | SMS,DIN,3A,IDF,RJT, BS, ISO |
| Material Quality | SS304,SS304L,SS316,SS316L |
| Specification | DN150 |
| Availabe Connection | Welding ends,triclamp ends,union ends,male ends |
| Seal Material | Silicone, EPDM, Viton, NBR |
| Glass | Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan) Tubing; Acrylic Tubing; etc |
| Protection Lens Cover | Polycarbonate Tubing,Acrylic Tubing or Slotted Stainless Steel |
| Screw Blot | Full Stainless Steel |
| Structure | Straight way,cross |
| Pressure range | 0bar~10bar |
| Machine Processing | The most advanced CNC machine from Japan for processing |
| Continuous working temperature | 20°C ~ +135°C (EPDM,Silicone) |
| Special Design | we can produce according to your drawings |
