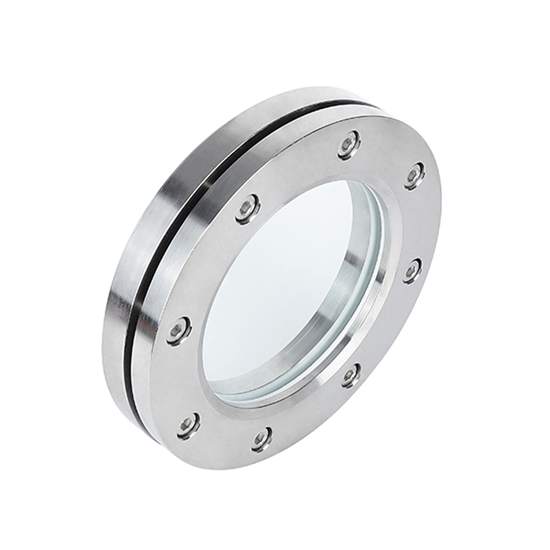

Sanitary Stainless Steel Union Sight Glass With Flange

Material:
304(1.4301) 316L(1.4404)
Pressure:
Vacuum 10bar
Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
10000 Piece/Pieces per Month
Payment:
T/T, L/C, Western Union
Connection:
Welding
Temperature:
-10℃ to 150℃, Union+lighting -10℃ to 80℃
Contact Now

Sanitary Stainless Steel Union Sight Glass With Flange

  • We can supply Sanitary Welded Sight Glass, Hygienic Clamped Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light, Sanitary Sight Glass With Net.
  • Sanitary sight glass is designed for sanitary applications required in food, dairy, and pharmaceutical industries.
  • It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.

Product Description

Availably standard SMS,DIN,3A,IDF,RJT, BS, ISO
Material Quality SS304,SS304L,SS316,SS316L
Specification DN150
Availabe Connection Welding ends,triclamp ends,union ends,male ends
Seal Material Silicone, EPDM, Viton, NBR
Glass Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan)
Tubing; Acrylic Tubing; etc
Protection Lens Cover Polycarbonate  Tubing,Acrylic Tubing or Slotted Stainless Steel
Screw Blot Full Stainless Steel
Structure Straight way,cross
Pressure range 1bar~10bar
Machine Processing The most advanced CNC machine from Japan for processing
Continuous working temperature 20°C ~ +135°C (EPDM,Silicone)
Special Design we can produce according to your drawings
