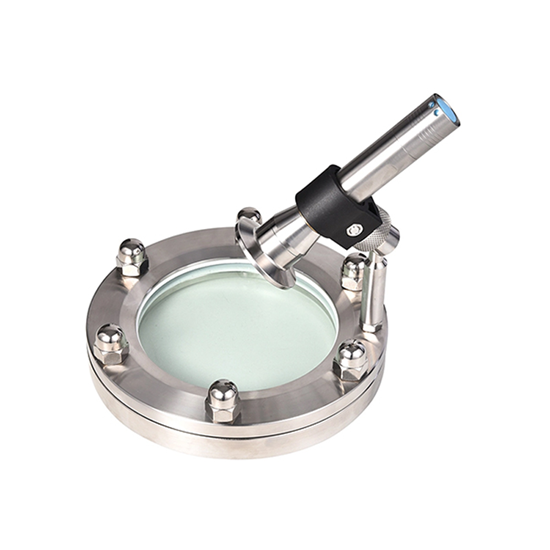

Sanitary Stainless Steel Flange Type Weld Sight Glass

Material:
SS304,SS316L
Type:
Union Type
Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
1000 Piece/Pieces per Month
Payment:
T/T, L/C, Western Union
Connection:
Welding
Specification:
DN25-150&1"-6"
Contact Now

Sanitary Stainless Steel Flange Type Sight Glass

  • We manufacture Sanitary Falnge Type Sight Glass, Sanitary Welding Sight Glass, Hygienic Clamped Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Lamp.
  • Sanitary sight glass is designed for sanitary applications required in food, dairy, and pharmaceutical industries.
  • It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.

Product Description

Availably standard SMS,DIN,3A,IDF,RJT, BS, ISO
Material Quality SS304,SS304L,SS316,SS316L
Specification 1"~4"
Seal Material Silicone, EPDM, Viton, NBR
Glass Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan)
Tubing; Acrylic Tubing; etc
Protection Lens Cover Polycarbonate  Tubing,Acrylic Tubing or Slotted Stainless Steel
Screw Blot Full Stainless Steel
Structure Straight way,cross
Pressure range 1bar~10bar
Machine Processing The most advanced CNC machine from Japan for processing
Continuous working temperature 20°C ~ +135°C (EPDM,Silicone)
Special Design we can produce according to your drawings
