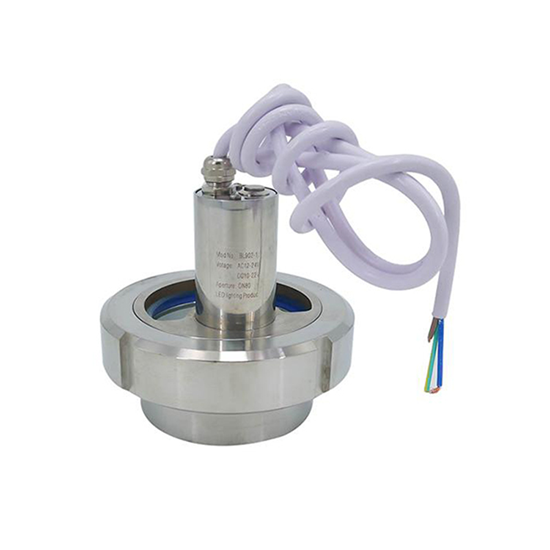

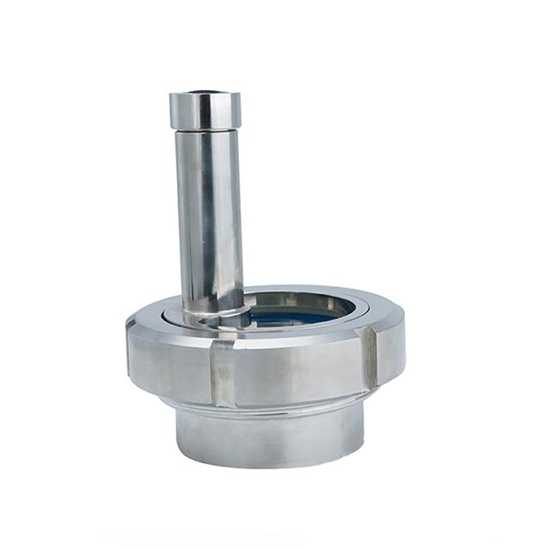

Sanitary Stainless Steel Electricity LED Light Sight Glass

Material:
SS304, SS316L
Size:
1"-4"/ DN25 - DN100
Place of Origin:
Wenzhou, China
Connection:
Welding,Clamp,Thread,Bolted
Standard or Nonstandard:
3A DIN SMS
Contact Now

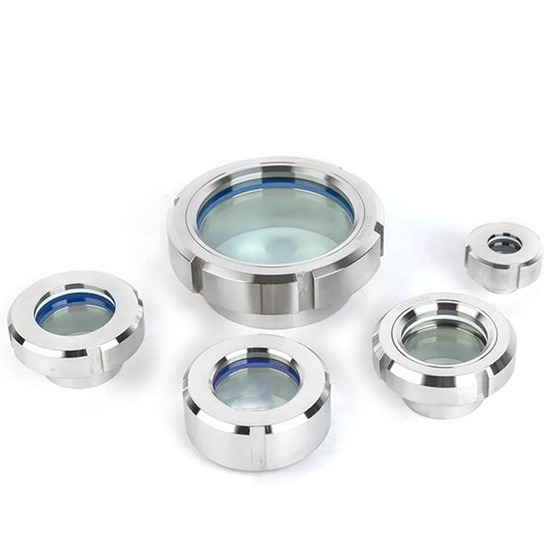

The sight glass is used to install the top of tank, it can observe the flow and reaction of liquid, gas and steam in the tank at any time, so as to monitor production and avoid accidents during production.

Connection Way Welding,Clamp,Thread,Bolted
Material SS304 SS316L
Shape Round
Size  1"-4"/ DN25 - DN100
Standard 3A DIN SMS
Technics Forged
Temperature Range -10 Degree Celsius~120 Degree Celsius

Applications:

The sight glass is used to install the top of tank, it can observe the flow and reaction of liquid, gas and steam in the tank at any time, so as to monitor production and avoid accidents during production.

Work Princple:

Sanitary sight glass made of standard stainless steel 304. 316L material. The whole is mirror polish. No dead ends. Easy to clean and hygienic. It is suitable for clean pipelines in places with strict requirements for food, industry, beer and beverage, and biopharmaceutical engineering. There can be no residual breeding bacteria during use. The working principle is the same as that of ordinary sight glasses.and it can be used in chemical towers with high temperature, strong corrosion, easy poisoning, greater danger, and easy crystallization to ensure its safe production.

The structure is roughly divided into three parts, mainly composed of sight glass bottom plate, sight glass, valve components and so on.

Sanitary pipeline sight glass has the following advantages:

The operation is simple and quick, and it also has good flow adjustment function and closing sealing characteristics. The sight glass is the dominant sight glass in the application field of large and medium caliber and medium and low pressure.

In addition using electronic polishing, smooth surface to ensure clean, no medium accumulation area, will not produce potential pollution. The maximum working pressure is 25kgf/cm2, and the medium temperature is 0-200 degrees Celsius
