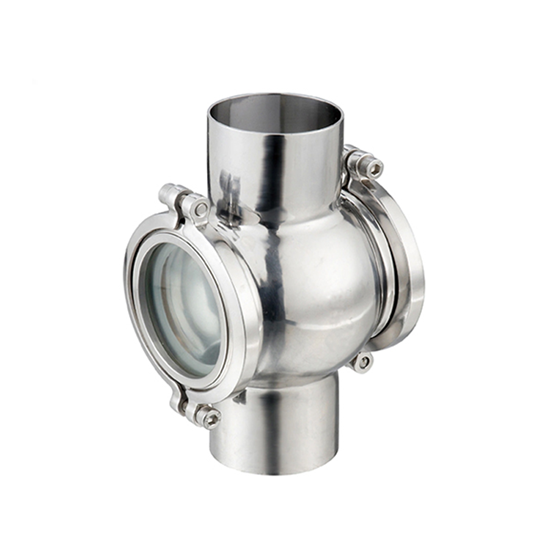

Sanitary Stainless Steel Cross Type Welding Sight Glass With Light
- Material:
- SS304, SS316L
- Place of Origin:
- Wenzhou, China
- Packing:
- Suitable Packing for Sea/Air Transport
- Quantity:
- 1000 Piece/Pieces per Month
- Payment:
- T/T, L/C, Western Union
- Connection:
- Welding
- Glass:
- Tempered Glass
- Protective sleeve:
- AISI 304, AISI316L
- Medium:
- Water
- Gasket:
- VMQ FDA 177.2600
- Surface treatment:
- CNC lathe
Sanitary Stainless Steel Cross Type Welding Sight Glass With Light
- We can supply Sanitary Welding Sight Glass, Hygienic Tri Clover Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Cross Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light.
- The hygienic sight glass products are made by forged material.
- Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.
- Screw Blot: Full Stainless Steel. EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries.
- It is necessary you specify at the time when orders be placing if heat numbers and MT"s are required.
Product Description
| Product Name: | Cross Sight Glass |
| Material: | SS304 or SS316L |
| Standard: | 3A, SMS, DIN, RJT, IDF |
| Size: | 1"-4" or DN25-DN100 |
| Connection Way: | Weld, Clamp, Thread, Flange or Combinations |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Treatment: | CNC machining |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Application: | Food,wine-produceing,beverage and pharmacy,etc. |
| Packing Details: | Carton box or plywood case |
