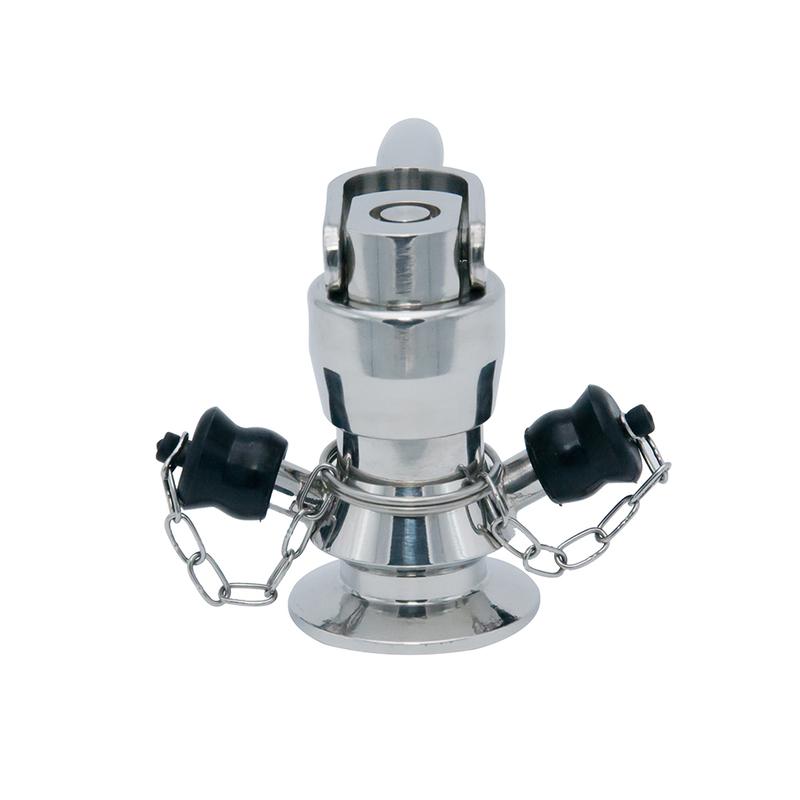

Aseptic sampling valves mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to frain away the remains. The material only has SS316L, and sizes have DN10(welding 30mm), DN10(welding 50.5mm), DN10(welding 25.4mm). Connections ends have welding, tri clover. Valves head designs Rubber Seal.

Applications

It 's mainly applied to extract sample from tank or pipeline. it also can be assembled at the bottom of the tank or pipeline to frain away the remains.

Design and features

♦ Available steam or alcohol for fisintection of the oringinal.

♦ Use the diaphragm to seal the material.

♦ It is typical sampling and good repeatability to sample.

♦ Use this type valve, secondary pollution can be prevented, can be used as a large number of sampling or mirco-sampling.

Working Principle:

SGK Series of sterile sampling valves with rubber seal, divide into the handle quick-opening type, handle wheel fine-turning type, pneumatic and hand-gas integrated four open mode. With spring automatic reset function, lift the handle or turn the hand wheel synchronous poppet, so that the diaphragm valve head from the sealing port to open the valve sampling, put down the handle and the opposite direction of rotation of the hand wheel is a vacant state, the spring automatically close the valves.
