Stainless Steel Sanitary Clamped Sampling Valve

Material:
SS304, SS316L
Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
10000 PCS Per Year
Payment:
T/T, L/C, Western Union
Connection:
Clamped
Contact Now

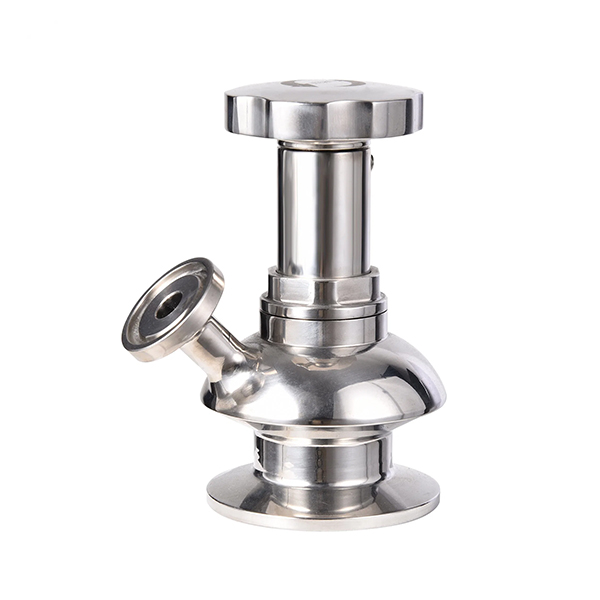

Stainless Steel Sanitary Clamped Sampling Valve

  • We manufacture Sanitary Tri Clover Aseptic Sample Valve, Hygienic Welded Sampling Valve, Sanitary Pneumatic Aseptic Sampling Valve, Manual Aseptic Sample Valve.
  • A Sampling Valve is a type of valve used in process industries that allows taking a representative portion of a fluid ( gases, liquids, fluidized, solids, or slurries ) to test (e.g. by physical measurements, chemical analysis, microbiological examination), typically for the purposes of identification, quality control, or regulatory assessment. It is a valve used for sampling .
  • The Sampling Valve allows the operator to extract a sample of the product from the production line or reactor and safely store it for transportation to the laboratory where it will be analysed or to the archive room where it can be retrieved for further use.
  • In chemical plants, a sample can be taken during the process to ensure that the output meets specifications (or that the quality is acceptable), before shipping the chemical good or before accepting the chemical product.

Product Description

Product Name: Sanitary stainless steel sampling valve
Valve Body Material: SS304, SS316L
Seal Material: PTFE
Max. Working Pressure: 6Bar
Max. Working Temperature: 120 degree C
Availably connection: Clamped
Operated: Manual
