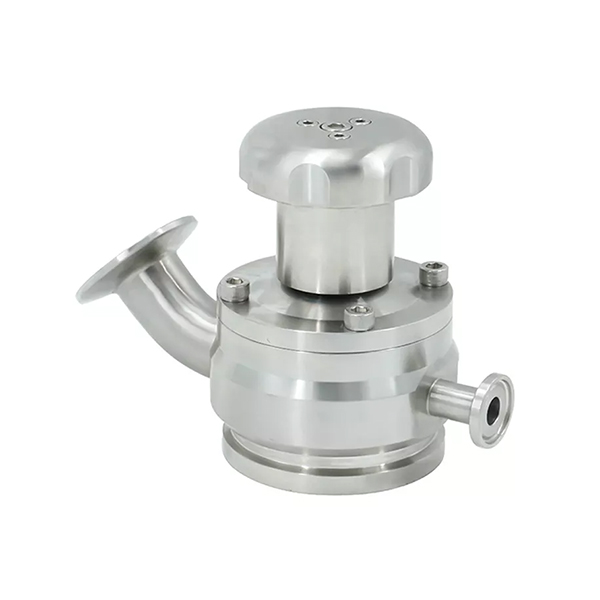

Sanitary Stainless Steel Sample Valves mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.It is apply for the food, chemical, pharmaceutical, cosmetics and biotechnology industries. As well as all other sectors requiring sanitary type equipment..
| Material of Product Wetted | 316L (DIN-1.4404) |
| Material of Non-product Wetted | 304 (DIN-1.4301) |
| Seal material | PTFE/Silicone,PTFE/FPM (PV-1),PTFE (PV-2) |
| Seal material | All seal materials comply with FDA 177.2600. |
| Continuous working temperature | -20oC +135oC (EPDM) |
| Sterilization temperature | 150oC (Max 20min) |
| Working pressure | 0~10bar |
| Internal surface | Ra0.8μm |
| External surface | Shot blasting |
| Size | -1/2" 3/4" |
| Surface Treatment | Inner Surface Treatment |
| External Surface Treatment | |
| Advantage | 1. Sanitary condition passed FDA Certification |
| 2. With strong resistance to acid, alkali and high temperature | |
| 3. Slight deformation under long-term compression presicion forging valve cartridge. Withstand voltages | |
| 4. Appearance desigh: Keep pace with international latest designs | |
| 5. Service life: Comparable to imported Sample valve, with 18months warrenty for normal use |
