Sanitary Stainless Steel Clamped Safety Valve

Material:
SS304, SS316L
Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
10000 PCS Per Year
Payment:
T/T, L/C, Western Union
Connection:
Clamped
Contact Now

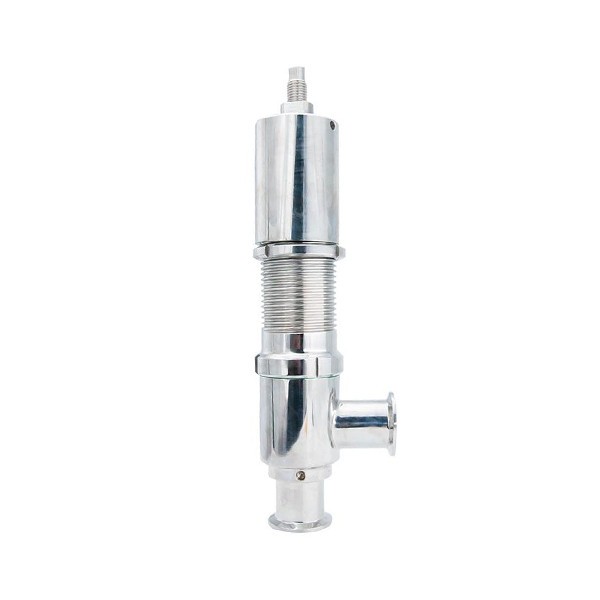

Sanitary Stainless Steel Clamped Safety Valve

  • The Safety Valve is used to protect pipe, pump from over pressure.
  • Sanitary Pressure Release Valve is normally closed. The Pressure is set by calibrating the spring with nut. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.

Product Description

Working Pressure: ≤6bar
Pressure Control Range: 0.5-6 bar
Medium Temperature: -10 celsius degree-+120 celsius degree
Medium: liquid material,gas
Sealing: Food Rubber
Material Quality: SS304,SS316L
Connection of Standard: DIN,3A,SMS,ISO
Ends: Male ends,Tri clamp ends,Welded ends
Surface treatment: Ra 0.8um
