101.6mm Hex Pipe Support with Sanitary Material
- Material:
- Stainless steel 304
- Place of Origin:
- Wenzhou, China
- Connection:
- Clamp (quick), welding (welding) type, thread type (Union type).

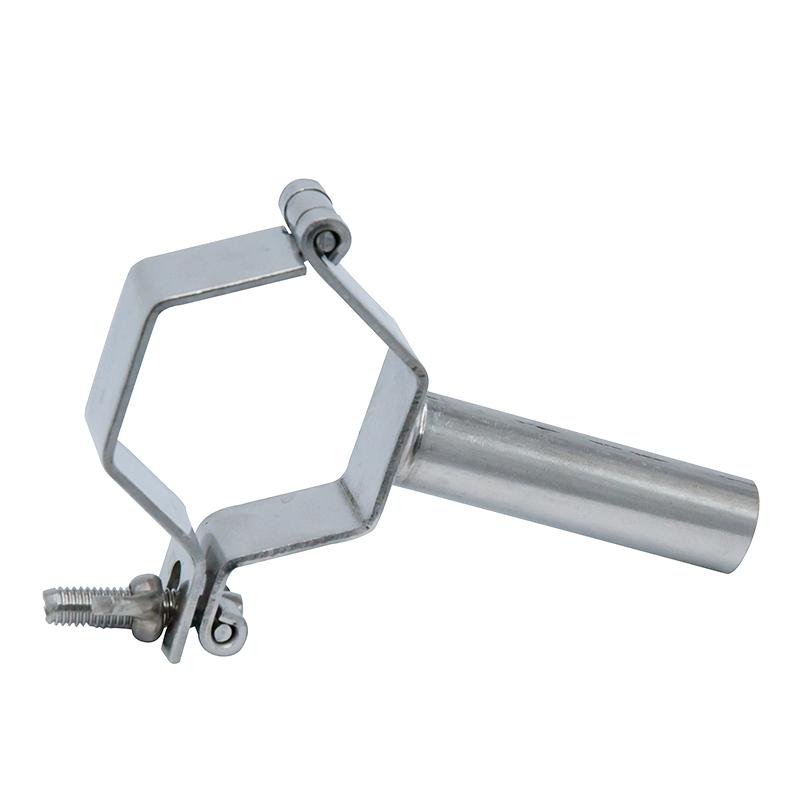

Sanitary Pipe Hanger is holder to support pipe in the process system. Sanitary Pipe Hanger made in stainless steel 304 and 316 or specified material, with various types and design to meet different pressure and usage.
Compass offers pipe hanger through 1/2″ to 12″, with standard 3A, DIN, SMS, BS, ISO, IDF, DS, BPF, I-Line etc. The sanitary pipe hanger and holder could be fabricated as per client’s requirement and drawing.
| Standard size | SMS, ISO, 3A, |
| inner surface of mechanical polishing | Ra≤0.4--0.8μm |
| outer surface of the light | Ra≤0.8μm |
| Connection | Clamp (quick), welding (welding) type, thread type (Union type). |
| Material | Stainless steel 304, |
| Control diameter | DIN standard (DN10-DN150), 3A/IDF ("-6 1/2" (ISO), the standard diameter of 12.7- with 152.4); |
| Manufacturing process | The use of numerical control machine tool precision manufacturing, precision and internal polishing, to meet the surface precision requirements; feed the use of strict quality inspection system, to ensure product quality. |
| Shape of Surface | Round,Hexagon |
| Material Availabe | Stainless Steel |
| Product packing | Carton or wooden box, anti - shock film packaging |
