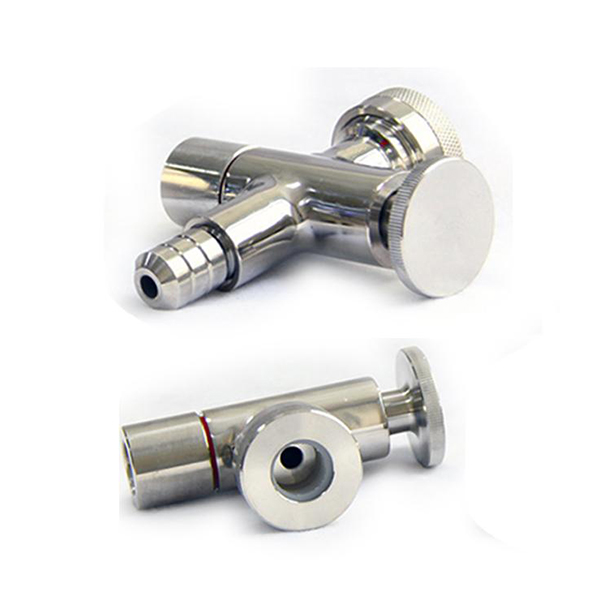

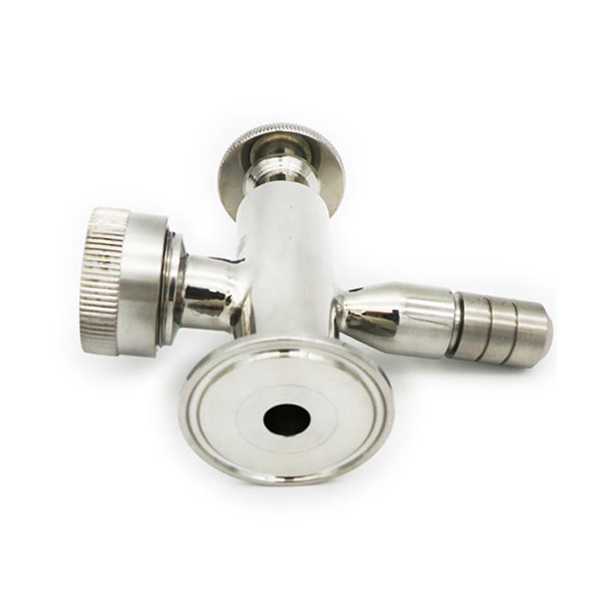

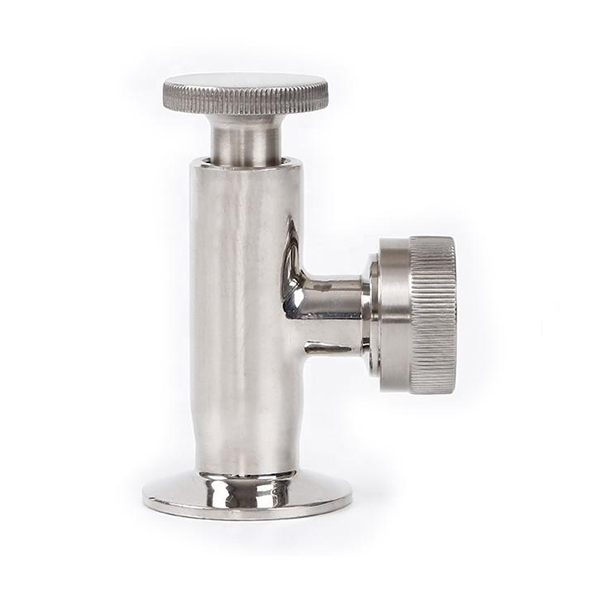

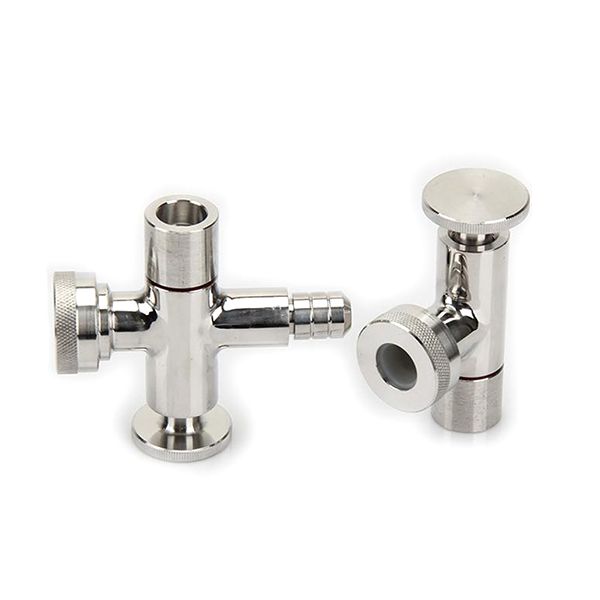

Sanitary Stainless Steel Tank Liquid Water Level Gauge

Material:
SS304 SS316L
Size:
1"-4"/ DN25 - DN100
Pressure:
Low Pressure
Place of Origin:
Wenzhou, China
Connection:
Clamp,Thread
Contact Now

The level gauge is mainly applied to tank equipments. The two same gauges o rtwo different gauges ar assembled on the tank so that the liquid condition or capacity can be observed and the sample can be extrated.

Connection Way Clamp,Thread
Material SS304 SS316L
Shape Round
Size  1"-4"/ DN25 - DN100
Pressure Low Pressure
Media Water, Oil
Temperature Range -10 Degree Celsius~120 Degree Celsius

Applications:

Glass tube liquid level gauge and is called liquid level valve, is a kind of liquid level measuring instrument, which is mainly installed in the tank, so as to observe the flow of liquid in the tank. It is suitable for the industrial production process of the liquid position of the general storage equipment in the field test, the structure is simple, accurate measurement, is a traditional measurement tools. By welding the quick assembly of the container, and the container, through the glass tube, the liquid level height of the container is directly displayed.
