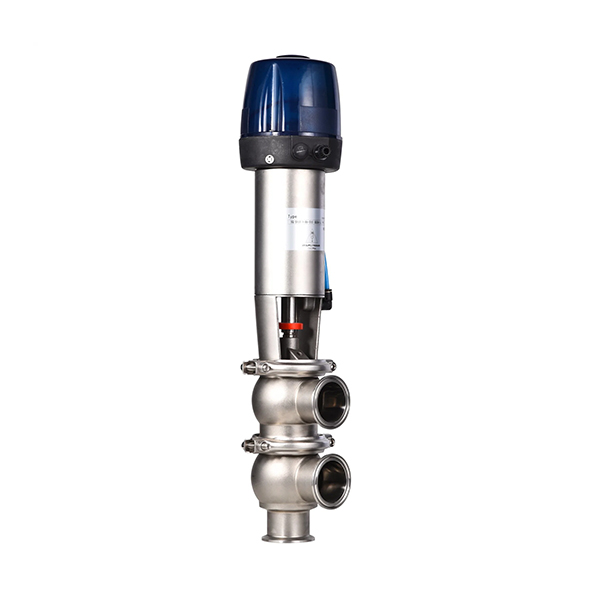

Sanitary Stainless Steel Pneumatic Welding Divert Valve
- Material:
- SS304/SS316L
- Type:
- Pneumatic
- Place of Origin:
- Wenzhou, China
- Packing:
- Suitable Packing for Sea/Air Transport
- Quantity:
- 1000 Piece/Pieces per Month
- Payment:
- T/T, L/C, Western Union
- Connection:
- Welding
- Shape:
- LL Type
- Medium:
- Water, Oil
- Specification:
- 1 1/2"-4"
- Gasket:
- PTFE, EPDM, NBR
Sanitary Stainless Steel Pneumatic Welding Divert Valve
- We can supply Sanitary T Type Divert Valve, Hygienic L Type Pneumatic Divert Valve, Sanitary LL Type Reversing Valve, Sanitary Manual Divert Valve.
- The series of valve are major let the medium reach the purpose of reversing or end stop, because the good sealablity and cleanability, they are extensively use to different sanitary industry areas.
- The series of pneumatic cut-off reversing valve change the energy which process by compressed air to the mechanical energy, the mechanical energy can drive the valve rod axial moving, thus move the different location of seal elements, which can control the switch for inlet of pipeline, finally realise the purpose of medium reversing or stop.
- The manual cut-off reversing valve series control by handle, also reach the purpose of medium reversing or stop at the end.
Product Description
| Material quality: | AISI304, AISI304L, AISI316, AISI316 |
| Size: | 1 1/2"-4" |
| Standards: | DIN, SMS, ISO, IDF, RJT, 3A, etc |
| Connection end: | threaded,welded,clamped |
| Types: | L, T, LL, LT,TL,TT |
