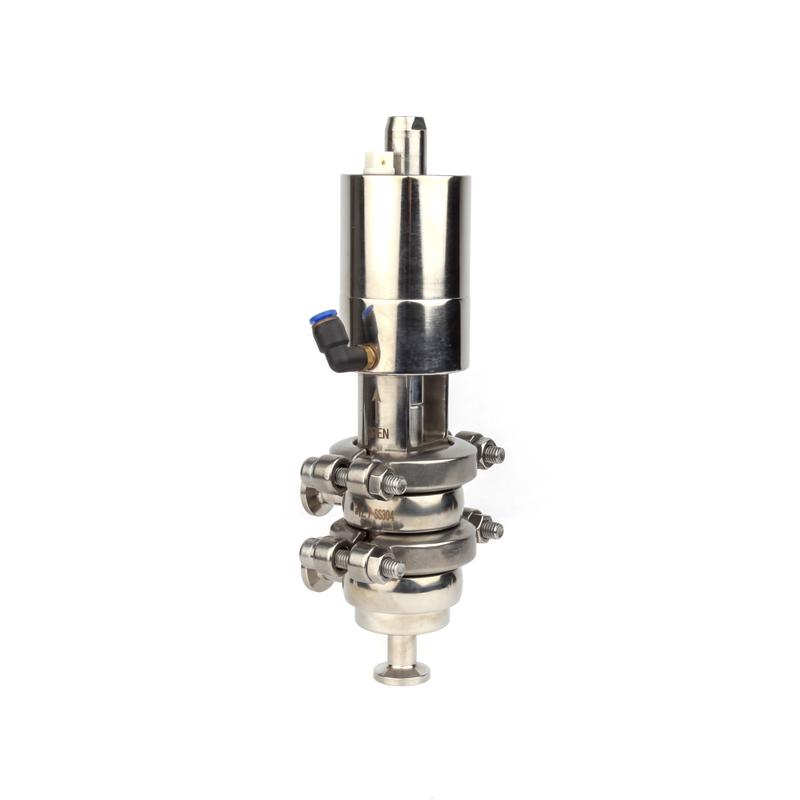

Sanitary Diverter Valves, no matter manual or pneumatic or intelligent, which is widely used in food, beer, milk, dairy, pharmaceutical, biological, chemical industrial. Sanitary butterfly valves are made from stainless steel SS304 and SS316L. The available sizes includes of 1/2"- 4", DN15-DN100. Standard have SMS,DIN,3A,ISO,RJT and so on. Meanwhile, Sanitary Diverter Valves' connection have different types, such as weld, clamp, thread, ect. MINGHE can produce Sanitary Diverter Valves as per customers' design drawing and requirement.

Application:

The series of sanitary hygienic diverter valves makes major medium reaching the purpose of revising or end stop, because the good sealability and cleanability, they are extensively use different sanitary industry areas.

Standard design:

Various standards of valves can be provided: DIN, 3A, SMS, ASME, BPE.

The series of stainless steel hygienic flow division valves have two types valves, including of cut-off type and reversing types. The cut-off type can be made of two or three pipeline connector. The reversing type can be made of three to five pipeline connector. Their variety fully satisfied the demands of market.

Advantages:

• Hygienic satinelss steel diverter valves have more safety,cleanliness, durability, and aesthetics.
• With open bracket, the actuator body was dissociated, you can check the shaft seal directly. The design maks the transmission and product are partially seperated to prevent heat transfer from the body ro the actuator.
• The condition " NO" and " NC" can be change instantly.
• The spherical body has the ideal flowability and cleaning properities. Meanwhile, the treatment of material is more moderate.
• The standard valve design makes the coupling combination has a high degree of spirit activity and diversity.
• Metal stop ensures longer seal life.
• Fast and convenient assembly and maintenance operations.

Material:

Contant part between product and medium SS304 and SS316L

Sealing material: standard configuration EPDM, Viton(FKM), Buna are availble and selection.

Surface treatment:

External part: Sandblasting treatment Ra≤ 1.6um, Matte finish Ra≤ 0.6um.

Internal part: Polishing Ra≤ 0.6um

Quality requirement for compressed air used in actuator:

Compressed air connection: Furnish air pipe with air connector R1/8"

Maximum particle size: 0.01mm

Maximum oil content: 0.08ppm

Dew point: 10℃ or lower below atmospheric temparture

Maximum water content: 7.5g/kg
