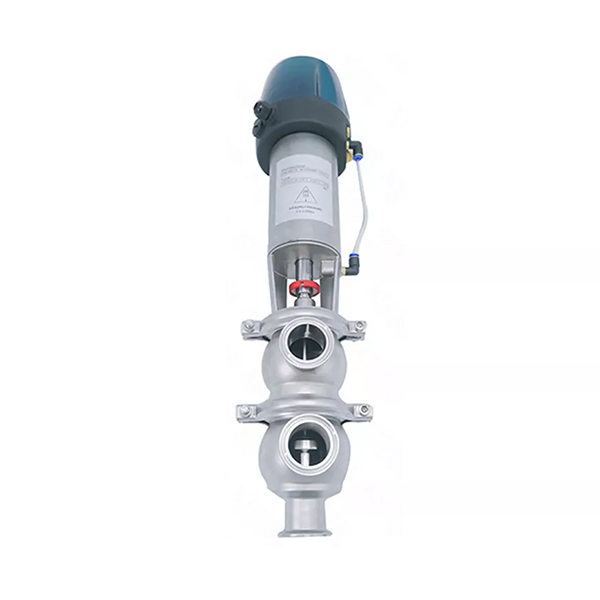

3A Sanitary LL Type Divert Seat Valve with Contarl Head
- Size:
- order according to users' request.
- Place of Origin:
- Wenzhou, China
- Standard or Nonstandard:
- ISO, 3A, DIN,SMS,IDF,RJT
This type of valve can be operated by pneumatic actuator,electric actuator,intelligent control head and manual operation.There are a variety of standards provided to customers,such as,DIN,SMS,3A,ISO,RJT,and so on
| Standard | ISO, 3A, DIN,SMS,IDF,RJT |
| Flow Medium Parts | 304, 304L, 316,316L |
| Port Size | Dn10-150 or 1/2"-150 and 12.7mm-152.4mm |
| Way of Connection | Weld, Male, Clamp, Flange |
| Gasket for butterfly valve | Silicone, EPDM, Viton, NBR |
| Application | It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc |
| Working principle | Remote-controlled operation by the driving gear or manual operation by handle. |
| Three drive forms | Normally closed, normally opened and opened and closed by two air flues seperately. |
| Handle | Metal handle, reinforced nylon handle |
| Handle | Metal handle, reinforced nylon handle |
| Size | order according to users' request. |
| Surface Treatment | Inner Surface Treatment |
| External Surface Treatment | |
| Advantage | 1. Sanitary condition passed FDA Certification |
| 2. With strong resistance to acid, alkali and high temperature | |
| 3. Slight deformation under long-term compression presicion forging valve cartridge. Withstand voltages | |
| 4. Appearance desigh: Keep pace with international latest designs | |
| 5. Service life: Comparable to imported Sample valve, with 18months warrenty for normal use |
