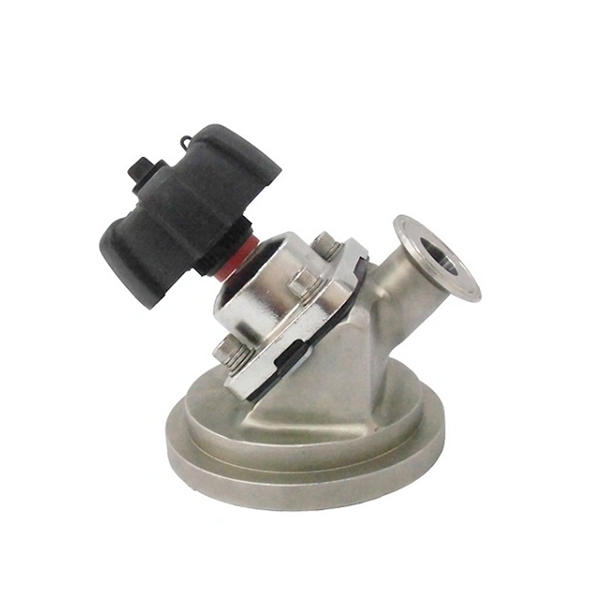

Stainless Steel Sanitary Tank Bottom Diaphragm Valve

Material:
SS304, SS316L
Type:
Manual
Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
10000 PCS Per Year
Payment:
T/T, L/C, Western Union
Contact Now

Stainless Steel Sanitary Tank Bottom Diaphragm Valve

  • The sanitary tank bottom (tank outlet) valve is widely used for Medical and pharmaceutical industries. It is widely used for draining in tanks and processing vessels.
  • The diaphragm provides the body seal as well as the seat seal.There are no paths to the outside environment so it suitable for aseptic processes. When the valve is closed a pressure pad which supports the diaphragm moves towards the sealing face on the body.When the pressure plate moves the diaphragm flexes and is forced down onto the seat area in the centre of the body,thus, closing off the flow path through the body.The inter relationship of body to the pressure plate prevents over compression of the diaphram.The valve can be manual operation and pneumatic operation control tops of solenoid valves.

Product Description

Name: Sanitary pneumatic tank bottom diaphragm valve
Body Material: AISI316L
Body Structure: Straight, Tee, U type
Diaphragm Material: EPDM,Siliton,Viton,EPDM+PTFE
Size: DN6-DN80, 1/4"-4" or as required
Standards: DIN,3A,SMS,ISO,IDF
Max pressure: 10 Bar
Working temp: -10°C to +120°C
Certificate: PED 97/23EC
Packaging: Bubble pack for each valve, outside packing are carton or plywood cases.(or as per customer's specification)
Applications: Pharmacy, beer, food, dairy, brewing,
