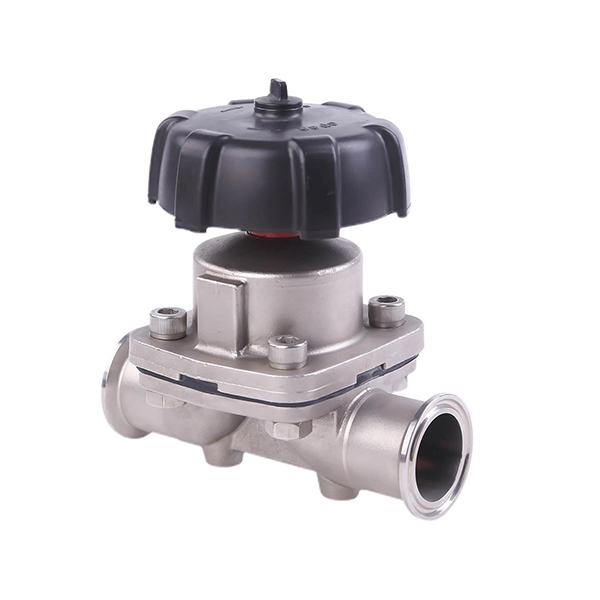

Sanitary Stainless Steel Clamped Diaphragm Valve
- Material:
- SS316L
- Place of Origin:
- Wenzhou, China
- Packing:
- Suitable Packing for Sea/Air Transport
- Quantity:
- 1000 Piece/Pieces per Month
- Payment:
- T/T, L/C, Western Union
- Connection:
- Clamped
- Medium:
- Dairy, Beverage, Pharmacy
- Specification:
- DN15-DN80
- Gasket:
- EPDM+PTFE
Sanitary Stainless Steel Tri-clamp Diaphragm Valve
- Our Sanitary Pharmacy Diaphragm Valve including Sanitary Welding Diaphragm Valve, Hygienic Clamped Diaphragm Valve, Sanitary Manual Diaphragm Valve, Hygienic Pneumatic Diaphragm Valve, Sanitary 3 Way Diaphragm Valve.
- Diaphragm valves, manually or pneumatically operated, and specifically designed for use on hygienic and aseptic processes in the pharmaceutical industries. The valve is excellent for flow control as well as for open/close duties. The diaphragm valves are better in feature of flow in comparison with other valves. It is easier to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.
- With CNC precision machining, ensure the sealing surface and fir the diaphragm valve chamber solitary degrees, reducing the diaphragm.
- Valve chamber surface finish can be mechanical or electrolytic polishing according to customer requirements, polishing face smooth reach 0.25um.
Product Description
| Control mode: | Manual Type & Pneumatic Type |
| Size : | 1/2",3/4",1",1.5",2" |
| Operation : | Normal Open & Normal Close design |
| Connection type: | Clamp or Weld or other |
| Connection: | INCH: 1/2"-2", DIN - ISO: DN10-DN50. other size can be requirement. |
| Working temp: | ASSEMBLING Diaphragm:EPDM(-40ºC -150ºC) PTFE/EPDM(-10ºC-150ºC) |
| Working pressure: | max 10 Bar |
| Standard : | OD/ID mirror polished. ID Ra<0.8um. OD- Sand Blasted .or E/P or other ,ID C Ra<0.5um(SF1) or E/P Ra0.3um(SF4) can be requirement. |
