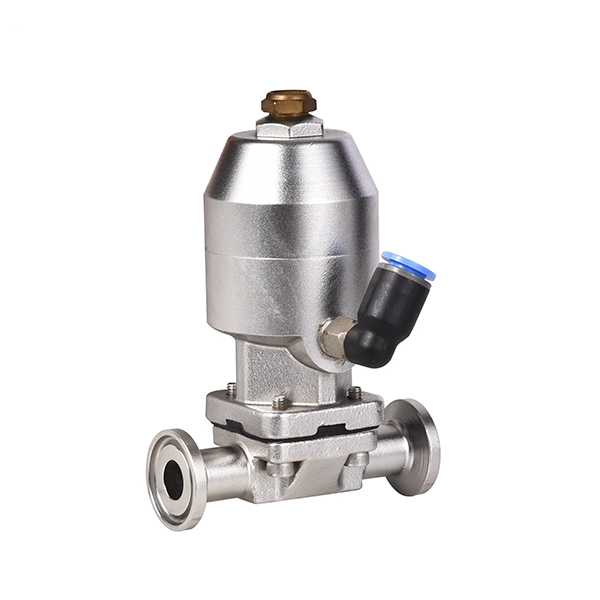

Hygienic Pneumatic Stainless Steel Diaphragm Valve

Material:
SS316L
Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
1000 Piece/Pieces per Month
Payment:
T/T, L/C, Western Union
Connection:
Clamped-Welded
Shape:
U Type
Glass:
EPDM+PTFE
Contact Now

Hygienic Pneumatic Stainless Steel Diaphragm Valve

  • We can supply Sanitary Butt Weld Diaphragm Valve, Hygienic Clamped Diaphragm Valve, Sanitary Manual Diaphragm Valve, Hygienic Pneumatic  Diaphragm Valve, Sanitary 3 Way Diaphragm Valve.
  • Diaphragm valves, manually or pneumatically operated, and specifically designed for use on hygienic and aseptic processes in the pharmaceutical industries. The valve is excellent for flow control as well as for open/close duties. The diaphragm valves are better in feature of flow in comparison with other valves. It is easier to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.
  • With CNC precision machining, ensure the sealing surface and fir the diaphragm valve chamber solitary degrees, reducing the diaphragm.
  • Valve chamber surface finish can be mechanical or electrolytic polishing according to customer requirements, polishing face smooth reach 0.25um.

Product Description

Control mode: Manual Type & Pneumatic Type
Size :  1/2",3/4",1",1.5",2"
Operation : Normal Open & Normal Close design
Connection type: Clamp or Weld or other
Connection: INCH: 1/2"-2", DIN - ISO: DN10-DN50. other size can be requirement.
Working temp: ASSEMBLING Diaphragm:EPDM(-40 C -150 C0   PTFE/EPDM(-10 C-150 C)
Working pressure: 10 Bar
Standard : OD/ID mirror polished. ID Ra<0.8um.
OD- Sand Blasted .or E/P or other ,ID C Ra<0.5um(SF1) or E/P Ra0.3um(SF4) can be requirement.
