Sanitary Stainless Clamp Ferrule Assembly

Material:
SS304,SS316L
Size:
1/4"~8" DN10~DN200
Place of Origin:
Wenzhou, China
Contact Now

The clamp is a pipe connector used for the connection between the pipe and the pipe. The clamp adopts a unique sealable structural design, which makes the clamp connector have good sealing performance, and its sealing is increased as the fluid pressure in the pipe increases.The complete set of clamp connection pipe fittings for connection and sealing mainly consists of three parts: gasket, clamp and Ferrule. Place the sealing ring between the two pieces of joints, then buckle the clamp on the outside, and then tighten with the bolt on the side of the clamp.

Ferrule Lenth 12.7MM,21.5MM,28.6MM
Material SS304,SS316L
Shape Equal
Size 1/4"~8" DN10~DN200
Standard 3A DIN SMS
Available Type Single Pin,Double Pin,Three Pieces
Temperature Range -20 Degree Celsius~135

Applications

The clamp is a pipe connector used for the connection between the pipe and the pipe. The clamp adopts a unique sealable structural design, which makes the clamp connector have good sealing performance, and its sealing is increased as the fluid pressure in the pipe increases.The complete set of clamp connection pipe fittings for connection and sealing mainly consists of three parts: gasket, clamp and Ferrule. Place the sealing ring between the two pieces of joints, then buckle the clamp on the outside, and then tighten with the bolt on the side of the clamp.

[Product Features]: Two traditional pipe connection methods, flange and welding, have been gradually replaced. The connection method of the clamp makes the pipeline easy to install and better guarantee the tightness of the pipeline, which is generally recognized by the market.

[Product material]: Stainless steel 304, 316L

[Product Specifications]: There are many specifications, which can be used for the connection of the matching set clamp Ferrule with the diameter of 25.4, 34 and 40, 50.5mm...

[Feature Analysis]:

1. Fast: No welding and re-galvanizing is required, and the installation speed is more than 3 times faster than flanged pipe fittings.

2. Simple: It is lighter than the flange, the locking mechanism is well designed, the number of bolts is small, and there is no need to lock the holes.

3. Reliable: The clamp, the gasket and the tube end tube system are fully contracted and compressed, and the tube end has a high tensile strength, the test pressure reaches 6.4MPa, the temperature is -30℃~150℃, and the vacuum degree can reach 0.8MPa;

4. The stainless steel clamps are heat-insulating, energy-saving, and environmentally friendly;

5. High temperature resistance, high pressure resistance, corrosion resistance, no scaling.

After understanding the relevant product features and characteristics of the clamp, do you know how to raise the technical process of the clamp?

Product Description

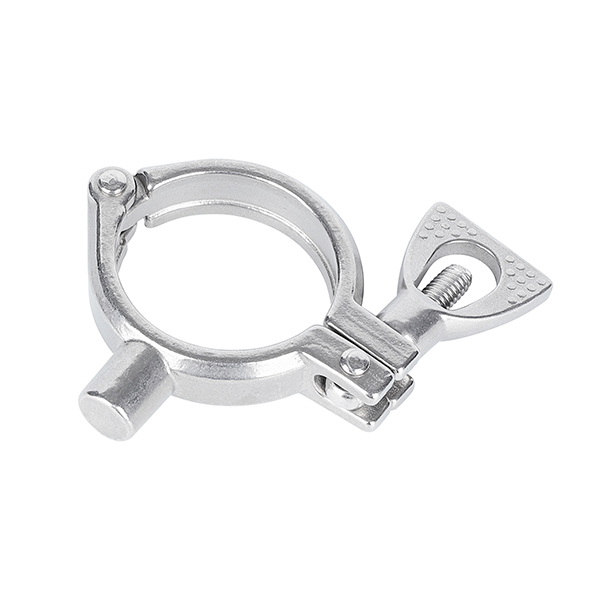

Securely connect tri-clamp ends with heavy-duty, stainless steel single pin clamp (13MHHM)

The single pin heavy duty clamp with a wingnut is made from 304 stainless steel alloy.  It is used to join two separate tri-clamp ends to one another.  Sizes on this product range from 1/2 inch all the way up to 12 inches in diameter.  A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection.  Do not over tighten wing-nut as this may damage product.Securely connect tri-clamp ends with heavy-duty, stainless steel single pin clamp (13MHHM)

The single pin heavy duty clamp with a wingnut is made from 304 stainless steel alloy.  It is used to join two separate tri-clamp ends to one another.  Sizes on this product range from 1/2 inch all the way up to 12 inches in diameter.  A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection.  Do not over tighten wing-nut as this may damage product.
