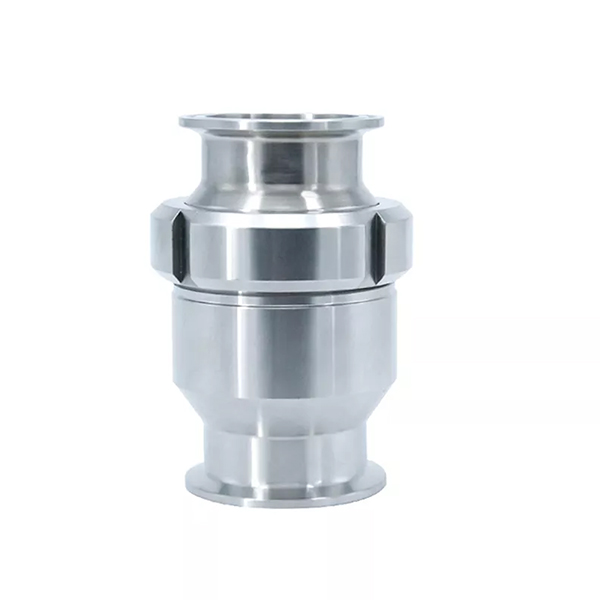

Stainless Steel Sanitary Tri Clamp Check Valves

Place of Origin:
Wenzhou, China
Contact Now

Application:Our Check Valves are designed to prevent reverse flow.Concentric and eccentric styles as well as our tapered disk design are available for horizontal,vertical applications and are working well without leaking while getting a return pressure.Our special designed Check valve can be using for many applications in such as food, dairy,beverage,pharmaceutical, chemical, and many other industries.

Standard SMS,DIN,3A,IDF,ISO
SMS,DIN,3A,IDF,ISO SS304,SS304L,SS316,SS316L
Size 3/4"~6",DN19~DN150
Seal ring of stem EPDM. VITON OR SILICON is required
Connection ends Butt-welded,clamped,male ends,union ends
External surface  Bright gloss,dull gloss
Bright gloss,dull gloss Manual
Working temperature -20Celsius degree~+135Celsius degree
 Max. working pressure 10Bar
