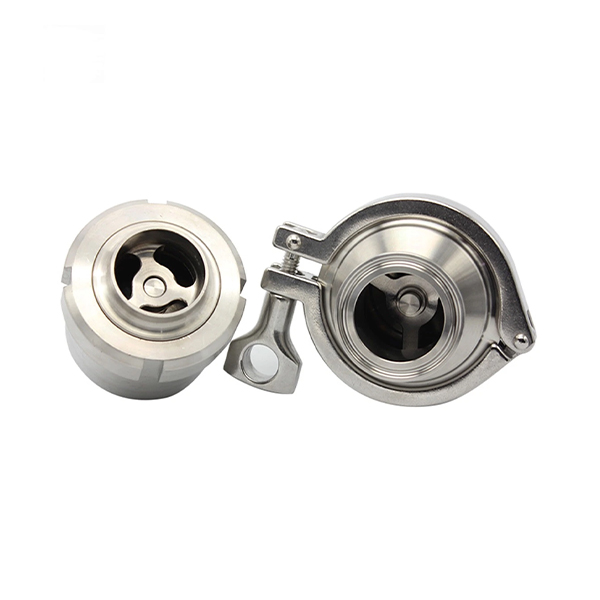

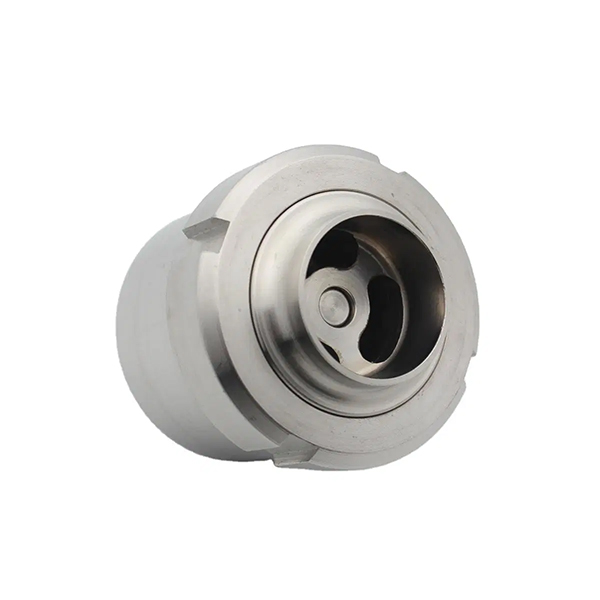

Hygienic Stainless Steel Union Type Check Valve

Material:
SS304, SS316L
Type:
Union Type
Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
100000 PCS Per Year
Payment:
T/T, L/C, Western Union
Connection:
Welding
Contact Now

Hygienic Stainless Steel Union Type Check Valve

  • Hygienic Check Valve including Sanitary Tri Clover Check Valve, Hygienic Welding Check Valve, Sanitary Male Check Valve, Sanitary Union Type Check Valve, Hygienic Flanged Type Check Valve.
  • Check valve can prevent the fluid from flowing back and ensures that it flows in only one direction.
  • It can be used to prevent the less of prime of the pump and to avoid pipe-hammering.
  • It is used in the food-processing, beverage, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries.
  • The valve opens when the pressure of the fluid exceeds the pressure exerted by the pump spring.
  • When the two pressures are equalized, the valve closes. A stronger counter-pressure allows the valve to close.

Product Description

Product Name:  Sanitary Check Valve
 Material:  SS304 or SS316L
 Standard:  3A, SMS, DIN, RJT, IDF
 Size:  19mm - 200mm  or DN15-DN100
 Connection Way:  Weld
 Seal Material:  Silicone, EPDM, Viton, NBR
 Surface Finishing:  Ra≤0.8
 Working Temperature:  -10 degree to +120 degree (EPDM)
 Opening Pressure:  0.3 Bar (DN-25), 0.2 Bar (DN-32/40),0.1Bar(DN-50/100)
Packing Details: within carton box or plywood case
Applied Industries:  Dairy, Cosmetic, Pharmaceutical, Food and Beverage Industries
