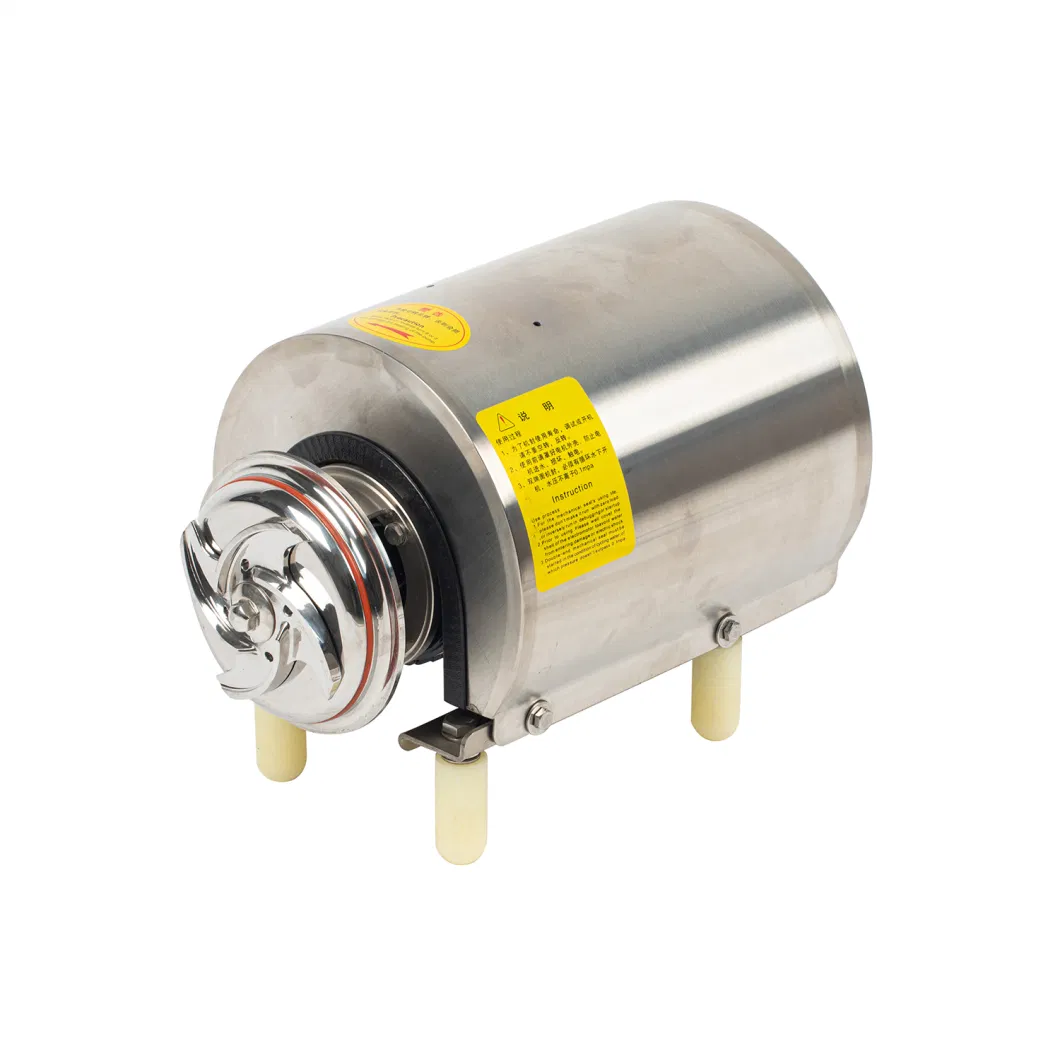

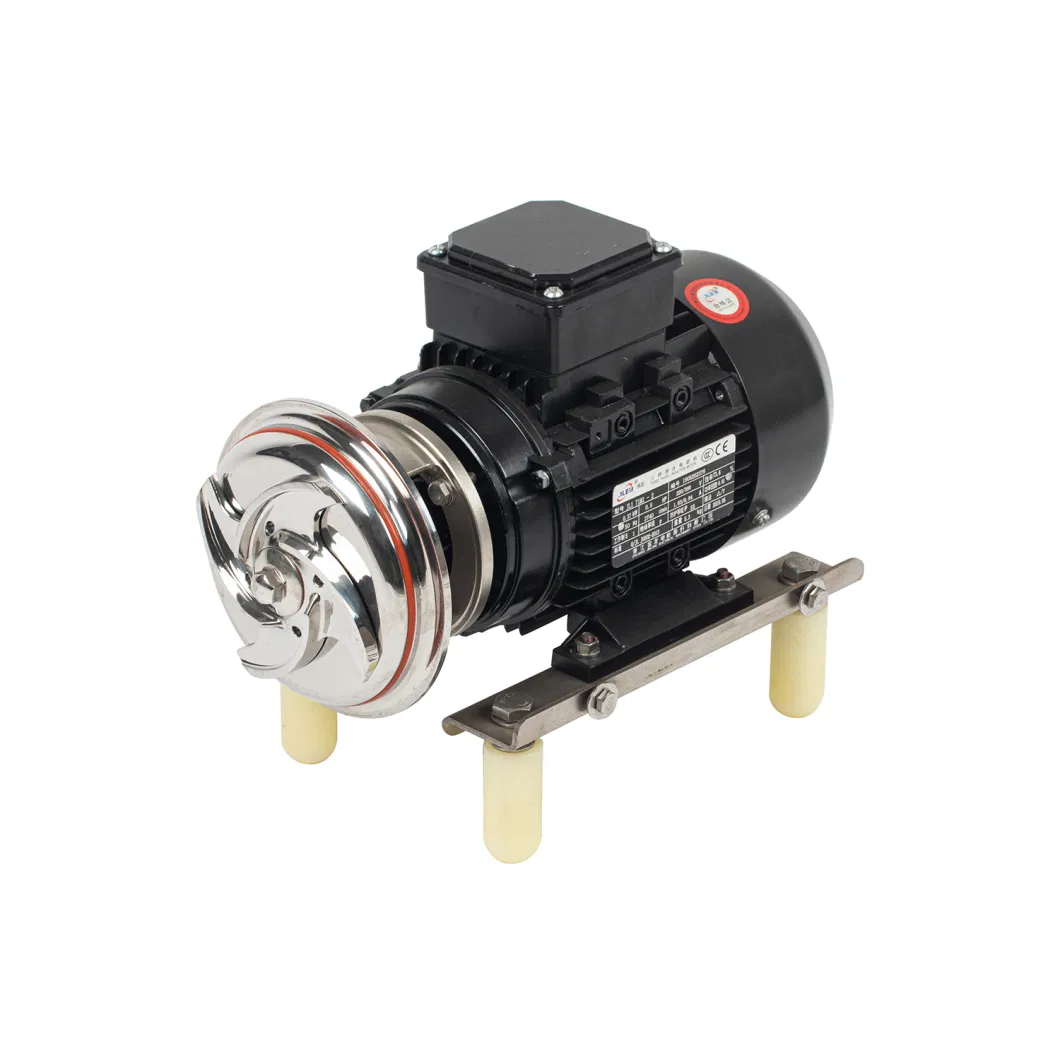

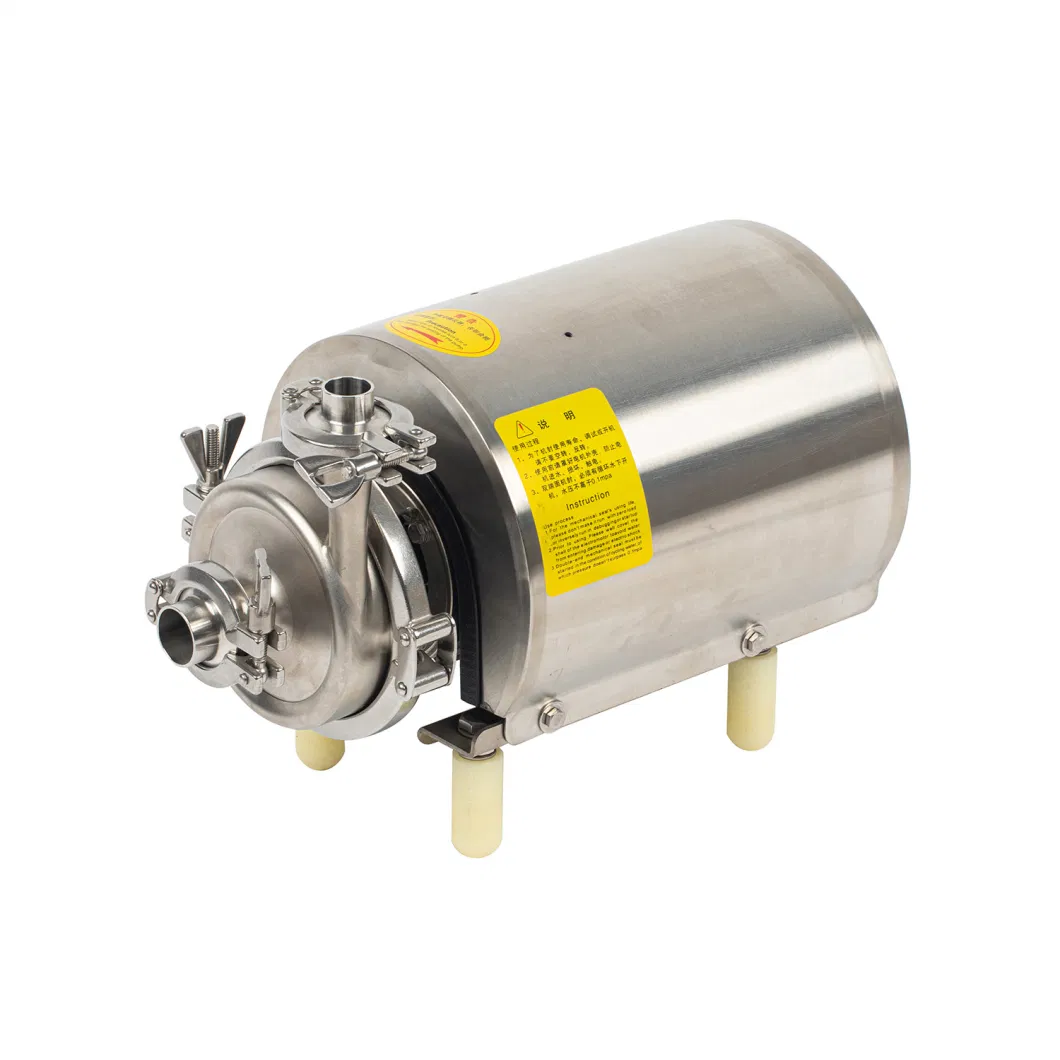

3kw Food Grade Stainless Sanitary Centrifugal Pump with Electric Motor
- Driven Type:
- Motor
- After-sales Service:
- 12 Months Guarantee
- Warranty:
- 12 Months Guarantee
- Max.Head:
- 32m
- Max.Capacity:
- 250L/Min
- Impeller Number:
- Single-Stage Pump
Basic Info.
| Influent Type of Impeller | Single Suction Pump | Working Pressure | Low Pressure Pump |
| Pump Casing Combined | Horizontal Split Pumps | Position of Pump Shaft | Horizontal Pump |
| Impeller | Semi-Open | Mounting Height | Since Irrigation Centrifugal Pumps |
| Rated Power | 3kw | Usage | Pump, Pumps |
| Material | AISI 304, AISI 316L | Rated Voltage | 380V |
| Transport Package | Plywood | Motor | ABB |
| HS Code | 8413709990 | Specification | 43KG |
| Origin | China | Production Capacity | 1000PCS/Year |
Product Description
Brief Introduction:
centrifugal pump is one type of centrifugal pump which mainly used for pharmaceutical, food industry, dairy industry, winery project. The pumps are made of Stainless steel 316L or SS 304, which with a surface polished, can be used to the above industry for sanitary purpose.
BasicSpecification:
| Model in Our Company | sanitary centrifugal pump |
| Motor Power | 0.75KW~7.5KW |
| Rated Flow | 3~30T/H (50~500L/min) |
| Rated Head | 18~36m |
| Working Temperature | -10ºC~140ºC |
| Inlet Diameter | Φ38~Φ63 (mm) |
| Outlet Diameter | Φ32~Φ51 (mm) |
| Voltage | AC220~240V, AC380~420V, 50/60Hz custom |
| Motor | ABB Motor |
| Connection | ISO ferrule joint, threaded union, flange |
| Inner Surface | Mirror polishing Ra0.4 |
| Material | AISI 304, AISI 316L |
Advantage:
1. pumps are complete including the motor, and are made of stainless steel, not only with high clean exterior and interior design,
but also could be with online high-pressure water rinse.
2. This pump with low noise, no dead angle, high efficiency and other technical characteristics.
3. The pump is very suitable for workplace of high cleanliness workshop and meet with high cleanliness requirements,
such as bio-pharmacy, food and beverage, wine, fine chemical industry and other fields.

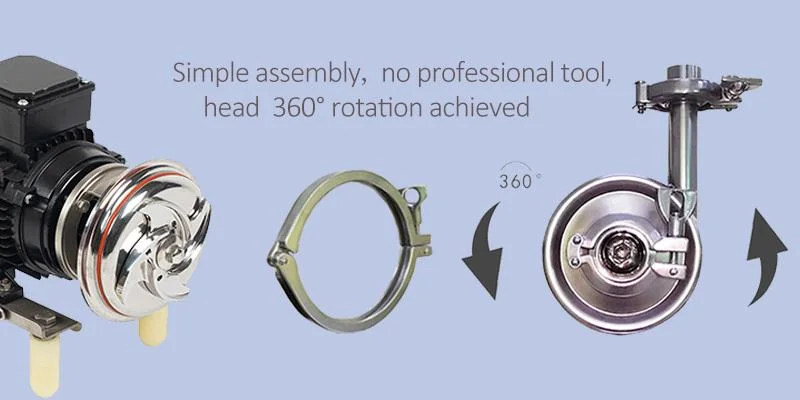

4.The GKHs equipped with the quick assembly clamp, easy to realize the free rotation of the pump head 360 degrees.
