Sanitary Centrifugal Pump
Sanitary Centrifugal Pump

Products

11kw Stainless Sanitary Centrifugal Pump Dairy Pump with Electric Motor

Driven Type:
Motor
After-sales Service:
12 Months Guarantee
Warranty:
12 Months Guarantee
Max.Head:
50m
Max.Capacity:
830L/Min
Impeller Number:
Single-Stage Pump
Contact Now

Basic Info.

Influent Type of Impeller Single Suction Pump Working Pressure Low Pressure Pump
Pump Casing Combined Horizontal Split Pumps Position of Pump Shaft Horizontal Pump
Impeller Semi-Open Mounting Height Since Irrigation Centrifugal Pumps
Rated Power 11kw Usage Pump, Pumps, Circulating Pump
Material AISI 304 / AISI 316L Custom Rated Voltage 380V
Liquid Concentration Low Transport Package Plywood
Specification 166KG HS Code 8413709990
Origin China Production Capacity 1000PCS/Year

Product Description

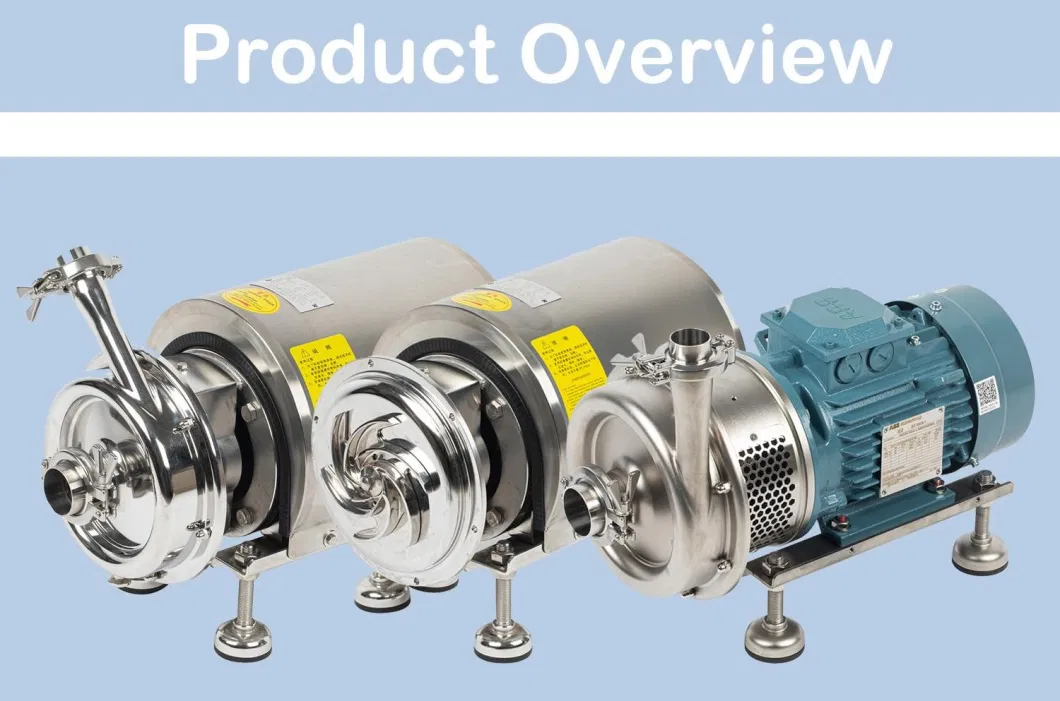

11kw Stainless Sanitary Centrifugal Pump Dairy Pump with Electric Motor
Stainless steel sanitary centrifugal pump uses 304 or 316L material and mirror polishing process, is widely used in food, dairy, pharmaceutical and other industries. centrifugal pumps are used to transport low density liquids such as water, milk, low viscosity potion. It is provided with a set of externally mounted single end mechanical seal or water injection mechanical seal. The static ring of the mechanical seal is made of stainless seal, silicon carbide or tungsten alloy. And the dynamic ring is made of stainless seal, carbon, graphite or tungsten alloy. According to customer demand, it can also be equipped with the double end mechanical seal.

Specification:

Model in Our Company sanitary centrifugal pump
Motor Power 0.37KW~37KW
Rated Flow 1~150T/H (16~2500L/min)
Rated Head 15~55m
Working Temperature -10ºC~140ºC
Inlet Diameter Φ32~Φ102 (mm)
Outlet Diameter Φ25~Φ102 (mm)
Voltage AC220~240V, AC380~420V, 50/60Hz custom
Motor ABB/Chinese Motor
Connection ISO ferrule joint, threaded union, flange
Inner Surface Mirror polishing Ra0.4
Material AISI 304, AISI 316L
Delivery Time About 7-15 days after deposit


Feature:
Low noise and no dead ends.
Ra0.4 high smooth finish.

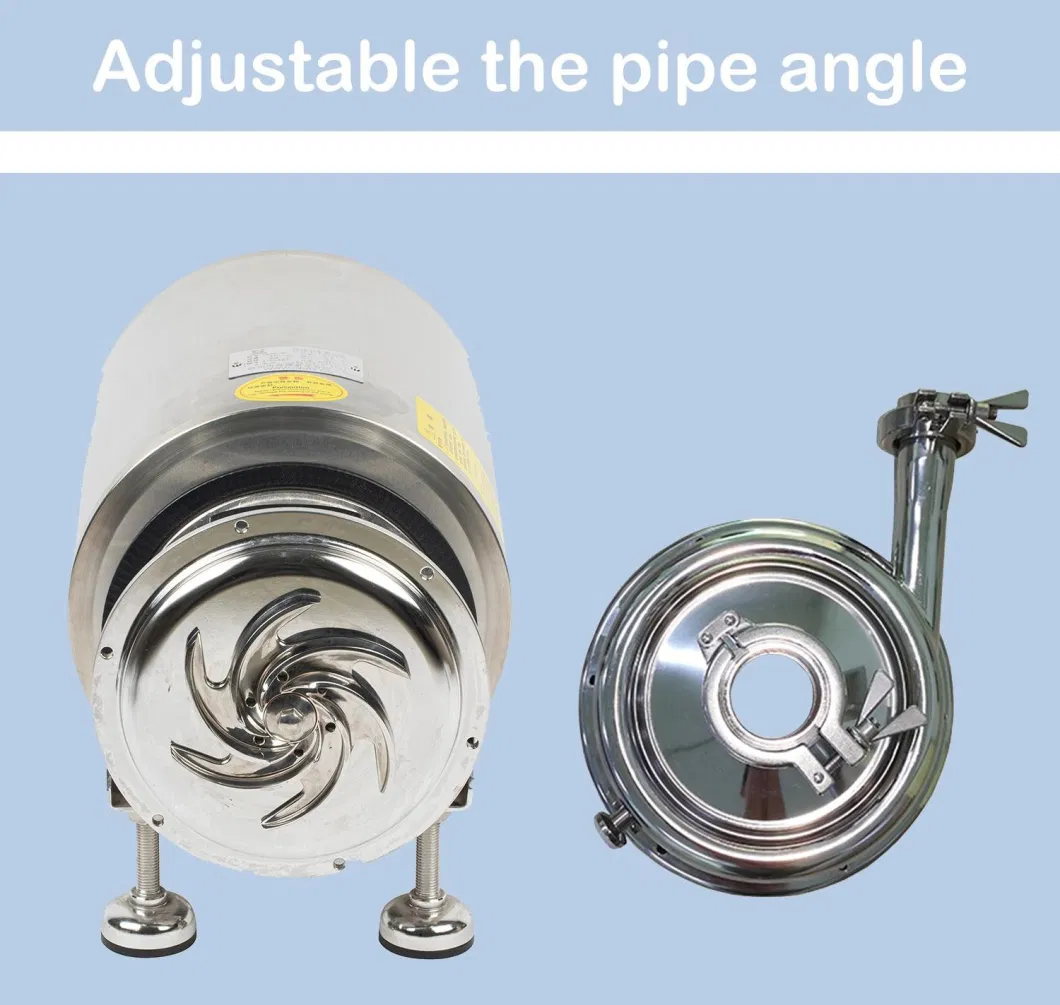

Adjustable Angle pipe
Pure stainless steel design.
Flushed single or double mechanical seal.
With stainless steel base plate & adjustable feet.
Different drives and devices:
1) Manual adjustment, continuously variable transmission.
2) Variable - frequency motor adjustment.
3) Fixed speed output transmission.

11kw Stainless Sanitary Centrifugal Pump Dairy Pump with Electric Motor

Adjust the impeller face angle before screwing in.

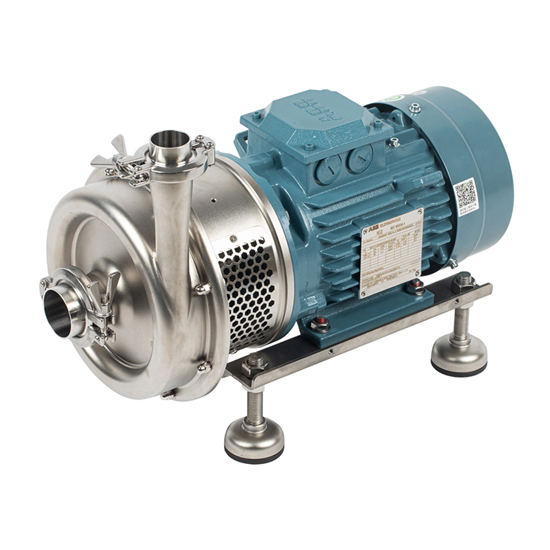

11kw Stainless Sanitary Centrifugal Pump Dairy Pump with Electric Motor
