1.5kw Stainless Centrifugal Pump Sanitary Grade Open Impeller for Circulating
- Driven Type:
- Motor
- After-sales Service:
- 12 Months Guarantee
- Warranty:
- 12 Months Guarantee
- Max.Head:
- 25m
- Max.Capacity:
- 80L/Min
- Impeller Number:
- Single-Stage Pump
Basic Info.
| Influent Type of Impeller | Single Suction Pump | Working Pressure | Low Pressure Pump |
| Pump Casing Combined | Horizontal Split Pumps | Position of Pump Shaft | Horizontal Pump |
| Impeller | Semi-Open | Mounting Height | Since Irrigation Centrifugal Pumps |
| Rated Power | 1.5kw | Usage | Pump, Pumps |
| Rated Voltage | 380V | Motor | ABB |
| Transport Package | Plywood | Material | AISI 304 / AISI 316L Custom |
| HS Code | 8413709990 | Specification | 36KG |
| Origin | China | Production Capacity | 1000PCS/Year |
Product Description
Brief Introduction:
It is a centrifugal pump mainly used to transport beverages, drinking water and other liquids with hygiene requirements. The pump is made of stainless steel 316L or stainless steel 304 with internal contact surface polished Ra0.4. It is convenient to open the pump head by hand screw to disassemble the impeller and replace the mechanical seal.
Basic Specification:
| Motor Power | 1.5KW~7.5KW |
| Rated Flow | 5~30T/H (80~500L/min) |
| Rated Head | 25~40m |
| Working Temperature | -10ºC~140ºC |
| Inlet Diameter | Φ51~Φ63 (mm) |
| Outlet Diameter | Φ38~Φ51 (mm) |
| Voltage | AC220~240V, AC380~420V, 50/60Hz custom |
| Motor | ABB Motor |
| Connection | ISO ferrule joint, threaded union, flange |
| Inner Surface | Mirror polishing Ra0.4 |
| Material | AISI 304, AISI 316L |
| Delivery Time | About 7-15 days after deposit |
Advantage:
1. pumps are complete including the motor, and are made of stainless steel, not only with high clean exterior and interior design, but also could be with online high-pressure water rinse.
2. This pump with low noise, no dead angle, high efficiency and other technical characteristics.
3. The pump is very suitable for workplace of high cleanliness workshop and meet with high cleanliness requirements,
such as bio-pharmacy, food and beverage, wine, fine chemical industry and other fields.

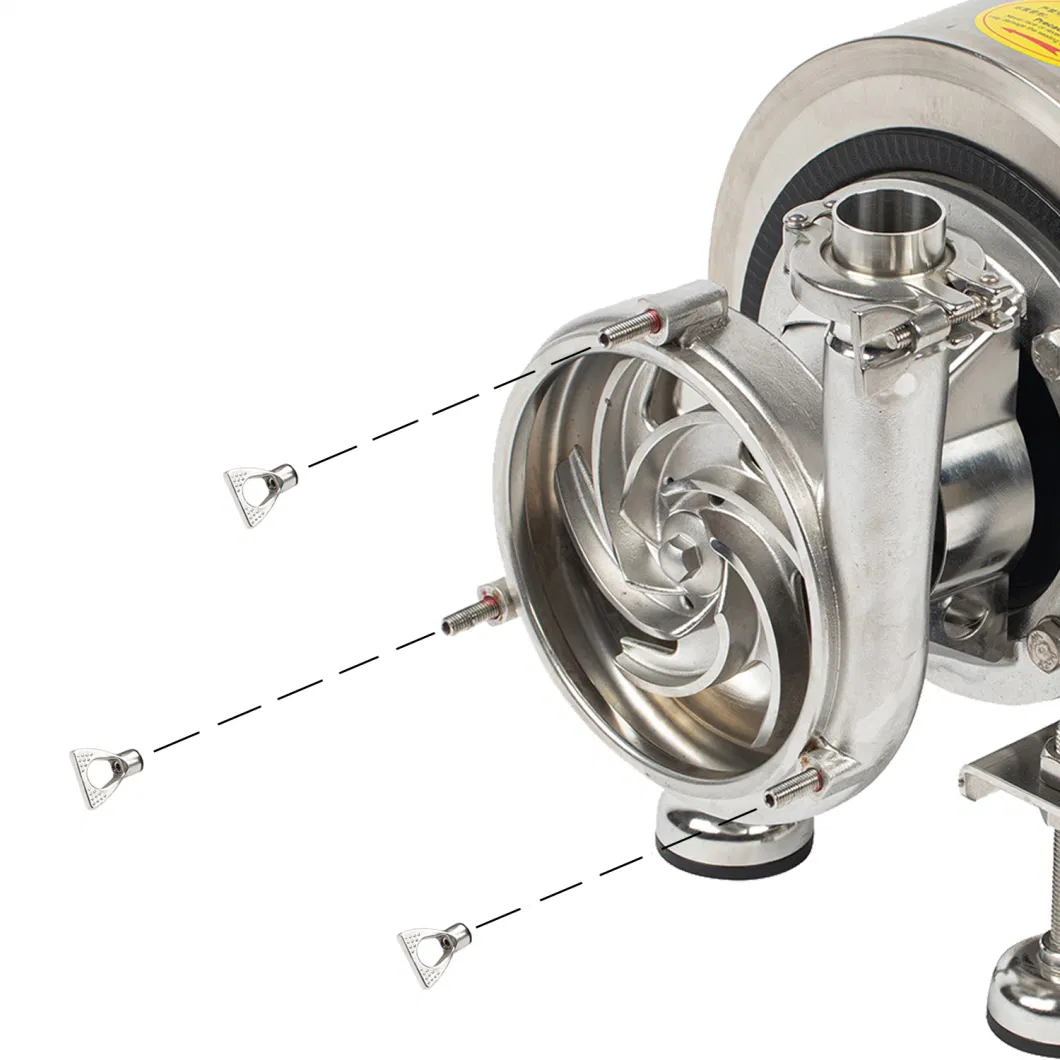

The pump head is designed with three-hand screws, and the shell can be easily removed for debugging, cleaning, replacement and other maintenance operations without professional tools.
We precisely polish the liquid contact surface Ra≤ 0.4 um to make the machine run more efficiently and cleanly.
