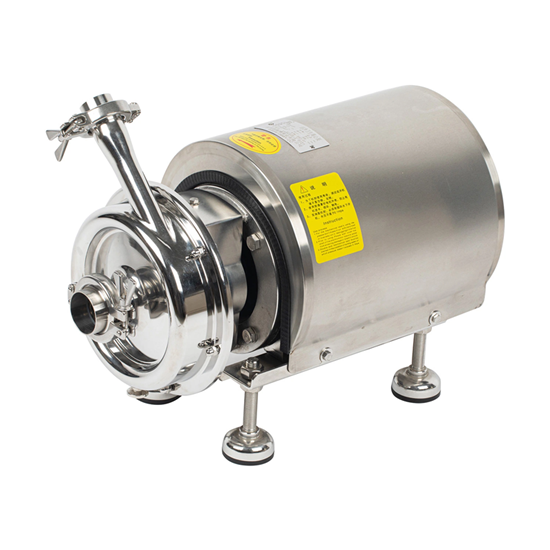

1.1kw Stainless Sanitary Centrifugal Pump Dairy Pump with Electric Motor
- Driven Type:
- Motor
- After-sales Service:
- 12 Months Guarantee
- Warranty:
- 12 Months Guarantee
- Max.Head:
- 21m
- Max.Capacity:
- 50L/Min
- Impeller Number:
- Single-Stage Pump
Basic Info.
| Influent Type of Impeller | Single Suction Pump | Working Pressure | Low Pressure Pump |
| Pump Casing Combined | Horizontal Split Pumps | Position of Pump Shaft | Horizontal Pump |
| Impeller | Semi-Open | Mounting Height | Since Irrigation Centrifugal Pumps |
| Rated Power | 1.1kw | Usage | Pump, Pumps, Circulating Pump |
| Material | AISI 304 / AISI 316L Custom | Rated Voltage | 380V |
| Liquid Concentration | Low | Motor | ABB |
| Specification | 26KG | Transport Package | Plywood |
| Production Capacity | 1000PCS/Year | HS Code | 8413709990 |
Product Description

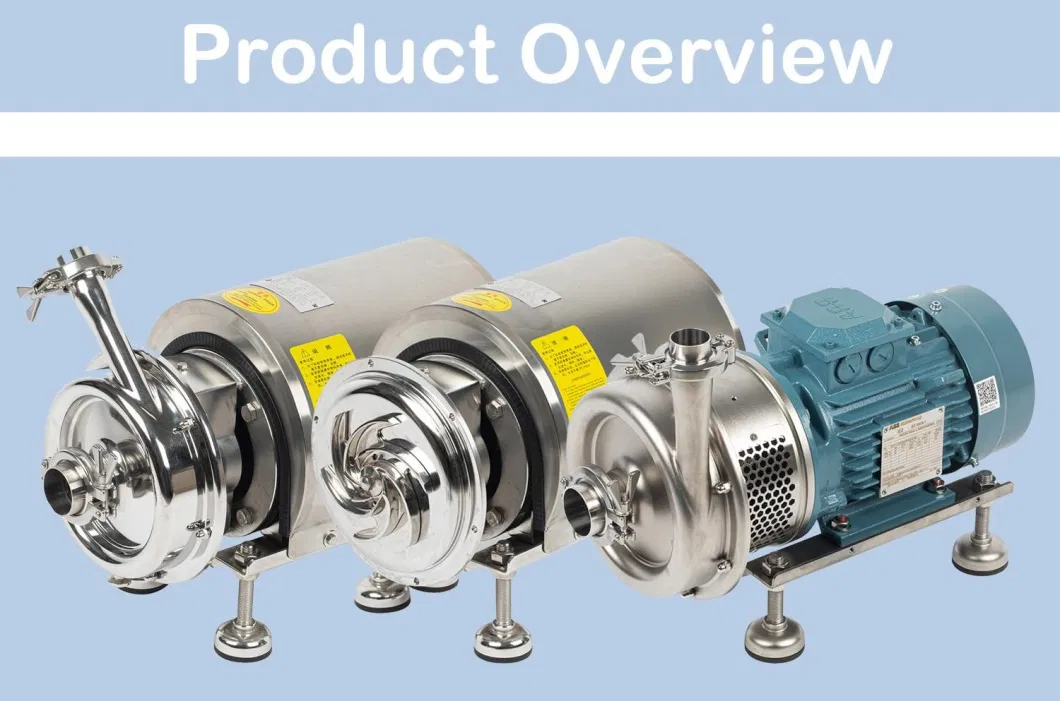

Stainless steel sanitary centrifugal pump uses 304 or 316L material and mirror polishing process, is widely used in food, dairy, pharmaceutical and other industries. The GKH series centrifugal pumps are used to transport low density liquids such as water, milk, low viscosity potion. It is provided with a set of externally mounted single end mechanical seal or water injection mechanical seal. The static ring of the mechanical seal is made of stainless seal, silicon carbide or tungsten alloy. And the dynamic ring is made of stainless seal, carbon, graphite or tungsten alloy. According to customer demand, it can also be equipped with the double end mechanical seal.
Specification:
| Motor Power | 0.37KW~37KW |
| Rated Flow | 1~150T/H (16~2500L/min) |
| Rated Head | 15~55m |
| Working Temperature | -10ºC~140ºC |
| Inlet Diameter | Φ32~Φ102 (mm) |
| Outlet Diameter | Φ25~Φ102 (mm) |
| Voltage | AC220~240V, AC380~420V, 50/60Hz custom |
| Motor | ABB/Chinese Motor |
| Connection | ISO ferrule joint, threaded union, flange |
| Inner Surface | Mirror polishing Ra0.4 |
| Material | AISI 304, AISI 316L |
| Delivery Time | About 7-15 days after deposit |
Feature:
Low noise and no dead ends.
Ra0.4 high smooth finish.

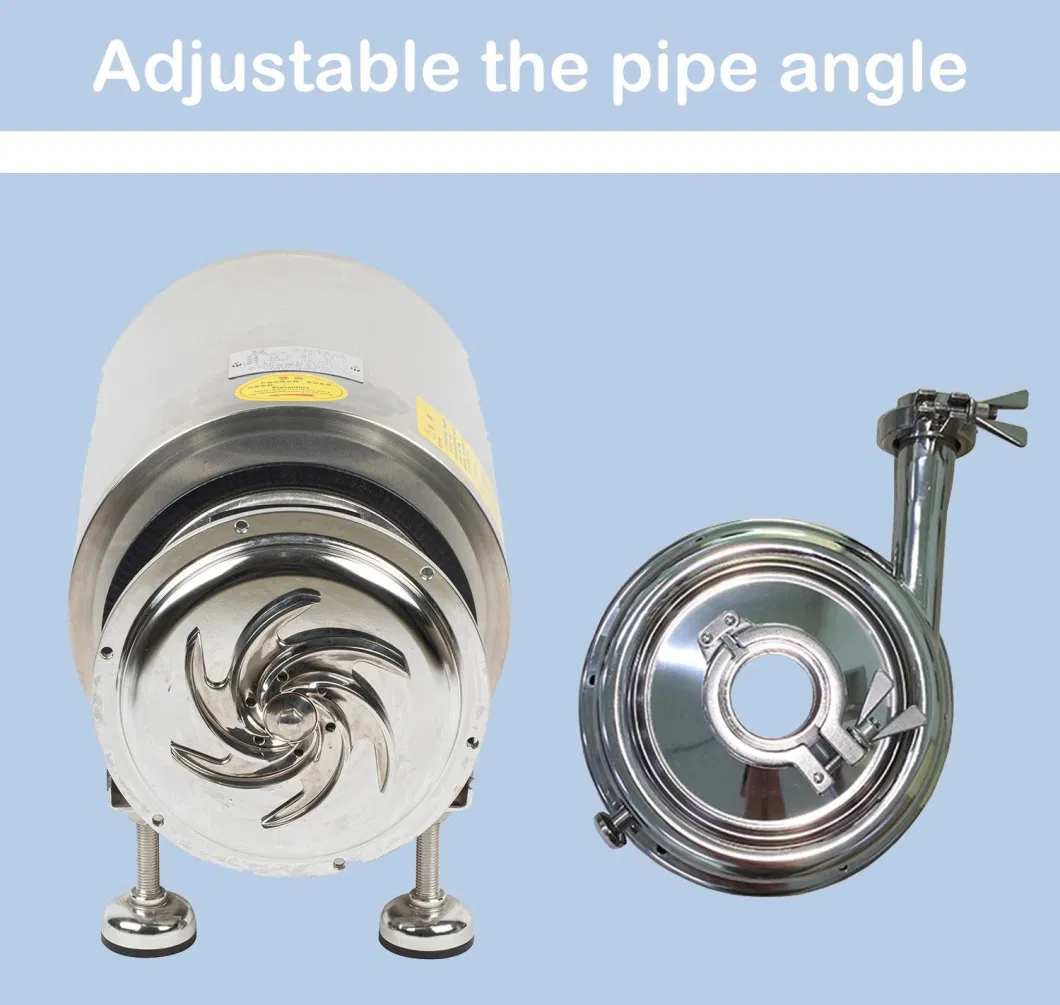

Adjustable Angle pipe
Pure stainless steel design.
Flushed single or double mechanical seal.
With stainless steel base plate & adjustable feet.
Different drives and devices:
1) Manual adjustment, continuously variable transmission.
2) Variable - frequency motor adjustment.
3) Fixed speed output transmission.
Adjust the impeller face angle before screwing in.
