Sanitary Stainless Steel Pneumatic Three Pieces Welding Butterfly Valve

Material:
SS304, SS316L
Type:
Three Pieces
Pressure:
0-10Bar
Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
1000000 PCS Per Year
Payment:
T/T, L/C, Western Union
Connection:
Welding
Medium:
Water, Oil
Specification:
1"-4"
Temperature:
-20°~120°
Gasket:
EPDM/SILICON/NBR
Contact Now

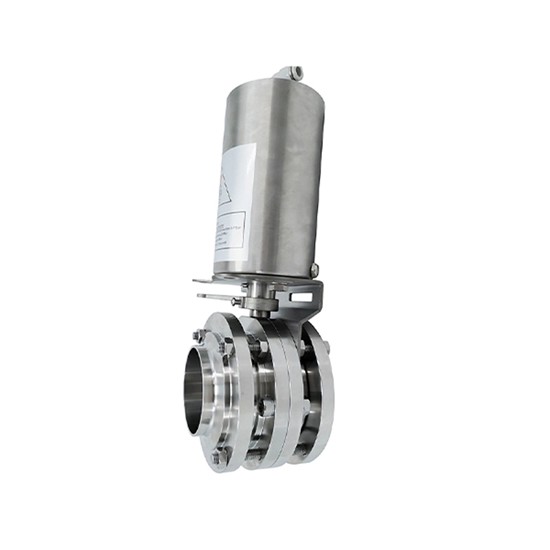

Sanitary Stainless Steel Pneumatic Three Pieces Welding Butterfly Valve

  • Our Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.
  • The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
  • All of the products have been 100% press tested before shipping.
  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
  • EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Product Description

Product Name:  Sanitary Stainless Steel 3-Piece Butterfly Valve
Valve Body Material:  1.4404/1.4301, SS304/SS316L
Seal Material:  EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Mex working pressure:  20Bar
Max. Working Temperature: 120 degree C
Availably  size: DN10-DN150,3/4"-4"
Availably connection:  weld
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Pneumatic
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate:  ISO, PED/97/23/EC, FDA.177.2600
Application scope:  Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
