Products

Sanitary Stainless Steel 3 Way Butterfly Valve

Material:
SS304/SS316L
Pressure:
0-10Bar
Place of Origin:
Wenzhou, China
Packing:
Suitable Packing for Sea/Air Transport
Quantity:
1000000 PCS Per Year
Payment:
T/T, L/C, Western Union
Connection:
Thread
Medium:
Water, Oil
Specification:
1"-4"
Temperature:
-20°~120°
Gasket:
EPDM/SILICON/NBR
Contact Now

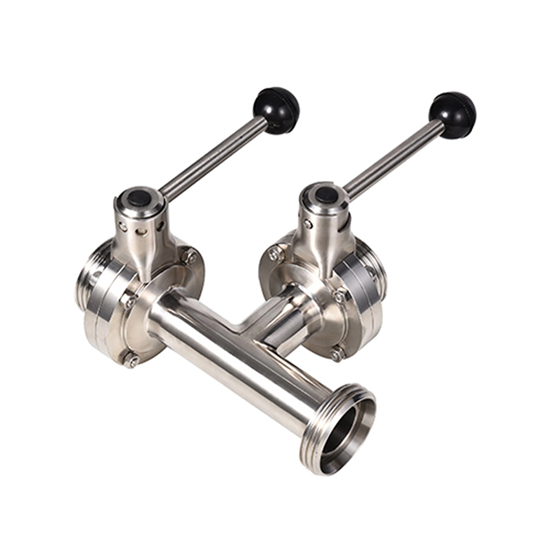

Sanitary Stainless Steel 3 Way Butterfly Valve

  • We can supply Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Butterfly Valve, Hygienic Male Thread Butterfly Valve, Sanitary Pneumatic Butterfly Valve, Hygienic Electric Butterfly Valve. For the manual handle, we have Stainless Steel Pull Handle, Plastic Multi Position Gripper Handle and Stainless Steel Multi Position Handle.
  • The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
  • All of the products have been press tested before shipping.
  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
  • EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Product Description

Product Name: Sanitary 3-way Butterfly Valve
Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Availably connection: Thread
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated:  ManSensor, C-TOP, C-top controller(AS-I)ual,Pneumatic, Electric
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Handle application: Two-position handle, three-position handle, four-position pull handle, multi-positio plastic
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
