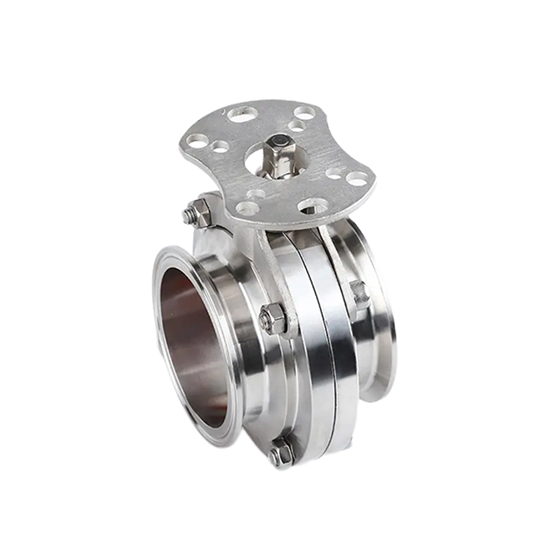

DIN Sanitary Stainless Steel Thread Butterfly Valve With Bracket
- Material:
- SS304,SS316L
- Pressure:
- 0-10Bar
- Place of Origin:
- Wenzhou, China
- Packing:
- Suitable Packing for Sea/Air Transport
- Quantity:
- 1000000 PCS Per Year
- Payment:
- T/T, L/C, Western Union
- Connection:
- Thread
- Medium:
- Water, Oil
- Specification:
- 0.5S-8S
- Temperature:
- -20°~120°
- Gasket:
- EPDM/SILICON/NBR
DIN Sanitary Stainless Steel Thread Butterfly Valve With Bracket
- The bracket is ISO5211 standard, you can install the pnuematic actuator or electric actuator.
- The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
- All of the products have been 100% press tested before shipping.
- It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
- EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.
Product Description
| Product Name: | Sanitary Stainless Steel Butterfly Valve With Bracket |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Max working pressure: | 20Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 0.5S-8S |
| Availably connection: | Thread |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
