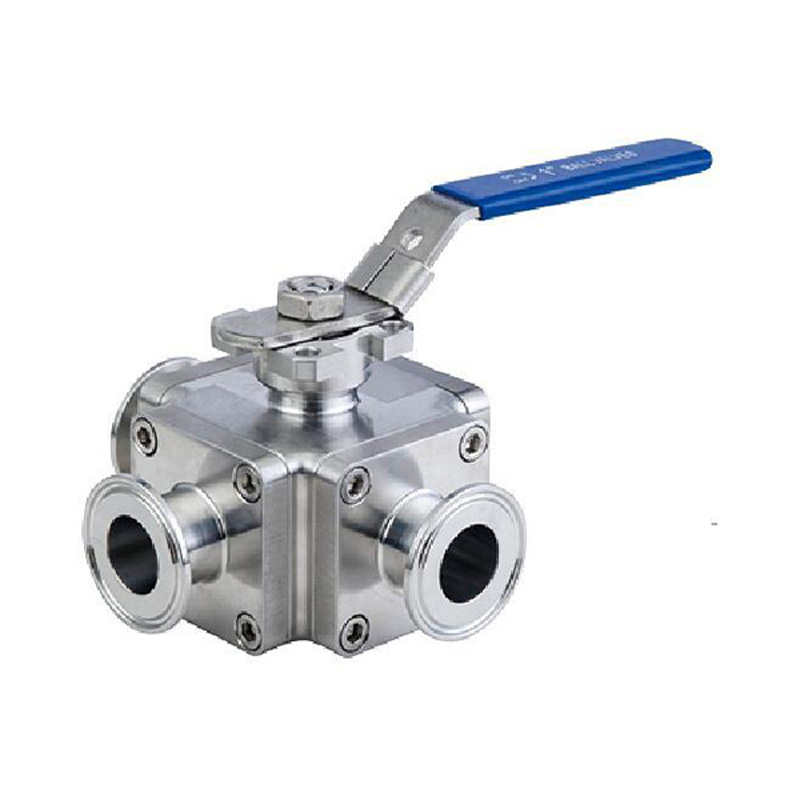

Sanitary Three ways T-Port Non-detention Ball Valves

Place of Origin:
Wenzhou, China
Contact Now

MINGHE's sanitary ball valves, no matter manual or automatic or electric, which is widely used in food, beer, milk, dairy, pharmaceutical, biological, chemical industrial. Sanitary ball valves are made from stainless steel SS304 and SS316L. The available sizes includes of 1/2"- 4", DN15-DNDN100. Standard have SMS,DIN,3A,ISO,RJT and so on. Meanwhile, sanitary ball valves's connection have different types, such as weld, clamp, thread, flange, ect. Type of ball valves have straight type, three ways, three-piece. MINGHE can produce sanitary ball valves as per customers' design drawing and requirement.

Specification:

  • Available Sizes: 1/2"-4", DN15-DN100

  • Material: Valve body and disc material can be SS304 or SS316L , SS304L material are availble upon request.

  • Type of Valves: Straight two ways ball valves, T port three ways ball valves, L port three ways ball valves, three-piece ball valve.

  • End Connections: Clamp to clamp, weld to weld, male to male, male to clamp, male to weld, clamp to weld, flange to flange, and so on.

  • Standard: SMS, DIN, 3A, ISO, RJT .

  • Handle: Stainless steel pull handle.

  • Seal Type: PTFE( TEFLON)

  • Actuator: Pneumatic actuator stainless steel sanitary ball valves, pneumatic aluminum actuator sanitary ball valves,

    electric actuator sanitary butterfly valves

Design and Features:

  • Free of maintenances

  • Compact and portable

  • Small operating torque

  • Gasket complies with PTFE FDA 177.2600

  • Handle level can be installed on the side of valves body, no matter of the flow direction.

Operating Torque( N.M.):

  N.M. Dry test DN10-DN20 DN25 DN32 DN40 DN50 2.5" DN65 DN80 DN100
1/2"-3/4" 1" 1-1/4" 1-1/2" 2" 3" 4"
8 8 10 12 17 25 30 40 70
