Clamped Three Pieces Tank Bottom Ball Valve
- Material:
- SS304/SS316L
- Pressure:
- 0-10Bar
- Place of Origin:
- Wenzhou, China
- Packing:
- Suitable Packing for Sea/Air Transport
- Quantity:
- 1000000 PCS Per Year
- Payment:
- T/T, L/C, Western Union
- Connection:
- Clamped
- Medium:
- Water, Oil
- Temperature:
- -20°~120°
- Gasket:
- PTFE

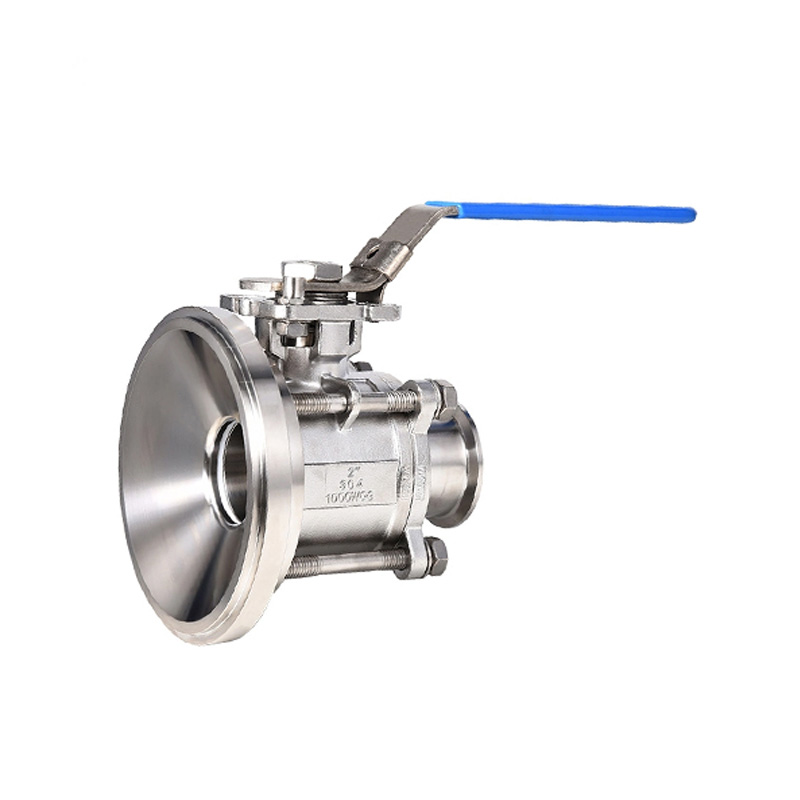

Sanitary Stainless Steel Clamped Three Pieces Tank Bottom Ball Valve
Three pieces tank bottom ball valve with a special tank bottom flange connection, be welded on the tank botom. The design of contour and sadius have effective gravity discharge function.Also smooth taper hole and the sphere closest to the bottom, which prevents the medium from staying at the entrance of the valve, making sure to drain smoothly.
The three pieces tank bottom ball valve is very suitable for application in high clean technology system, such as biological pharmacy, food and beverage, dairy products, chemical and other fields.
- Small fluid resistance, resistance equal to the same length section of pipe
- Simple structure, small volume, light weight
- Easy to operate, open and close rapidly,from fully open to fully closed only 90 degree rotation, convenient remote control.
- Easy maintenance, simple structure, convenient to disassembly and replace the seal.
- The tank bottom ball valve is sealed with PTFE, at fully open or fully closed sphere and the sealing surface of the valve seat are isolated with the medium. When medium trasiting, these will not cause erosion of the sealing surface.
Product Description
| Size: | 1/2"-4" |
| Temperature: | -20ºC-120 ºC |
| Pressure: | 10 Bar |
| Material: | AISI304, AISI316L |
| Gaskets: | PTFE FDA 177. 1550 Whatever The Connection, It Does Not Change The Total Length Of The Valve |
| Connection: | Clamp, Weld, Thread, Flange |
| Standard: | 3A, DIN, SMS, IDF, RJT, BPE, ISO |
