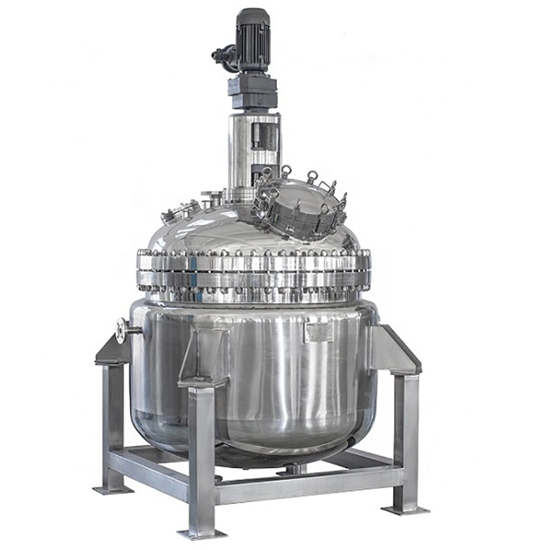

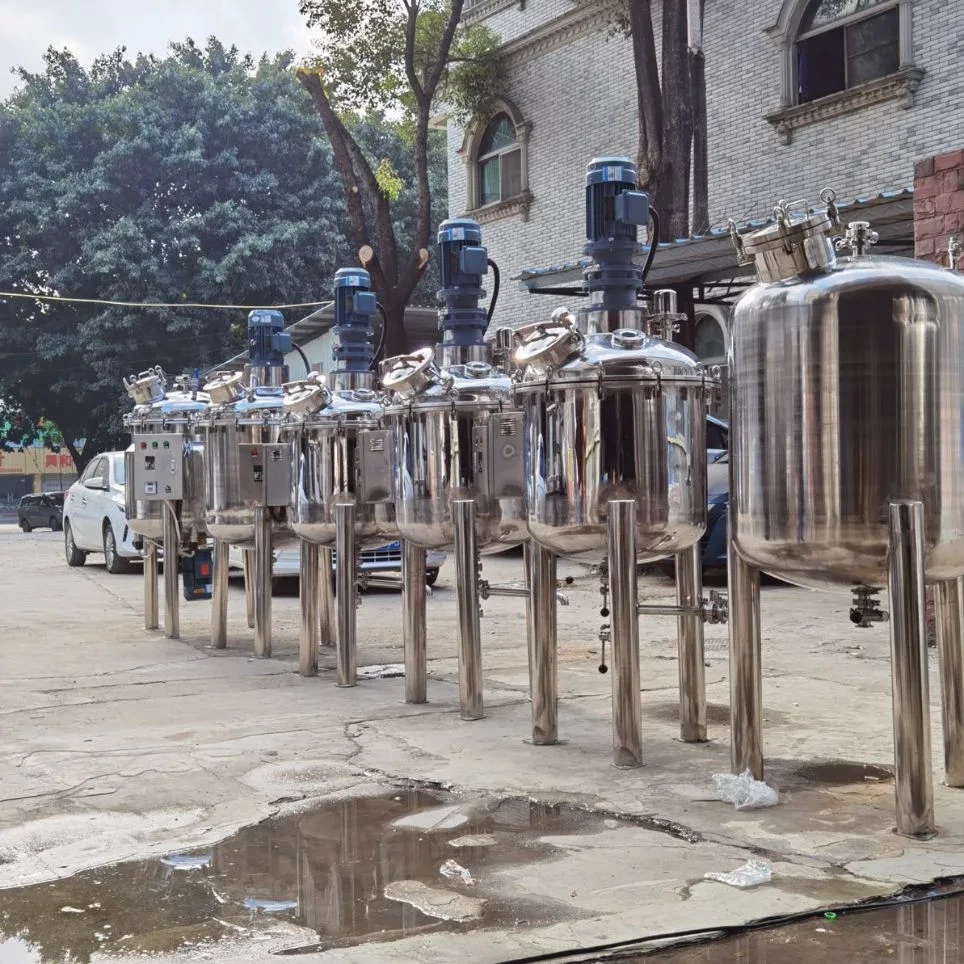

Laboratory Vacuum Emulsifying Tank Meisede Mixing Reactor
- After-sales Service:
- Online Support
- Mixer Type:
- Agitator
- Working:
- Customer Customization
Basic Info.
| Application | Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules | Stirring Type | Customer Customization |
| Application Area | Chemical | Certification | CE, ISO |
| Mixing Drum Shape | Drum | Layout Type | Verticle |
| Operating type | Cycle Operating | Additional Capabilities | Mixing, Heating, Cooling |
| Product Name | Chemical Reactor Mixing Tank | Condition | New |
| Transport Package | Plywood Case | Voltage | 380V/220V(Optional) |
| HS Code | 8479820090 | Specification | 50-5000L |
| Origin | China | Production Capacity | 200 Set/Month |
Packaging & Delivery
| Package Size | 100.00cm * 100.00cm * 200.00cm |
| Package Gross Weight | 900.000kg |
Product Description
| Volume(L) | Material | Plate thickness(MM) | Mixing power(KW) | Mixing speed | Heating power(KW) | Heating tube |
| 50 | 304/316L | 2.0/2.0 | 0.75 | 0-65rpm | 9 | 4.5KW*2pcs |
| 100 | 304/316L | 2.0/2.0 | 0.75 | 0-65rpm | 13.5 | 4.5KW*3pcs |
| 200 | 304/316L | 2.0/2.0 | 0.75 | 0-65rpm | 13.5 | 4.5KW*3pcs |
| 300 | 304/316L | 2.0/2.0 | 1.5 | 0-65rpm | 18 | 6KW*3pcs |
| 500 | 304/316L | 2.0/2.0 | 1.5 | 0-65rpm | 18 | 9KW*3pcs |
| 1000 | 304/316L | 2.0/3.0 | 3 | 0-65rpm | 27 | 12KW*3pcs |
| 2000 | 304/316L | 2.5/3.0 | 4 | 0-53rpm | 36 | 12KW*3pcs |
| 3000 | 304/316L | 3.0/4.0 | 5.5 | 0-53rpm | 36 | 15KW*3pcs |
| 5000 | 304/316L | 3.0/4.0 | 7.5 | 0-42rpm | 45 | 10KW*6pcs |

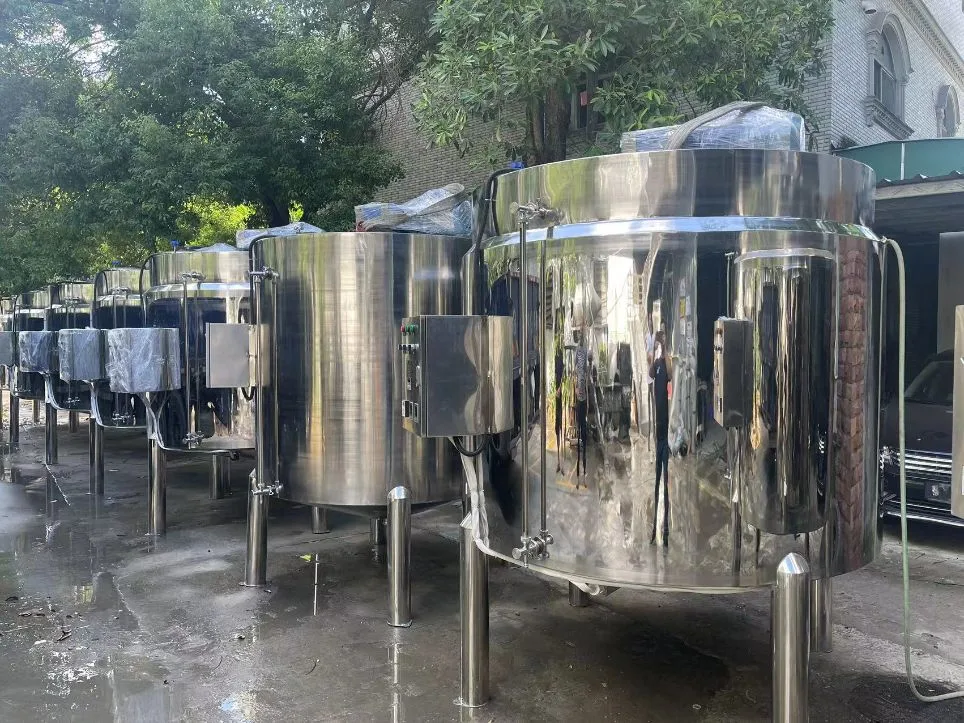

Source factory, available for wholesale and customization.
Multi-functional liquid paste mixing tank, emulsifier, reactor, fermentation tank, high-speed dispersing tank, vacuum defoaming mixer, liquid dispensing tank, crystallization concentration tank, emulsifying tank, mobile container, various types of silos, storage tank, cooking tank, sterilization tank, full set of automated material handling and conveying systems. Low energy consumption, high efficiency.

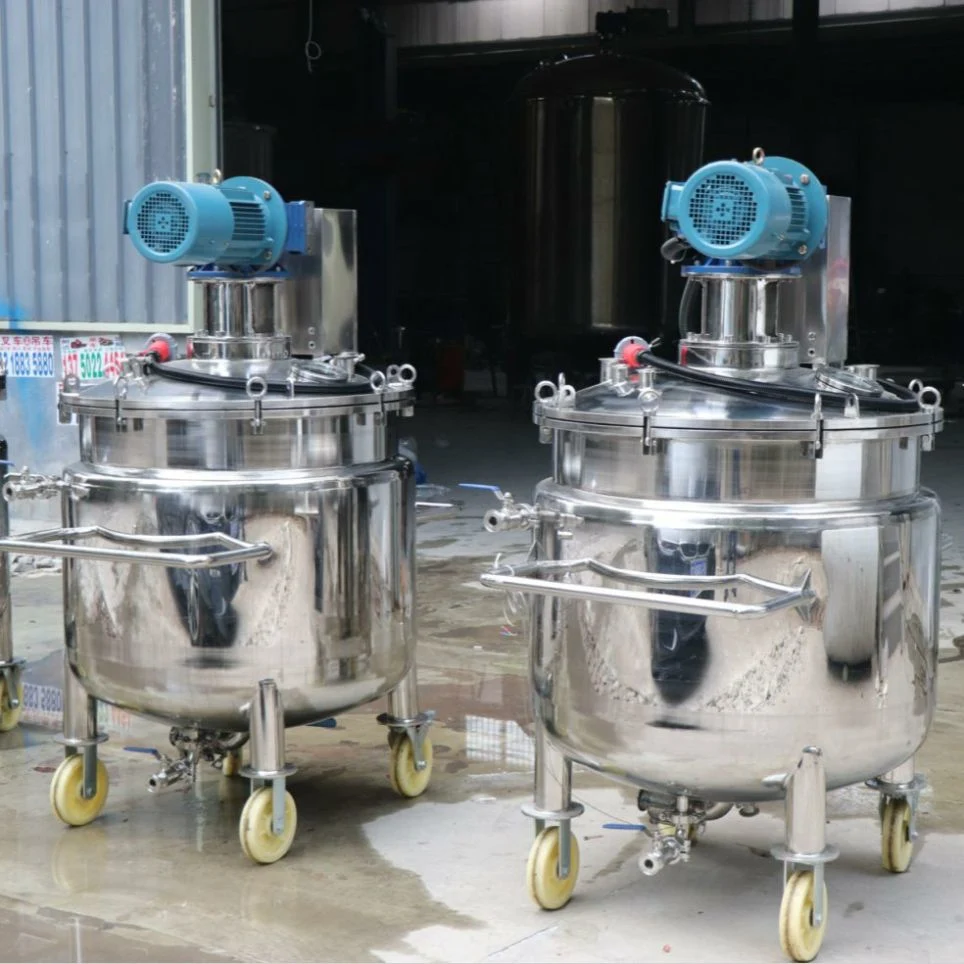

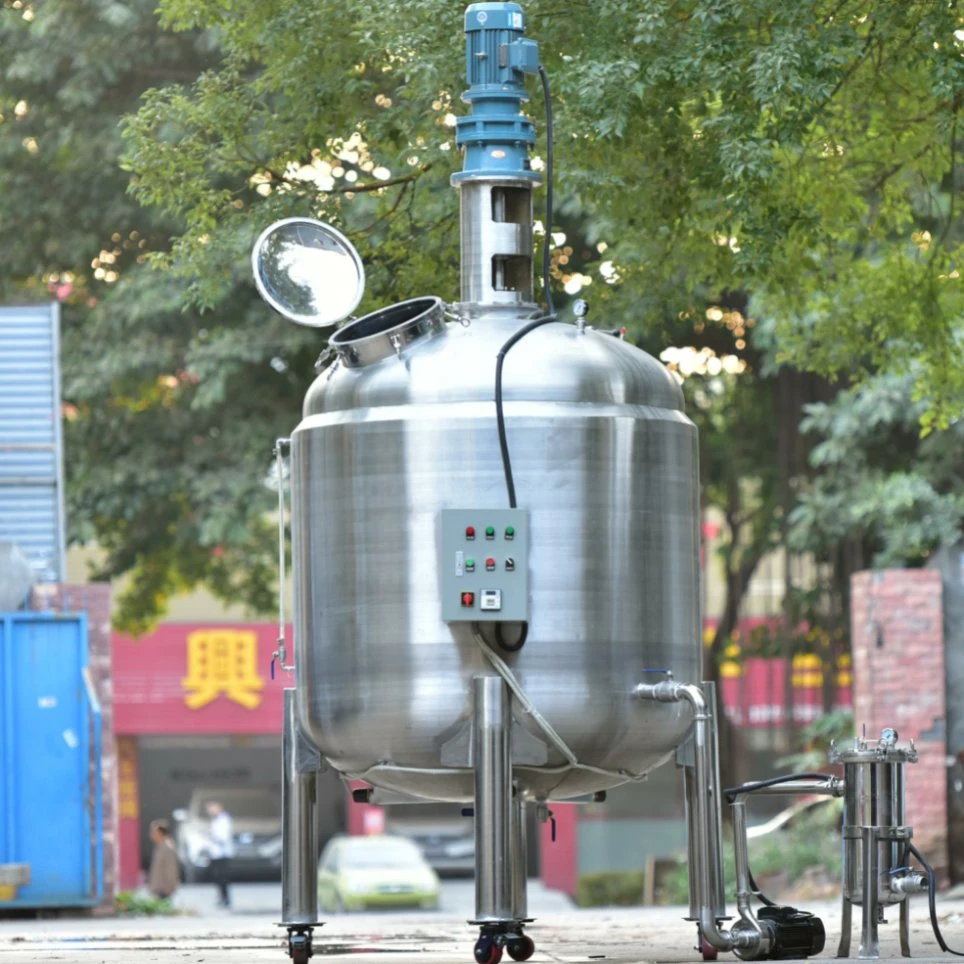

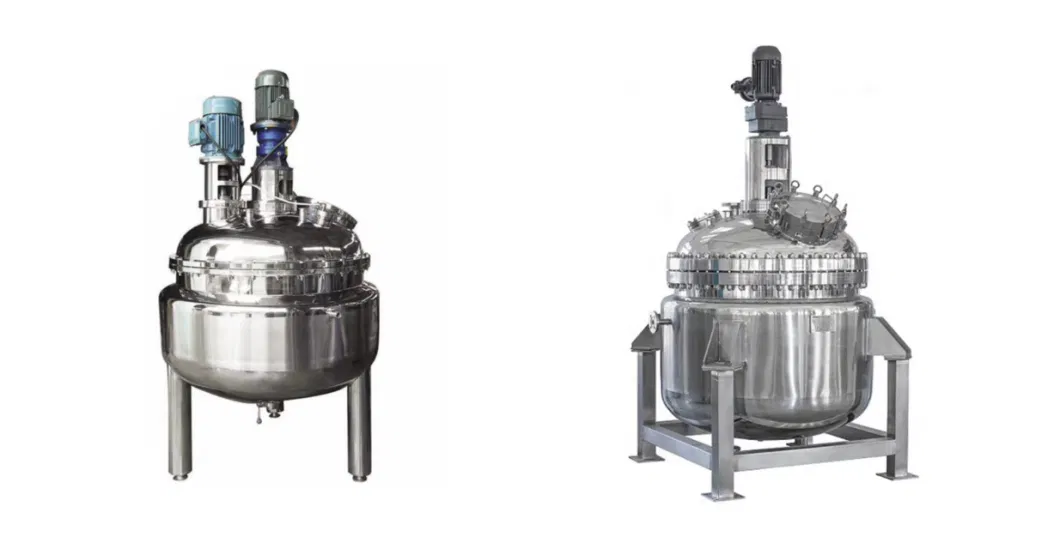

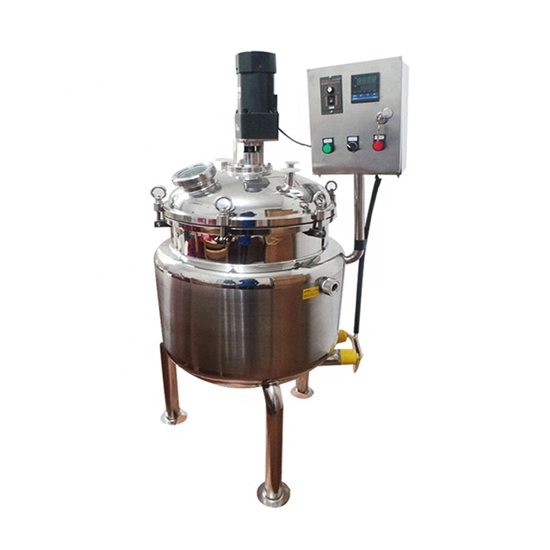

The mixing tank mainly consists of motor, reducer, stirring tank, stirring tank cover, mixer, support, transmission, shaft sealing device, electric control box and other components, but also according to process requirements configuration electric heating and steam heating interlayer and related devices, but also add cooling device. Mixing tank and mixing tank cover can be sealed flange connection or welding connection. Mixing tank and stirring tank cover can be equipped with feed discharge port, observation window, temperature measurement pressure port, steam fractionation, safety vent and other process tube holes on request. This machine can be used as standalone production, mass production of materials, can also be connected into a full set of automated production lines, the front of a variety of liquid, powder and powder quantitative plus local, mixing and mixing completed, and then connected to the automatic quantitative filling, sealing, labeling production line(small batch production can be connected semi-automatic filling, machine).

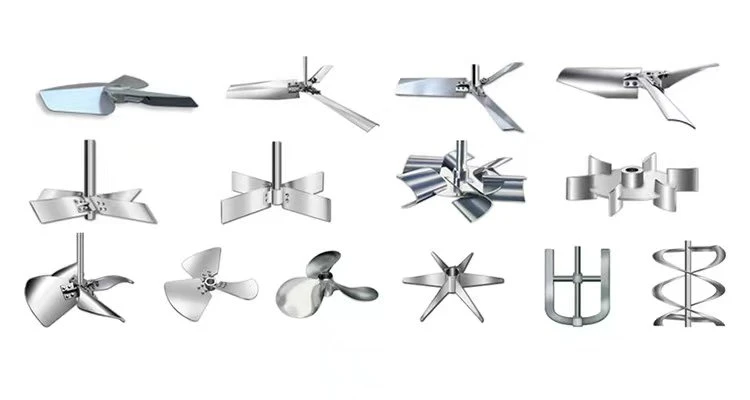

Mixing slurry can be selected with different mixing slurry according to the actual usage requirements of customers.
For more details, please consult our customer service.
Key Features:
- Motor and reducer for powerful and reliable operation
- Sturdy tank body and tank cover
- Equipped with an agitator for thorough mixing
- Support system for stability
- Transmission device for smooth operation
- Shaft sealing device for preventing leakage
- Electrical control box for easy operation
- Can be equipped with electric heating and steam heating jackets
- Cooling devices for temperature control
The mixing tank is widely used in the production of liquid and paste materials in the pharmaceutical,food,adhesive,polymer science and technology industries.Its function is to mix,homogenize,and react materials (partially incorporating powder and granular materials,with the condition that the final output is liquid or paste).
1, Food and beverage industry: blending oils,wines,dairy products,etc.
2, Daily chemical industry: shampoos,foaming bath gels,facial cleansers,sunscreens, laundry detergents,disinfectant hand sanitizers,skin creams,toothpaste,conditioners, etc.
3, Pharmaceutical industry: oral liquids,ointments,emulsions,petroleum jelly,cleaning and disinfecting solutions,and other liquid and paste materials.
4, Industrial chemical industry: white latex,universal adhesives,paints,chemical cleaning agents,chemical liquid additives,chemical solutions,high-polymer liquid new materials,etc.
Application Industry
