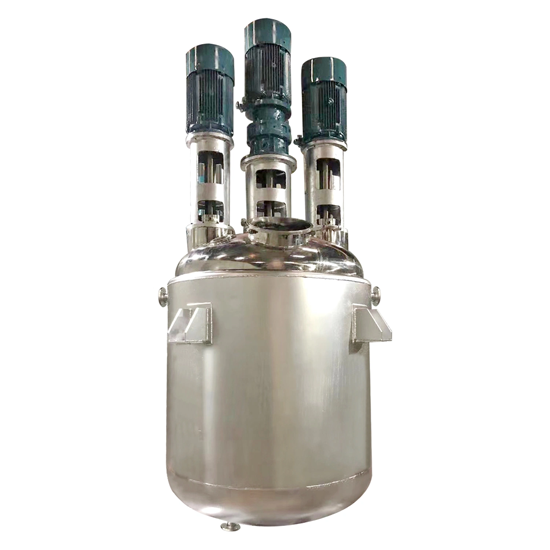

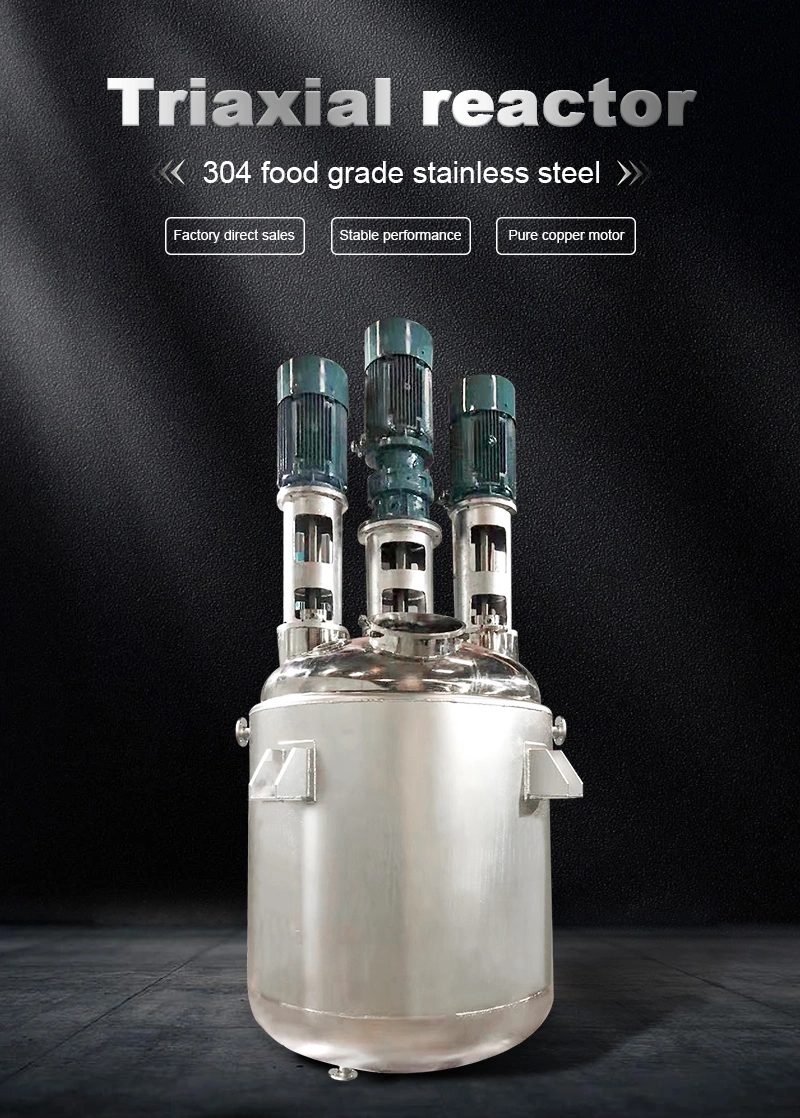

High and Low Speed Polymerization Reactor for The Production of Hot Melt Adhesives
- Material:
- Stainless Steel
- Capacity:
- >1000L
- Type:
- Tank Reactor
- After-sales Service:
- Online Support
- Warranty:
- 1 Year
- Pressure:
- Positive
Basic Info.
| Heating | Hot Water Heating | Agitator Model | Anchor Agitator |
| Automatic Grade | Automatic | Heat Transfer Structure | Jacketed |
| Mixing Power | 22kw | Condition | New |
| Sealing Form | Mechanical Seals | Mixing Speed | 60r/Min |
| High Speed Dispersion Speed | 1400r/Min | High Speed Dispersion Power | 30kw |
| Specification | 2000L | Transport Package | Wooden Case |
Product Overview
The multi-functional stirring and dispersing kettle combines low-speed powerful stirring and high-speed dispersion in one, which has good adaptability to medium and high viscosity and thixotropic materials. Stirring and dispersion can be carried out at the same time to obtain the desired effect. The equipment is suitable for mixing, dissolving, and dispersion of various materials and color mixing. The low-speed stirrer is an anchor type structure, the gap between the anchor-type stirring paddle and the cylinder wall of the tank is small, which plays the role of stirring the material and can achieve the requirement of paithe nt mixing process when used alone. High-speed dispersion is symmetrical distribution of double-axis type, and the dispersion plate is disk-shaped and serrated, which plays a role in dispersion of materials.

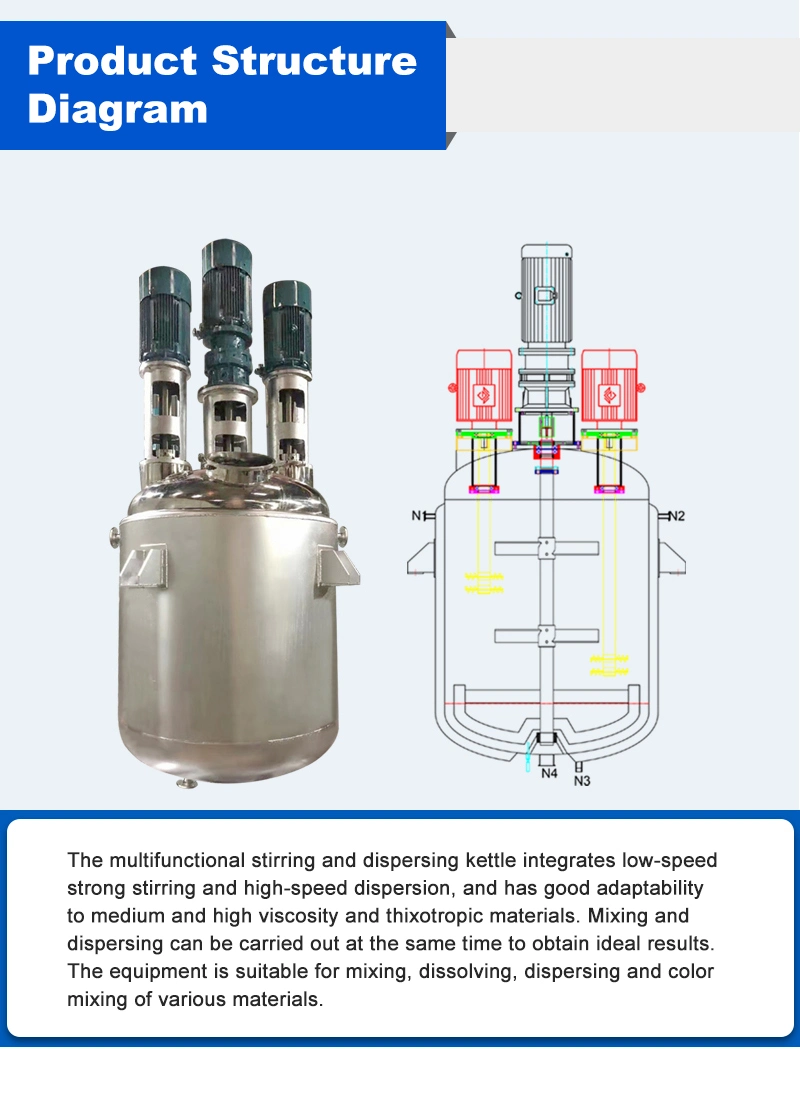

Product structure
The reaction kettle is composed of kettle body, head, sealing device, transmission device, mixing system/homogenization system/dispersion system, vacuum system, circulation system, refrigeration system, heating device, control system and other parts, and the products are diverse. According to the different product functions and applicable production scenarios, flexible packaging and configuration can be carried out. With different components, there are many names, such as resin kettle, polymerization kettle, dissolution kettle, distillation kettle Emulsion kettle, enzymolysis tank, etc.
Technical parameter
| Volume(L) | Cylinder Size(mm) | Mixing power(KW) | Mixing speed(rpm) | Dispersed power(KW) | Dispersed speed(rpm) |
| 800 | 1000 | 7.5 | 60 | 11 | 1400 |
| 1000 | 1100 | 11 | 60 | 18.5 | 1400 |
| 2000 | 1300 | 22 | 60 | 30 | 1400 |
| 3000 | 1500 | 30 | 60 | 45 | 1400 |
| 4000 | 1700 | 45 | 60 | 55 | 1400 |
| 5000 | 1900 | 55 | 60 | 75 | 1400 |
| 10000 | 2300 | 75 | 60 | 110 | 1400 |
Note: The technical parameters of the reaction kettle in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.

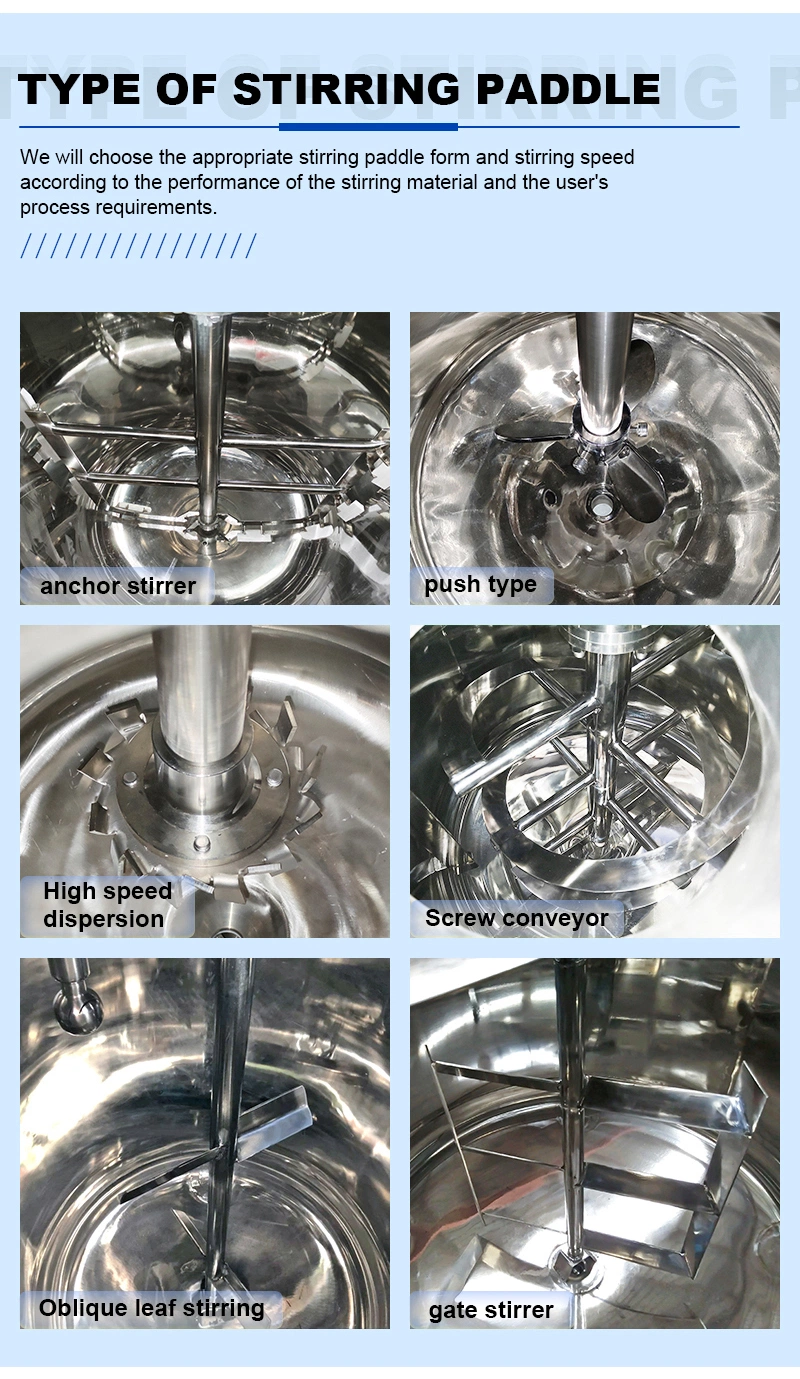

According to the material characteristics and the user's process requirements, our company will recommend the proper type of agitator and mixing speed. The agitators suitable for low viscosity and medium viscosity fluids include propelling agitators, turbine agitators, inclined blade agitators, Brumakin agitators, plate and frame agitators, three blade backward curved agitators, MIG agitators, etc. The agitators suitable for high viscosity and ultra-high viscosity fluids include anchor type agitator, frame type agitator, spiral belt type agitator and screw type agitator. The combined agitator can also be made according to the technological requirements of users.
