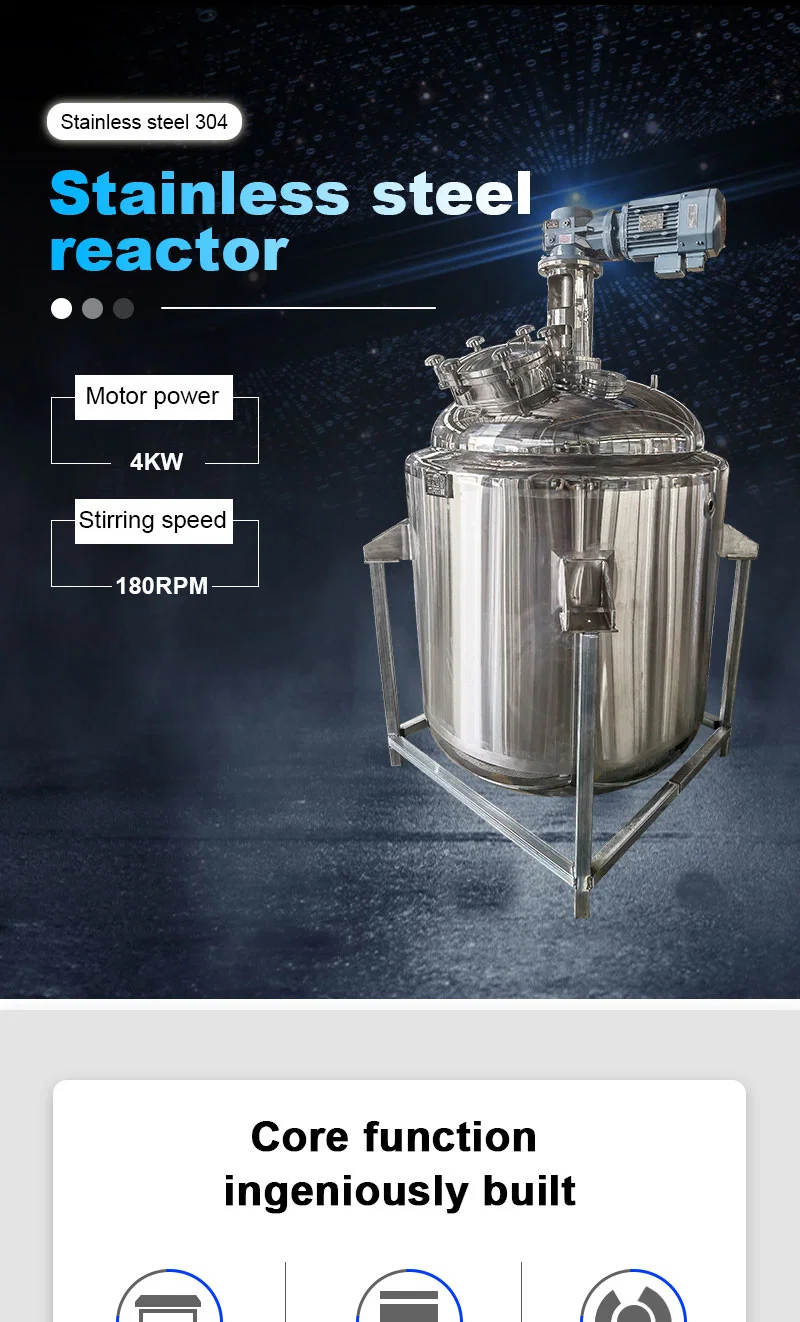

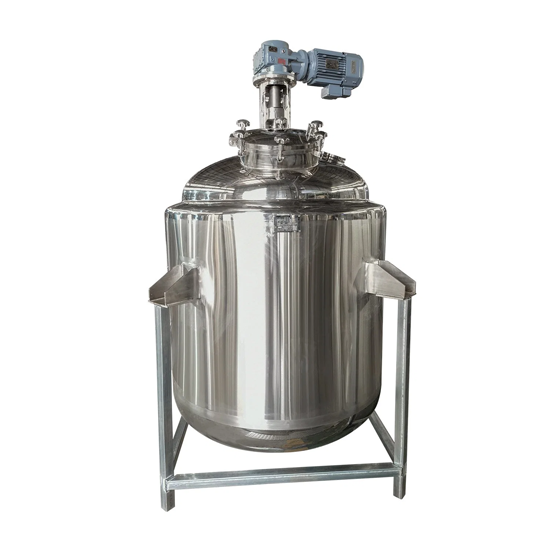

Continuously Stirred Electrically Heated Acrylic Emulsion Reactor
- Material:
- Stainless Steel
- Capacity:
- 501-1000L
- Type:
- Tank Reactor
- After-sales Service:
- Online Support
- Warranty:
- 1 Year
- Structure:
- Three Layers with Jacket
Basic Info.

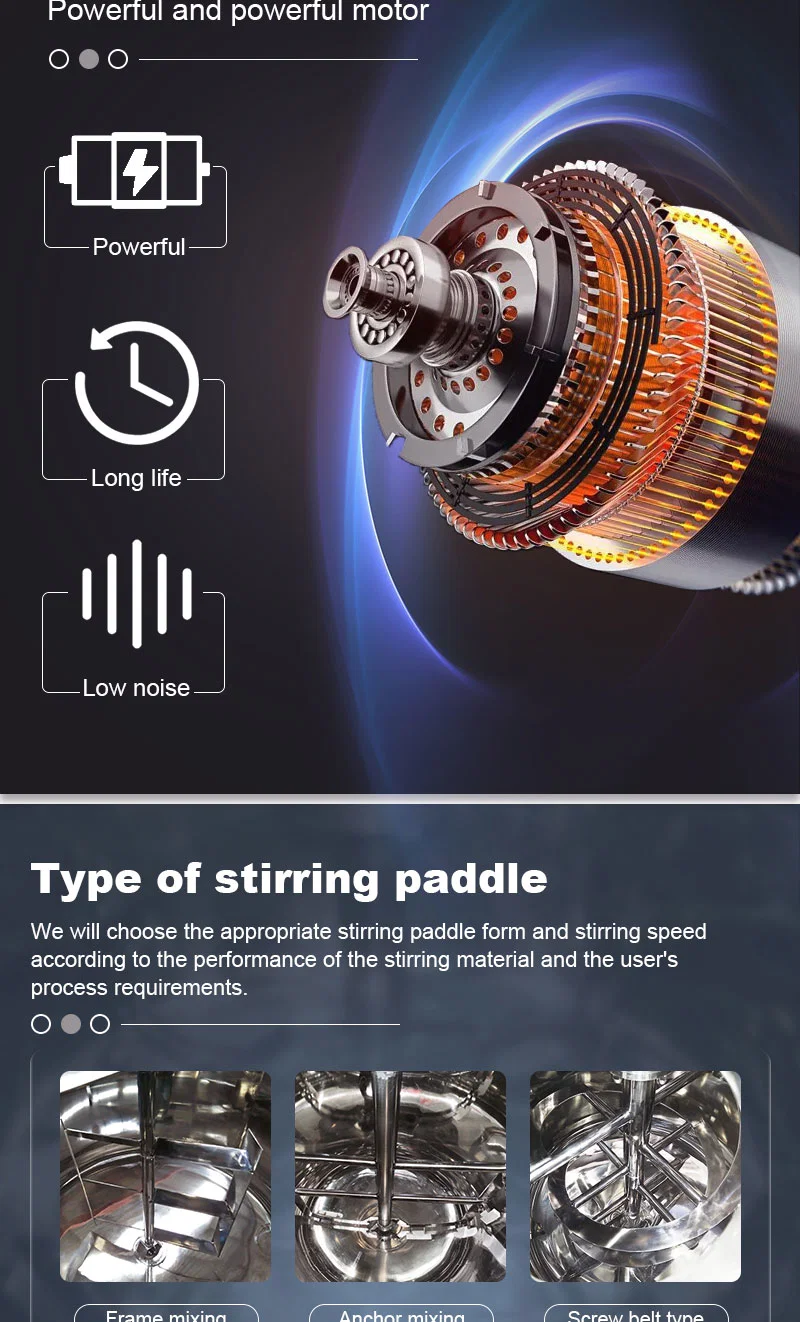

| Agitator Model | Anchor Mixing Paddle | Pressure | Atmospheric |
| Heating | Hot Water Heating | Tower Reactor Type | Customer Customization |
| Automatic Grade | Automatic | Heat Transfer Structure | Jacketed |
| Power | 3 Kw | Condition | New |
| Cylinder Thickness | 4mm | Sealing Form | Mechanical Seals |
| Heating Method | Steam Heating | Voltage | 380V |
| Working Pressure | Atmospheric Pressure | Product Mix | Three Story Vertical |
| Accessories | Multifunctional Nozzles, Mirrors, etc | Volume | 1000L |
| Applicable Fields | Food, Chemical, and Beverage Processing | Speed | 80 Rpm |
| Transport Package | Wooden Case | Cylinder Size | 1050mm*1200mm*1500mm |
| Specification | 1000L | Product Appearance | External Surface Wire Drawing, Upper and Lower Hea |
Product Overview
Reactor is a kind of pressure vessel used to complete the chemical or physical reactions produced in the process of material mixing, hydrolysis, neutralization, vulcanization, nitrification, hydrogenation, alkylation, polymerization, condensation and so on.
Product structure
The reaction kettle is composed of kettle body, head, sealing device, transmission device, mixing system/homogenization system/dispersion system, vacuum system, circulation system, refrigeration system, heating device, control system and other parts, and the products are diverse. According to the different product functions and applicable production scenarios, flexible packaging and configuration can be carried out. With different components, there are many names, such as resin kettle, polymerization kettle, dissolution kettle, distillation kettle Emulsion kettle, enzymolysis tank, etc.
Technical parameter
| Volume(L) | Cylinder Size(mm) | Motor Power(KW) | Speed(rpm) | Material |
| 50 | 300 | 0.55 | 30-180 | SUS304 / SUS316L |
| 100 | 500 | 0.75 | 30-180 | SUS304 / SUS316L |
| 200 | 600 | 1.1 | 30-180 | SUS304 / SUS316L |
| 300 | 700 | 1.5 | 30-180 | SUS304 / SUS316L |
| 500 | 900 | 2.2 | 30-180 | SUS304 / SUS316L |
| 800 | 1000 | 3 | 30-180 | SUS304 / SUS316L |
| 1000 | 1100 | 4 | 30-180 | SUS304 / SUS316L |
| 2000 | 1300 | 5.5 | 30-180 | SUS304 / SUS316L |
| 3000 | 1500 | 7.5 | 30-180 | SUS304 / SUS316L |
| 4000 | 1700 | 7.5 | 30-180 | SUS304 / SUS316L |
| 5000 | 1900 | 11 | 30-180 | SUS304 / SUS316L |
| 10000 | 2000 | 15 | 30-180 | SUS304 / SUS316L |
Note: The technical parameters of the reaction kettle in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.
