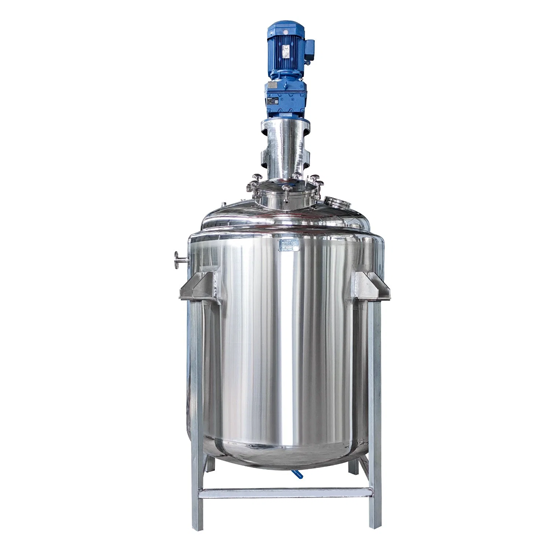

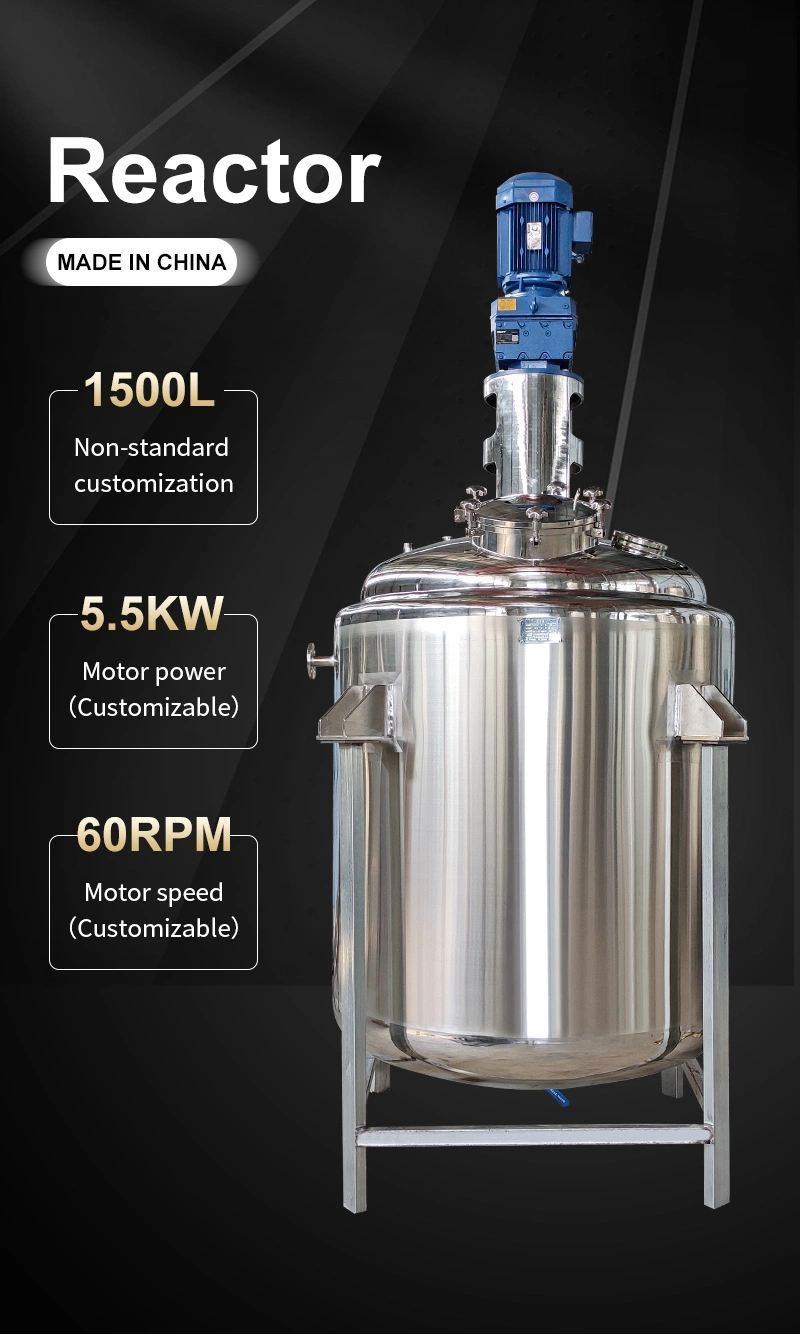

1500L Chemical Stainless Steel Reactor for Printing Ink Production
- Type:
- Tank Reactor
- After-sales Service:
- Online Support
- Warranty:
- 1 Year
Basic Info.
| Capacity | >1000L | Material | Stainless Steel |
| Pressure | Atmospheric | Structure | Vertical Three-Layer |
| Tower Reactor Type | Customer Customization | Agitator Model | Anchor Agitator |
| Heat Transfer Structure | Jacketed | Heating | Hot Water Heating |
| Condition | New | Automatic Grade | Automatic |
| Speed | 60r/Min | Power | 5.5kw |
| Mixing Paddle Type | Anchor Mixing Paddle | Sealing Form | Mechanical Seal |
| Processing Customization | Yes | Inner Pot Size | 1200mm |
| Jacket Size | 1300mm | Applicable Fields | Chemical, Food and Beverage, Biopharmaceutical |
| Applicable Materials | Liquid Slurry | Heating Method | Steam Heating |
| Texture of Material | 304 Stainless Steel | Place of Use | Factory |
| Transport Package | Wooden Case | Specification | 1500L |
Packaging & Delivery
| Package Size | 100.00cm * 100.00cm * 120.00cm |
| Package Gross Weight | 1800.000kg |
Product Overview
Reactor is a kind of pressure vessel used to complete the chemical or physical reactions produced in the process of material mixing, hydrolysis, neutralization, vulcanization, nitrification, hydrogenation, alkylation, polymerization, condensation and so on.
Product structure
The reaction kettle is composed of kettle body, head, sealing device, transmission device, mixing system/homogenization system/dispersion system, vacuum system, circulation system, refrigeration system, heating device, control system and other parts, and the products are diverse. According to the different product functions and applicable production scenarios, flexible packaging and configuration can be carried out. With different components, there are many names, such as resin kettle, polymerization kettle, dissolution kettle, distillation kettle Emulsion kettle, enzymolysis tank, etc.
Technical parameter
| Volume(L) | Cylinder Size(mm) | Motor Power(KW) | Speed(rpm) | Material |
| 50 | 300 | 0.55 | 30-180 | SUS304 / SUS316L |
| 100 | 500 | 0.75 | 30-180 | SUS304 / SUS316L |
| 200 | 600 | 1.1 | 30-180 | SUS304 / SUS316L |
| 300 | 700 | 1.5 | 30-180 | SUS304 / SUS316L |
| 500 | 900 | 2.2 | 30-180 | SUS304 / SUS316L |
| 800 | 1000 | 3 | 30-180 | SUS304 / SUS316L |
| 1000 | 1100 | 4 | 30-180 | SUS304 / SUS316L |
| 2000 | 1300 | 5.5 | 30-180 | SUS304 / SUS316L |
| 3000 | 1500 | 7.5 | 30-180 | SUS304 / SUS316L |
| 4000 | 1700 | 7.5 | 30-180 | SUS304 / SUS316L |
| 5000 | 1900 | 11 | 30-180 | SUS304 / SUS316L |
| 10000 | 2000 | 15 | 30-180 | SUS304 / SUS316L |
Note: The technical parameters of the reaction kettle in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.

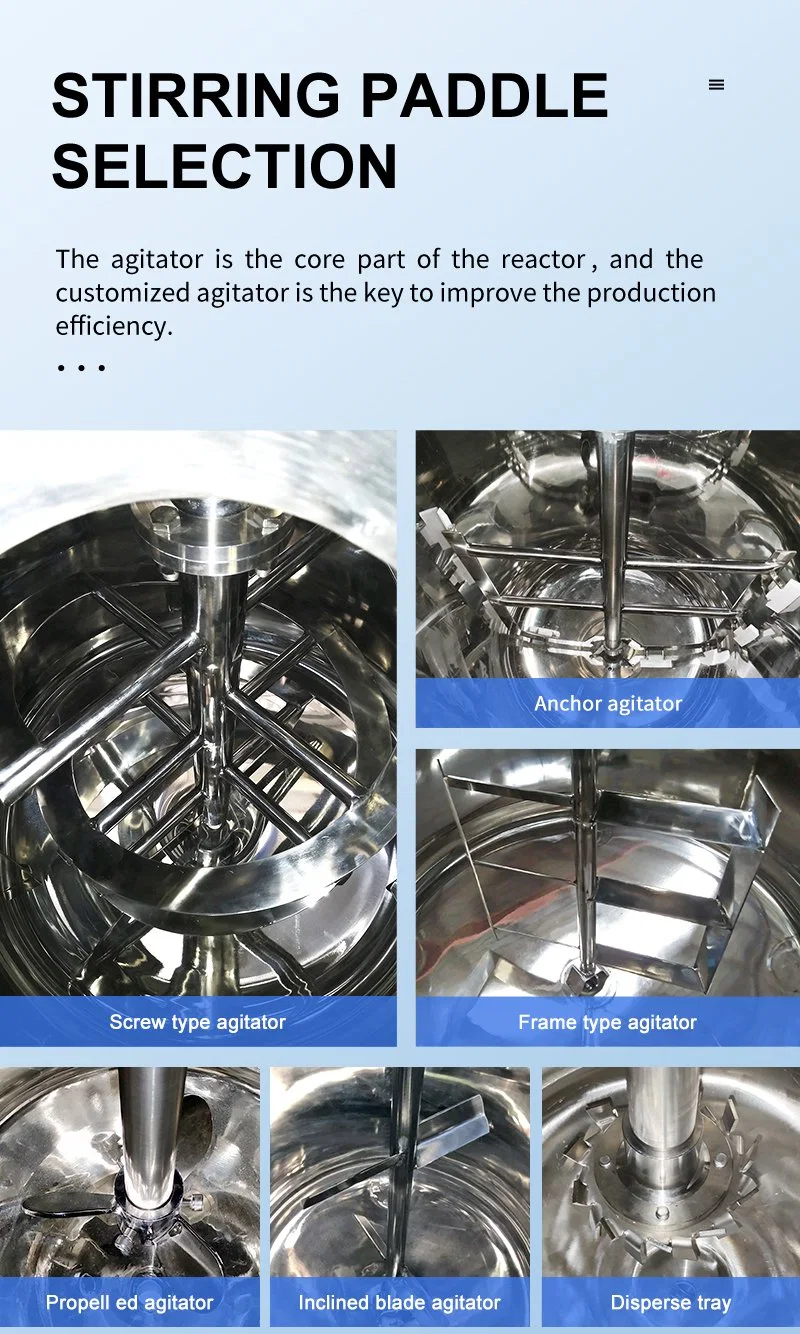

According to the material characteristics and the user's process requirements, our company will recommend the proper type of agitator and mixing speed. The agitators suitable for low viscosity and medium viscosity fluids include propelling agitators, turbine agitators, inclined blade agitators, Brumakin agitators, plate and frame agitators, three blade backward curved agitators, MIG agitators, etc. The agitators suitable for high viscosity and ultra-high viscosity fluids include anchor type agitator, frame type agitator, spiral belt type agitator and screw type agitator. The combined agitator can also be made according to the technological requirements of users.
