2000 bph Grape Wine Production Line
- Size:
- 1600x1400x1900mm
- Capacity:
- 4000BPH
- Weight:
- 1600kg
- Type:
- FILLING MACHINE
- Voltage:
- 220v,380v, or base on customer's requirements
- Driven Type:
- Electric
- Automatic Grade:
- Automatic

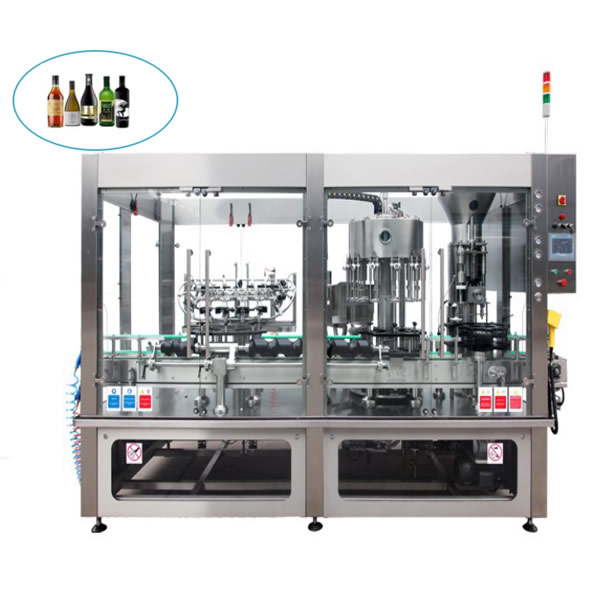

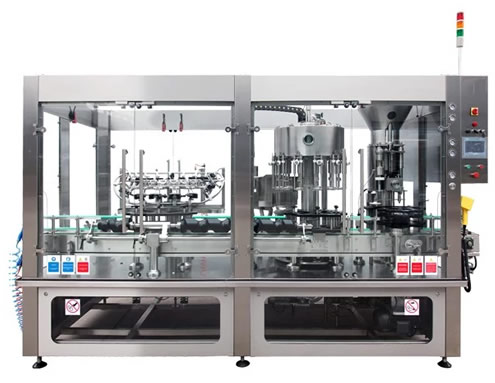

WINE FILLING 3 IN 1 MACHINE
Performance:
- It is of complete function for wine bottling, integrating rinsing, nitrogen injecting, filling, corking in one unit.
- Machine starts when bottle comes, and stops when no bottle coming or bottle stuck.
- Lifting insert rinsing design, the rinsing nozzles can be inserted into bottles 100mm to achieve rinsing effect.
- No bottle, no nitrogen filling, and nitrogen supply shut off automatically
- No bottle no filling, no bottle no air sucking.
- Nitrogen protection device in the tank to protect the liquid from oxidating.
- Cork residue sucking- air vacuuming-nitrogen filling- air vacuuming.
- After air vacuuming, the pressure of bottle inside can be reach -5Kpa~-20Kpa.
- Corking squeezing device adopts independent squeezing head to ensure the high corking quality.
CAPSULE HEAT-SHRINKING MACHINE
Performance:
● This machine is used to seal the aluminum foil caps onto bottles
● The bottle support device is flexible, easy operate and maintain.
● Easy-to-change backup parts for bottle cap roller.
● Different bottle top and neck diameters could be suitable on similar machines by doing small adjusting on the rollers.
● Rolling result could be perfected by slightly modifying the rollers.
● The bottle support device is flexible, easy operate and maintain.
● Bottles with different heights can be used in this machine.
● Equipped with overload clutch protection device to protect bottles and the machine.
WIND DRYING MACHINE
Performance:
- This machine is applicable for drying the bottles before self-adhesive labels are applied.
- This machine is reliable and can be used in production lines with high speed.
- The wind direction can be adjusted, depending on the area to be dried.
- Almost every shape and size of bottle can be used in this machine
- Low energy cost.
LABELING MACHINE
Performance:
- The machine is equipped with servo motor and PLC controller, achieves high labeling accuracy.
- Equipped with human-computer interface, and real digital control.
- It is applicable for flat bottle, square bottle, round bottle and other packaging container to be labeled by wrap-around label, front label, back label or neck label.
- The labeling head can be 8 dimentionally adjusted, the cone type bottle can be labeled easily by adjusting the labeling head manually.
- The positioning labeling function can be easily achieved for round bottles in linear labeling machine.
- It is simple and quick to make adjustment for product size changes.
- It is suitable for cone type bottle, the labeling effect can be achieved by changing few parts.

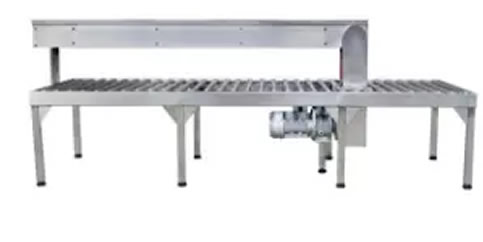

CARTON PACKING STATION
This machine is used to pack and convey carbon boxes.
- Save work space and manpower for users.
- Easy to operate and maintain.
- The conveyor chain is made of stainless steel.
- Dimensions: 2500*740*950 millimeter.
