Vacuum emulsifier structure:

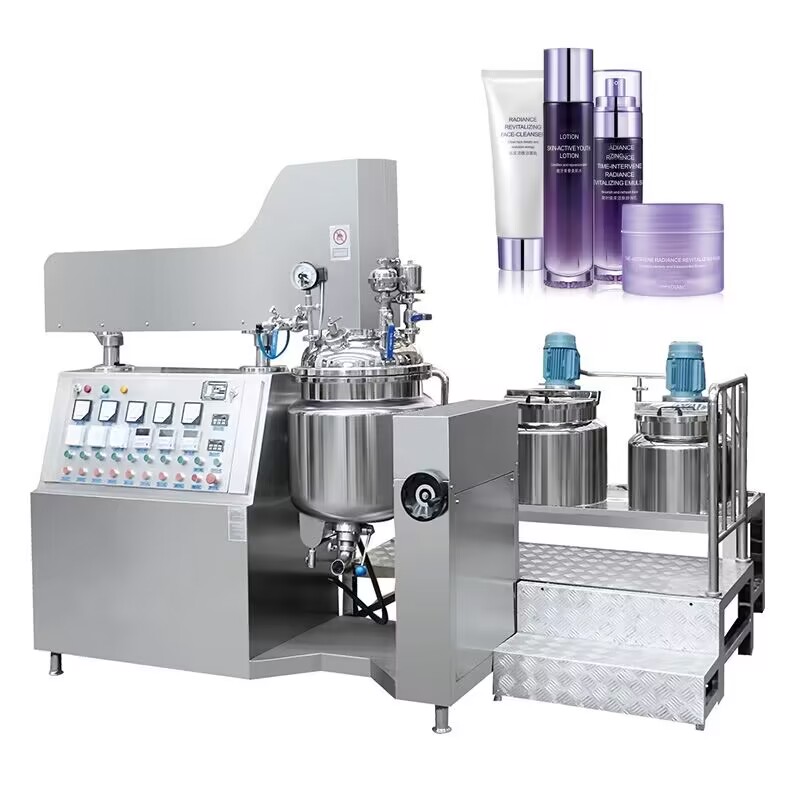

The vacuum homogenizing emulsifier unit consists of an emulsifying pot (liftable pot cover, flip pot body), a water pot, an oil pot, vacuum equipment, a heating and temperature control system, a cooling system, pipelines, an electrical control system, etc.

After the material is heated, stirred and mixed in the water pot and the oil pot, it is sucked into the emulsifying pot by a vacuum pump, and after the central stirring at the top of the emulsifying pot, the polytetrafluoroethylene scraper always fits the pot shape, sweeps away the sticky material on the wall, and the scraped material continuously forms a new interface, and then after the shearing, compression and folding of the reverse blade, it is mixed and mixed and flows down to the homogenizer under the pot body. The material then undergoes the strong shearing, impact, turbulence and other processes between the high-speed rotating cutting wheel and the cutting sleeve. The material is cut in the shear gap and quickly broken into 200nm-2um particles. Because the emulsifying pot is in a vacuum state, the material is broken in the mixing process and is pumped away in time.

Emulsifying Machine Features:

The cover of the material pot and its mixing and homogenizing system are active lifting type. The materials in the water pot and oil pot can be directly sucked into the emulsifying pot through the transportation pipeline under vacuum, and the discharging method is to flip and dump the emulsifying pot body. The heat-conducting medium in the pot interlayer is heated by the electric heating tube to achieve the heating of the material. The heating temperature can be set arbitrarily and actively controlled. The material can be cooled by connecting cooling water in the interlayer, which is simple and convenient to operate. There is an insulation layer outside the interlayer. Homogenizing mixing and paddle mixing can be used separately or at the same time. Material micronization, emulsification, mixing, mixing, and dispersion can be completed in a short time. The parts in contact with the material are made of high-quality stainless steel (made of SUS316L material, the inner surface is mirror polished, the vacuum mixing equipment is hygienic and clean, and the bottom of the pot is a pot bottom valve without dead intestines, which is suitable for first-class aseptic control workshops of GMP standards. It is an ideal cream, cream, and ointment production equipment).
