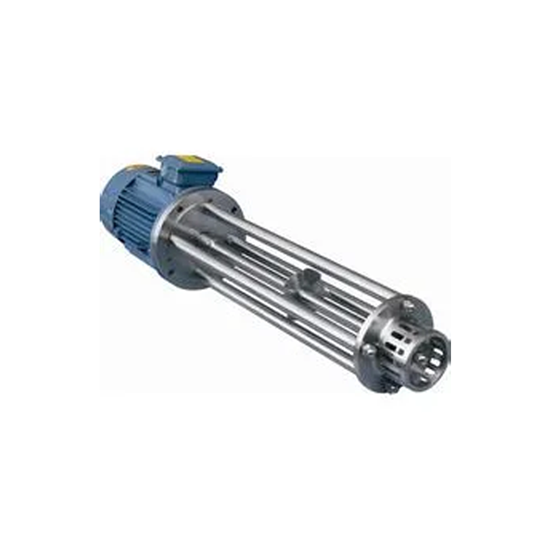

High Shear Emulsifier is fixed on various containers and can be made into a closed vacuum type. It can be used in conjunction with other kettle equipment to realize system automation production. Through the method of mechanical external force, the particle size of liquid-liquid and solid-liquid materials is narrowed, so that one phase is evenly distributed in another or more phases, so as to achieve the effect of fine homogenization, dispersion and emulsification, thereby forming a stable emulsion state. The working head is made of new bidirectional materials and refined stainless steel forgings. There are two types: top and bottom, and three installation methods are adopted: vertical, offset and inclined. In pressure application conditions, double-end mechanical seals are adopted with sealed self-lubricating system.

Product features:

1. Independently developed and designed working head structure, stable operation, low maintenance cost, and easy cleaning.

2. The emulsifier is fixed on a pneumatic lifting bracket, which is easy to move and simple to operate.

3. The rotor and stator are made of a whole piece of forging material CNC machining center, the emulsifier head has high precision, and the front cutting homogenization and emulsification are strong.

4. The material contact part can be made of stainless steel 304, 316L and titanium alloy.

Working principle:

The manual lifting emulsifier has precise processing technology, and the rotor and stator are highly coordinated. The powerful motor rotates at high speed to form a vacuum between the rotor and stator, and the material is sucked from the top and bottom of the rotor and stator. The strong kinetic energy makes the rotor produce a very high linear speed, so that the material is ejected after strong impact, crushing, centrifugal extrusion, liquid layer friction, and strong shearing between the rotor and stator. Under the action of various different directional forces, strong turbulence is generated. The material is repeatedly depolymerized, dispersed, homogenized, refined, and sheared for a certain period of time under the appropriate amount of emulsifier and mature technology to produce a stable emulsion.
