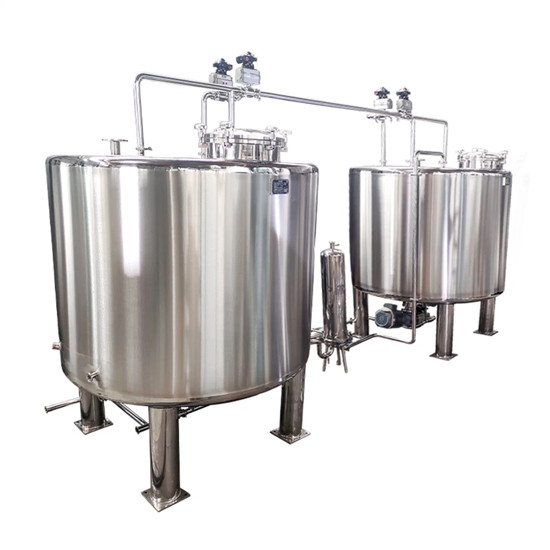

Stainless Steel Mixing Tank Used in Food Industry
- Application:
- Liquid with Suspended Solids, Viscous Fluid, Liquid
- After-sales Service:
- Warranty Period of One Year
- Warranty:
- Warranty Period of One Year
- Mixer Type:
- Agitator
- Working:
- High Speed Mixer
- Stirring Type:
- Customer Customization
Basic Info.
| Application Area | Pharmaceutical | Certification | ISO |
| Mixing Drum Shape | Customer Customization | Layout Type | Verticle |
| Operating type | Cycle Operating | Additional Capabilities | Customer Customization |
| Motor Power | 2.2kw | Condition | New |
| Cylinder Diameter | 1600mm | Condition | New |
| Material | SUS316L | Sealing Form | Magnetic Seal |
| Source of Goods | Factory Direct Deal | Cylinder Thickness | 5mm |
| Quarantee Period | 1 Year | Applicable Materials | Liquid Paste |

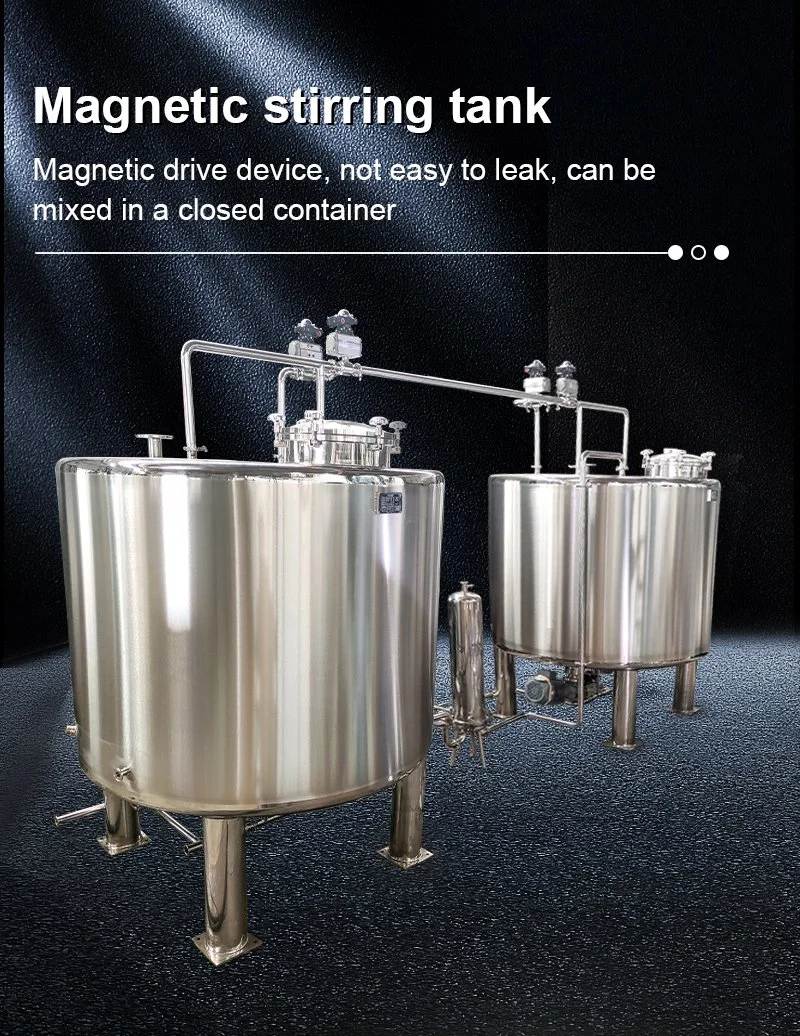

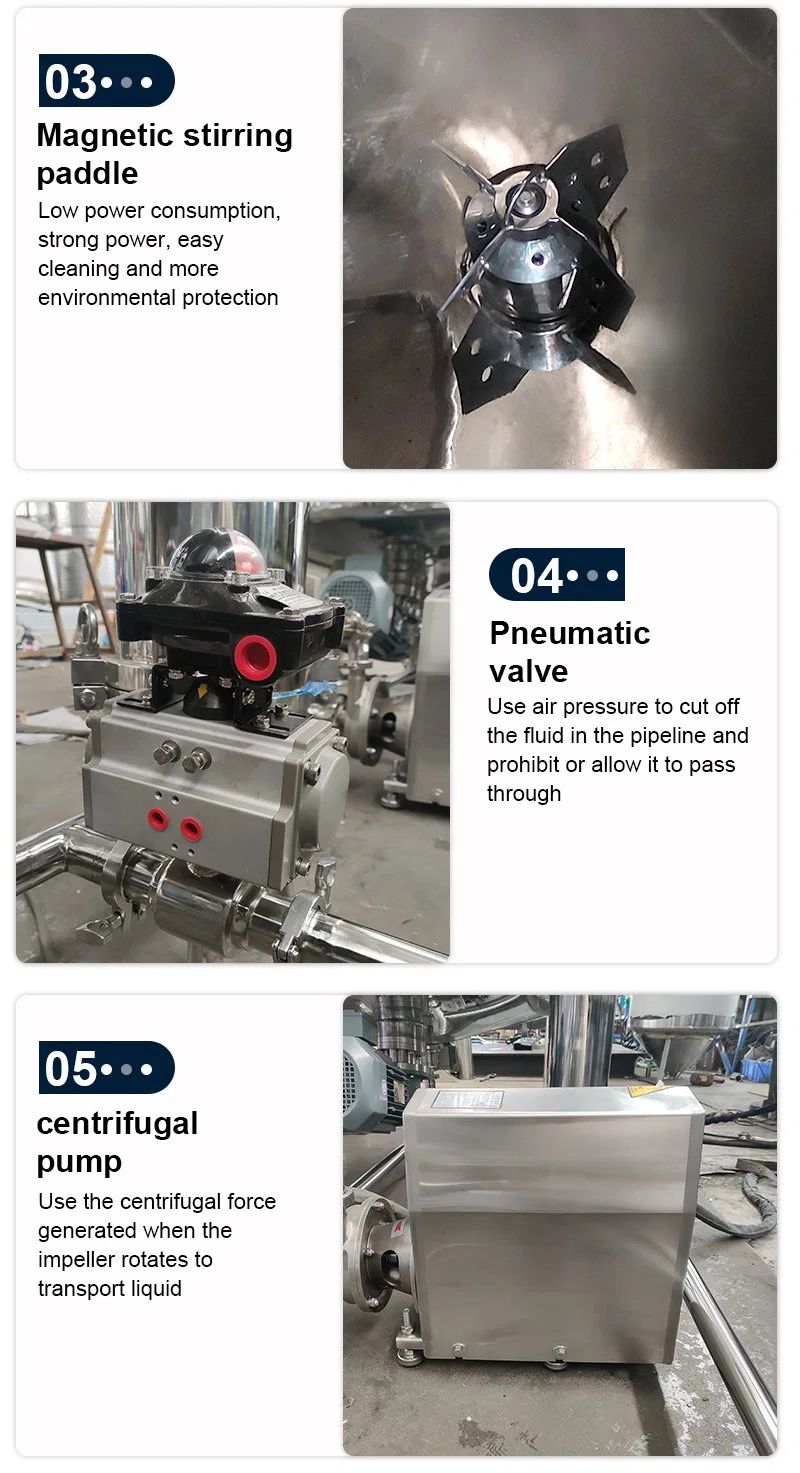

| Device Mode | Fixed | Mixing Paddle Type | Magnetic Stirring Paddle |
| Specification | 2000L | Thermal Insulation Material | Aluminium Silicate |
| Origin | China | Transport Package | Wooden Case |
Product Overview
Mixing tank is mainly used for mixing, mixing, blending and homogenizing materials. Stainless steel mixing tank effectively shortens the mixing time, saves labor and speeds up production. It is the main equipment for modern industrial production.
Product structure
Mixing tank is composed of mixing tank body, mixing tank cover, mixer, support, transmission device, shaft seal device, etc. it can also beequipped withheating device or cooling device according to the process requirements.
Technical parameter
| Volume(L) | Cylinder Size(mm) | Motor Power(KW) | Speed(rpm) | Material |
| 50 | 300 | 0.75 | 30-180 | SUS304 / SUS316L |
| 100 | 500 | 0.75 | 30-180 | SUS304 / SUS316L |
| 200 | 600 | 1.1 | 30-180 | SUS304 / SUS316L |
| 300 | 700 | 1.5 | 30-180 | SUS304 / SUS316L |
| 500 | 900 | 2.2 | 30-180 | SUS304 / SUS316L |
| 800 | 1000 | 3 | 30-180 | SUS304 / SUS316L |
| 1000 | 1100 | 4 | 30-180 | SUS304 / SUS316L |
| 2000 | 1300 | 5.5 | 30-180 | SUS304 / SUS316L |
| 3000 | 1500 | 7.5 | 30-180 | SUS304 / SUS316L |
| 4000 | 1700 | 7.5 | 30-180 | SUS304 / SUS316L |
| 5000 | 1900 | 11 | 30-180 | SUS304 / SUS316L |
| 10000 | 2000 | 15 | 30-180 | SUS304 / SUS316L |
Note: The technical parameters of the mixing tank in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.
