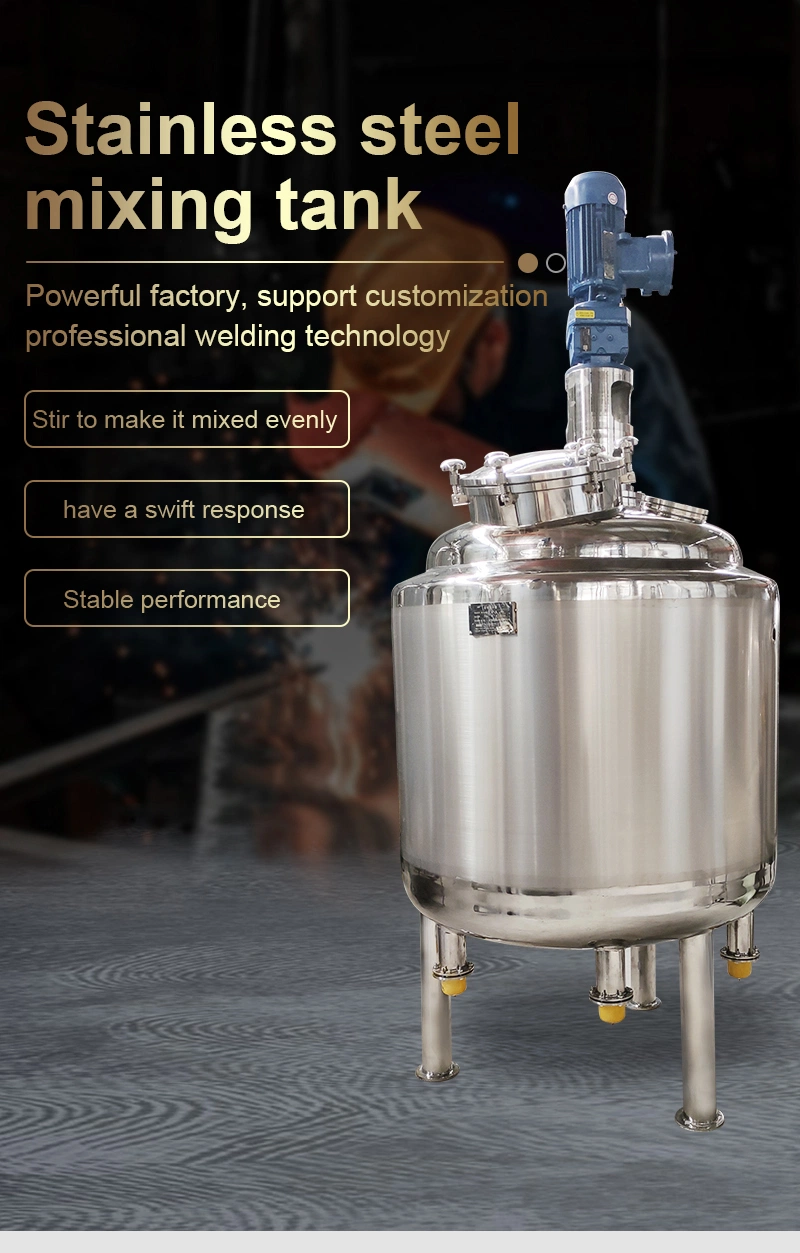

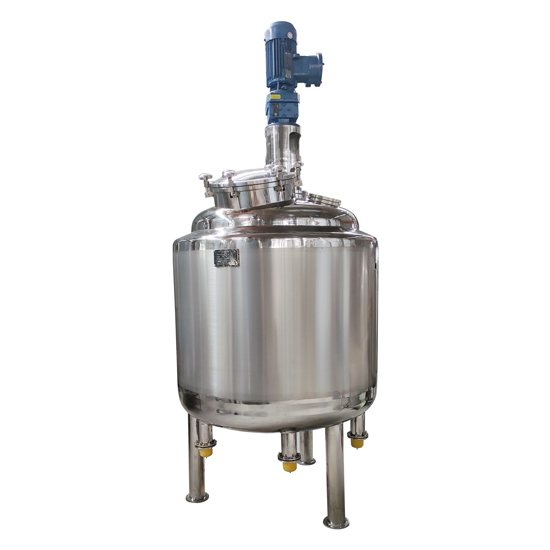

Stainless Steel Electric Heating Mixing Tank for The Production of Flavor Liquid
- Application:
- Liquid with Suspended Solids, Viscous Fluid, Liquid
- After-sales Service:
- Online Support
- Warranty:
- 1 Year
- Mixer Type:
- Mixing Tank
- Working:
- High Speed Mixer
- Stirring Type:
- Diving
Basic Info.
| Application Area | Daily Chemical | Certification | ISO |
| Mixing Drum Shape | Double Cone | Layout Type | Verticle |
| Operating type | Cycle Operating | Additional Capabilities | Customer Customization |
| Motor Power | 1.5kw | Condition | New |
| Sealing Form | Magnetic Seal | Speed | 130rpm |
| Heating Mode | Electric Heating | Electric Heating Power | 6kw |
| Cylinder Thickness | 5mm | Cylinder Diameter | 900mm |
| Equipment Material | SUS 304 | Device Mode | Fixed |
| Applicable Materials | Mixing of Liquid Materials | Thermal Insulation Material | Aluminium Silicate |
| Source of Goods | Factory Direct Deal | Quality Guarantee Period | 1 Year |
| Transport Package | Wooden Case | Mixing Paddle Type | Anchored Agitator |
| Origin | China | Specification | 500L |
Product Description
Product Overview
Mixing tank is mainly used for mixing, mixing, blending and homogenizing materials. Stainless steel mixing tank effectively shortens the mixing time, saves labor and speeds up production. It is the main equipment for modern industrial production.
Product structure
Mixing tank is composed of mixing tank body, mixing tank cover, mixer, support, transmission device, shaft seal device, etc. it can also beequipped withheating device or cooling device according to the process requirements.
Technical parameter
| Volume(L) | Cylinder Size(mm) | Motor Power(KW) | Speed(rpm) | Material |
| 50 | 300 | 0.75 | 30-180 | SUS304 / SUS316L |
| 100 | 500 | 0.75 | 30-180 | SUS304 / SUS316L |
| 200 | 600 | 1.1 | 30-180 | SUS304 / SUS316L |
| 300 | 700 | 1.5 | 30-180 | SUS304 / SUS316L |
| 500 | 900 | 2.2 | 30-180 | SUS304 / SUS316L |
| 800 | 1000 | 3 | 30-180 | SUS304 / SUS316L |
| 1000 | 1100 | 4 | 30-180 | SUS304 / SUS316L |
| 2000 | 1300 | 5.5 | 30-180 | SUS304 / SUS316L |
| 3000 | 1500 | 7.5 | 30-180 | SUS304 / SUS316L |
| 4000 | 1700 | 7.5 | 30-180 | SUS304 / SUS316L |
| 5000 | 1900 | 11 | 30-180 | SUS304 / SUS316L |
| 10000 | 2000 | 15 | 30-180 | SUS304 / SUS316L |
Note: The technical parameters of the mixing tank in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.

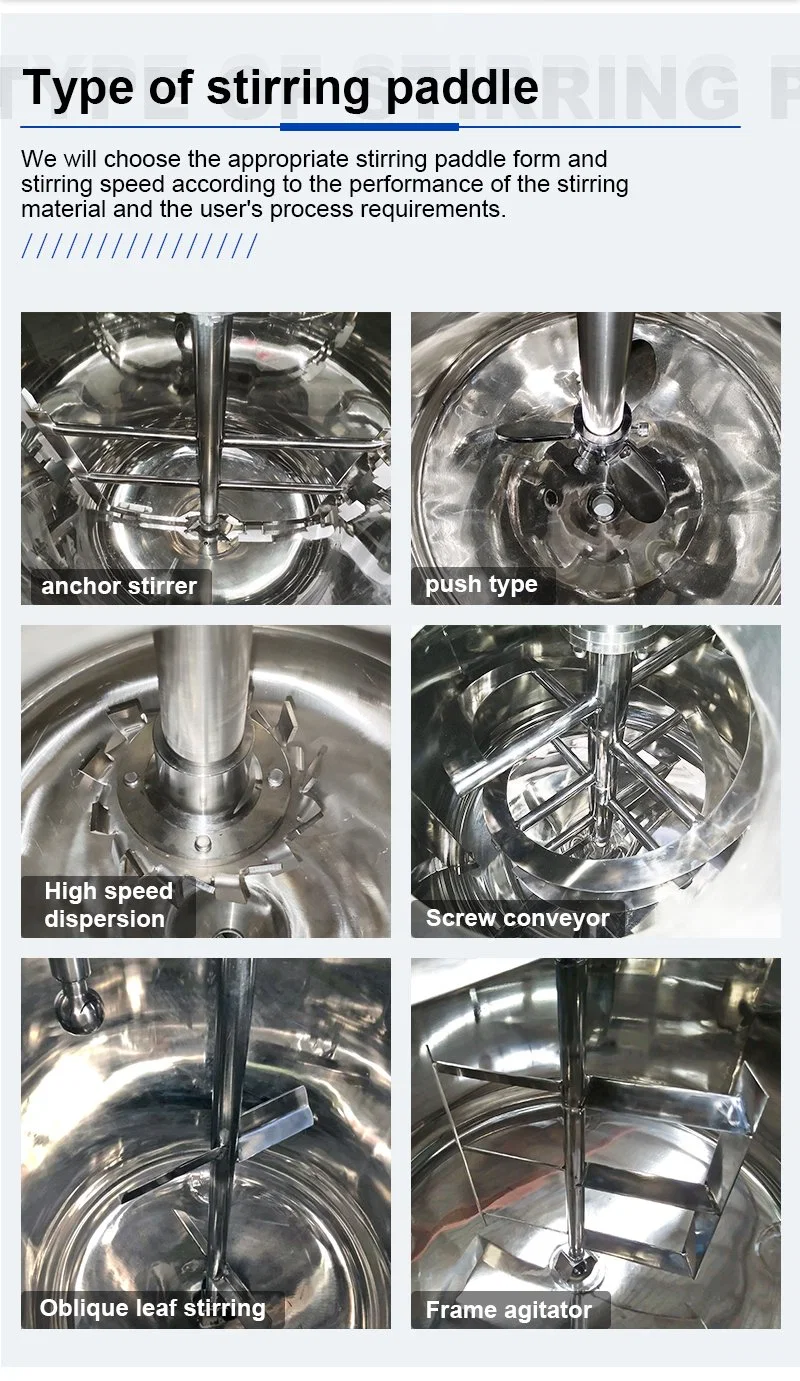

According to the material characteristics and the user's process requirements, our company will recommend the proper type of agitator and mixing speed. The agitators suitable for low viscosity and medium viscosity fluids include propelling agitators, turbine agitators, inclined blade agitators, Brumakin agitators, plate and frame agitators, three blade backward curved agitators, MIG agitators, etc. The agitators suitable for high viscosity and ultra-high viscosity fluids include anchor type agitator, frame type agitator, spiral belt type agitator and screw type agitator. The combined agitator can also be made according to the technological requirements of users.
