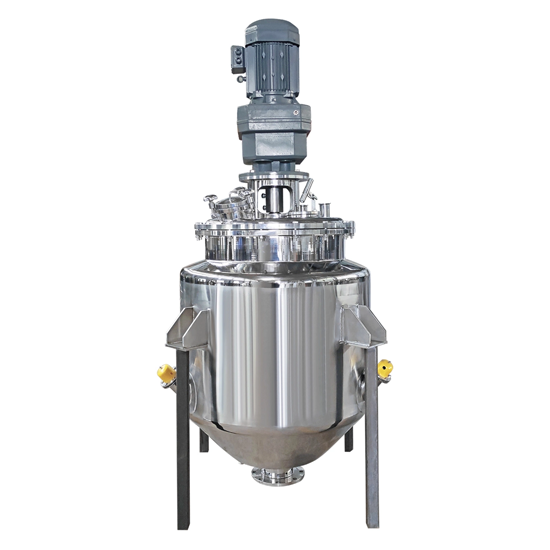

Factory Price Stainless Steel Electricity Heating Customized Sanitary Pressure Vessel Mixing Tank with Top Agitator
- Application:
- Viscous Fluid, Liquid
- After-sales Service:
- Online Support
- Warranty:
- 1 Year
- Mixer Type:
- Agitator
- Working:
- Convection Mixer
- Stirring Type:
- Revolve
Basic Info.
| Application Area | Chemical | Certification | CE, ISO |
| Mixing Drum Shape | Customer Customization | Layout Type | Verticle |
| Condition | New | Operating type | Cycle Operating |
| Motor Speed | 55 Rpm | Heating Mode | Electric Heating |
| Motor Power | 6 Kw | Quality Guarantee Period | 1 Year |
| Cylinder Diameter | 700mm | Device Mode | Fixed |
| Material Quality | 304 Stainless Steel | Power of Electric Heating | 15kw |
| Sealing Form | Mechanical Seal | Mixing Paddle Type | Customer Customization |
| Applicable Materials | Liquid Paste | Cylinder Thickness | 4mm |
| Transport Package | Wooden Box Package | Source of Goods | Factory Direct Deal |
| Origin | China | Specification | 300L |
Product Overview
Mixing tank is mainly used for mixing, mixing, blending and homogenizing materials. Stainless steel mixing tank effectively shortens the mixing time, saves labor and speeds up production. It is the main equipment for modern industrial production.
Product structure

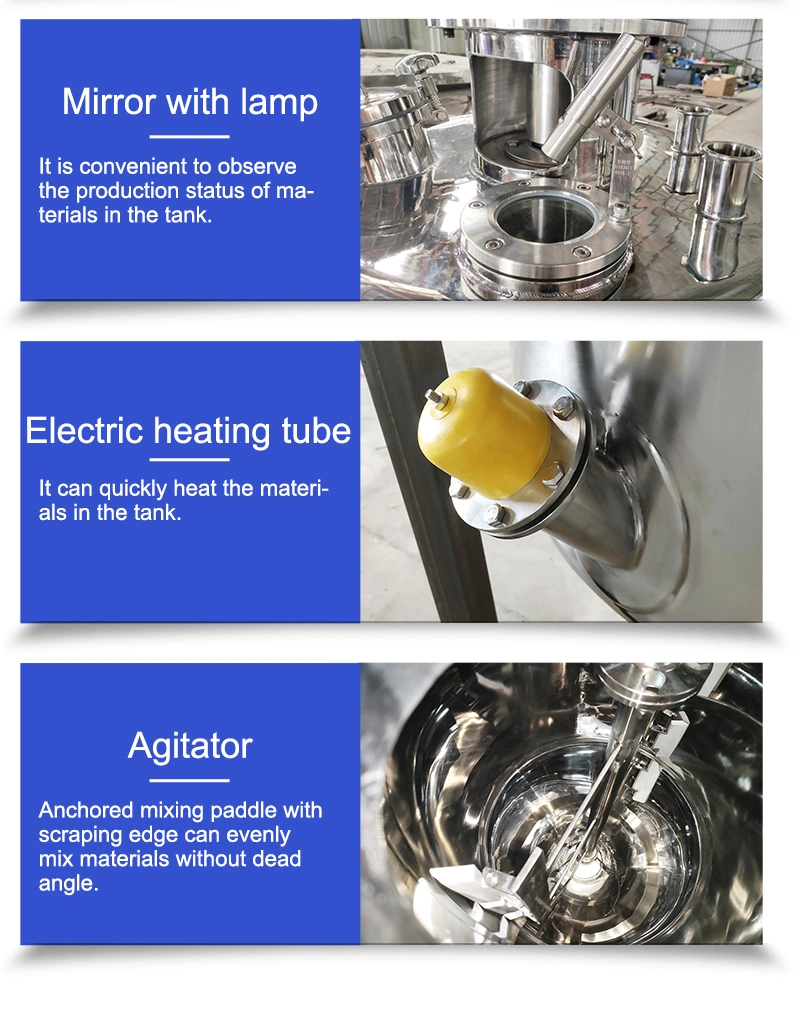

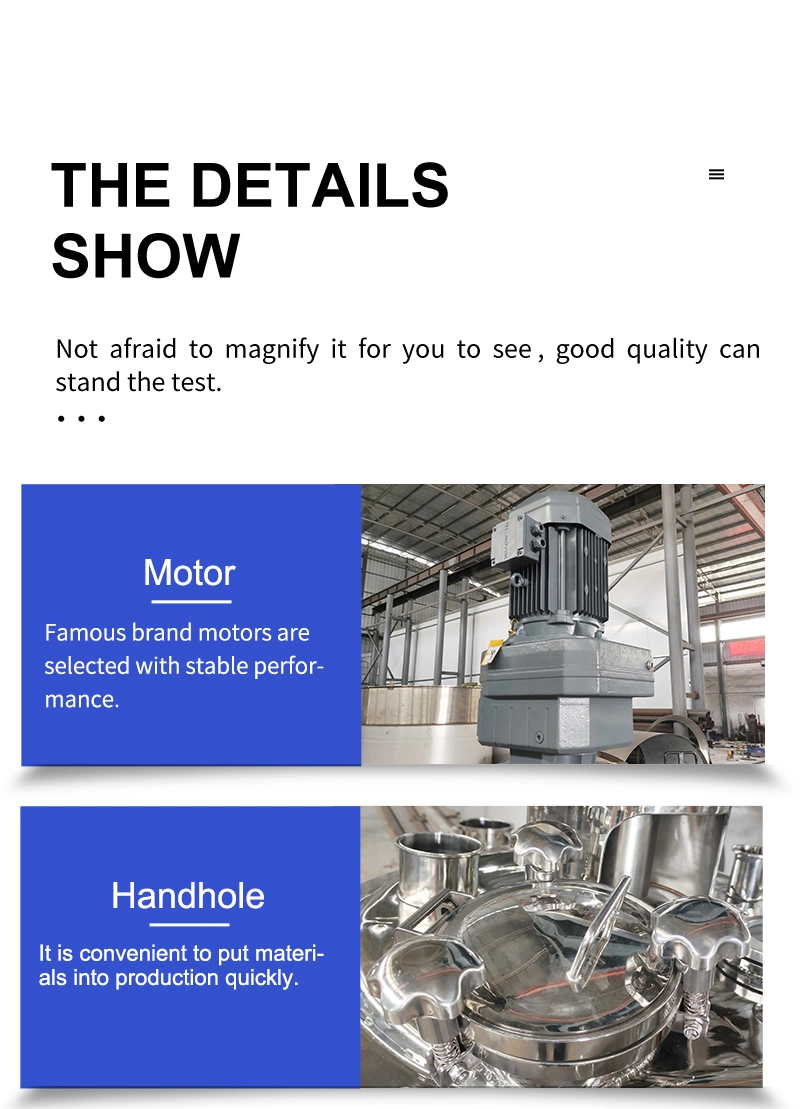

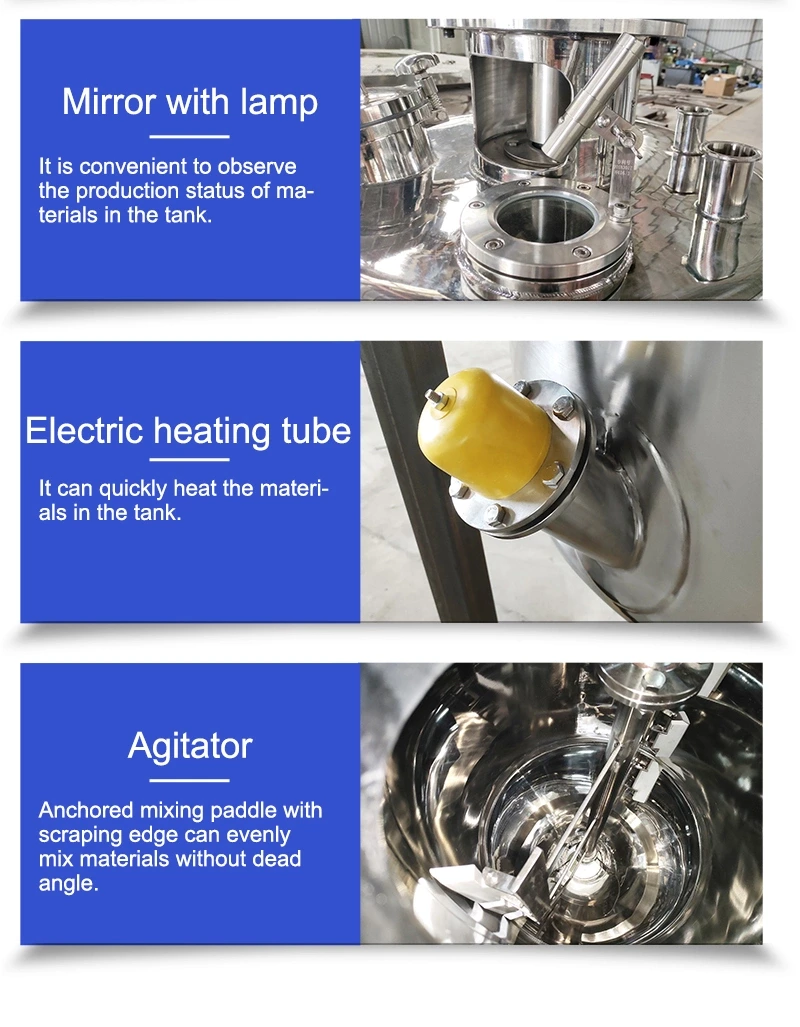

Mixing tank is composed of mixing tank body, mixing tank cover, mixer, support, transmission device, shaft seal device, etc. it can also beequipped withheating device or cooling device according to the process requirements.
Technical parameter
| Volume(L) | Cylinder Size(mm) | Motor Power(KW) | Speed(rpm) | Material |
| 50 | 300 | 0.75 | 30-180 | SUS304 / SUS316L |
| 100 | 500 | 0.75 | 30-180 | SUS304 / SUS316L |
| 200 | 600 | 1.1 | 30-180 | SUS304 / SUS316L |
| 300 | 700 | 1.5 | 30-180 | SUS304 / SUS316L |
| 500 | 900 | 2.2 | 30-180 | SUS304 / SUS316L |
| 800 | 1000 | 3 | 30-180 | SUS304 / SUS316L |
| 1000 | 1100 | 4 | 30-180 | SUS304 / SUS316L |
| 2000 | 1300 | 5.5 | 30-180 | SUS304 / SUS316L |
| 3000 | 1500 | 7.5 | 30-180 | SUS304 / SUS316L |
| 4000 | 1700 | 7.5 | 30-180 | SUS304 / SUS316L |
| 5000 | 1900 | 11 | 30-180 | SUS304 / SUS316L |
| 10000 | 2000 | 15 | 30-180 | SUS304 / SUS316L |
Note: The technical parameters of the mixing tank in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.

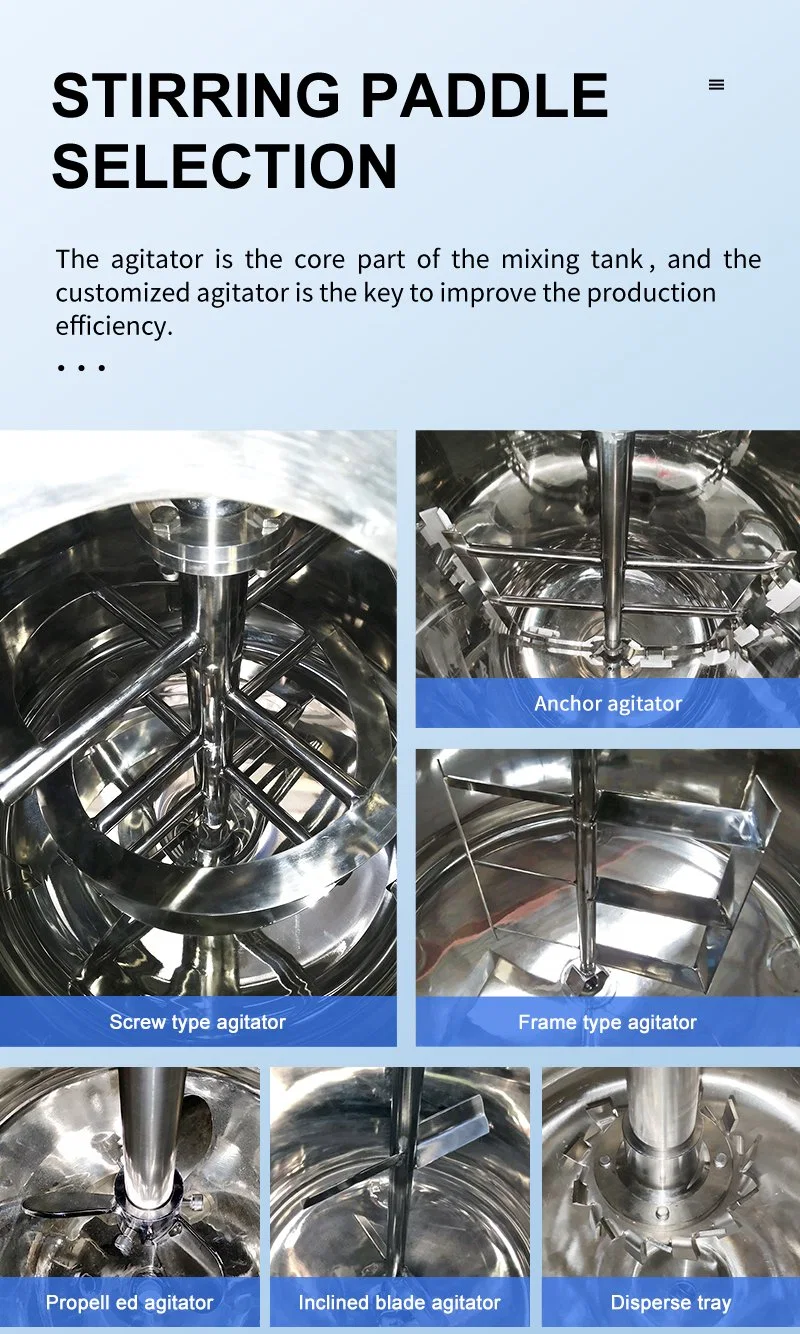

According to the material characteristics and the user's process requirements, our company will recommend the proper type of agitator and mixing speed. The agitators suitable for low viscosity and medium viscosity fluids include propelling agitators, turbine agitators, inclined blade agitators, Brumakin agitators, plate and frame agitators, three blade backward curved agitators, MIG agitators, etc. The agitators suitable for high viscosity and ultra-high viscosity fluids include anchor type agitator, frame type agitator, spiral belt type agitator and screw type agitator. The combined agitator can also be made according to the technological requirements of users.
