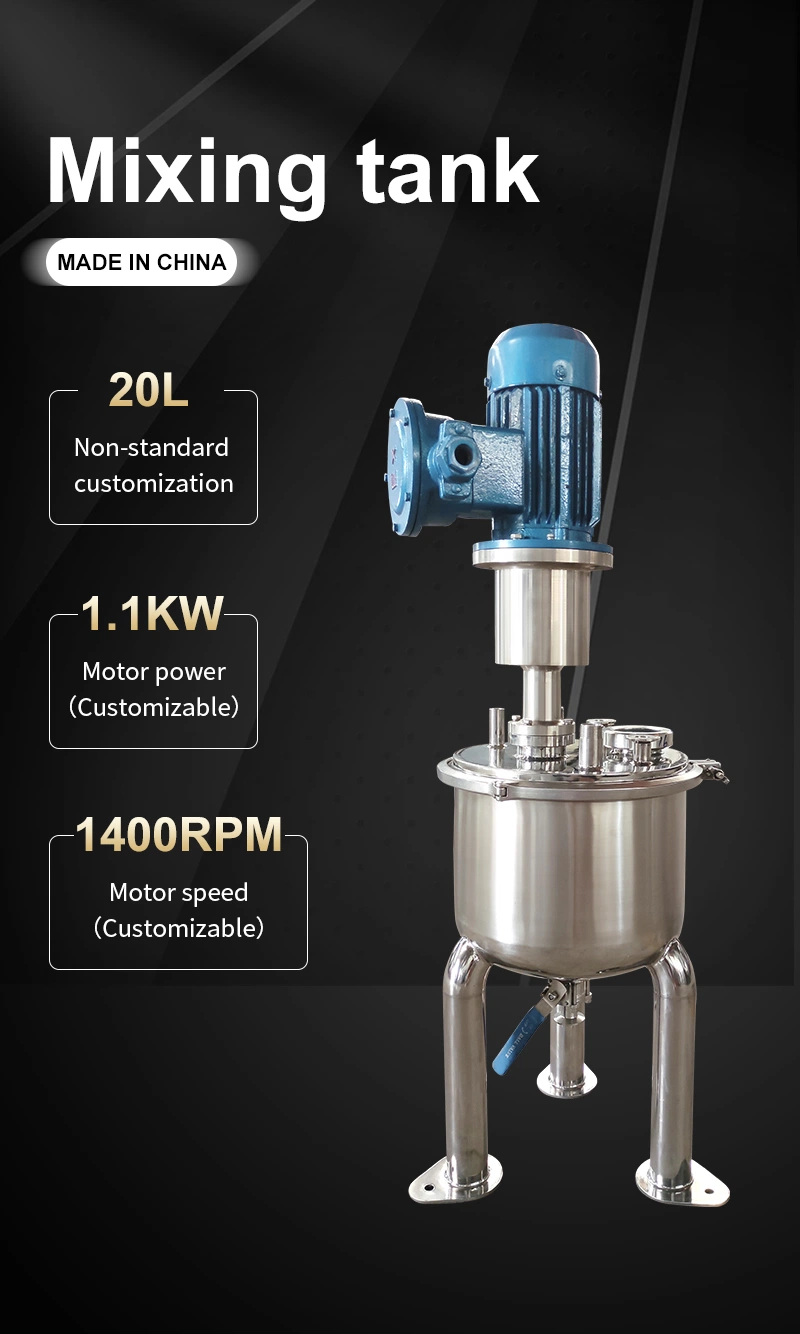

Best Price Lab Stainless Steel Tank Sanitary Oil Chemical Liquid Storage Tank Reactor Stirrer Agitator Mixer Tank Mixing Tank
- Application:
- Viscous Fluid, Liquid
- After-sales Service:
- Online Support
- Warranty:
- 1 Year
- Working:
- High Speed Mixer
- Stirring Type:
- Customer Customization
Basic Info.
| Layout Type | Verticle | Application Area | Agricultural Chemicals |
| Additional Capabilities | Coating | Mixing Drum Shape | Customer Customization |
| Condition | New | Operating type | Continuous Operating |
| Texture of Material | 304 Stainless Steel | Scope of Application | Chemical/Food/Biopharmaceutical |
| Speed | 1400rpm | Application Site | Laboratory |
| Stirring Paddle Type | High Speed Dispersion Disc | Sealing Form | Magnetic Seal |
| Cylinder Thickness | 4mm | Cylinder Diameter | 350mm |
| Inlet Diameter | DN25 | Discharge Port Diameter | DN25 |
| Structure | Vertical Single Layer | Power | 1.1kw |
| Specification | 20L | Transport Package | Wooden Box Packaging |

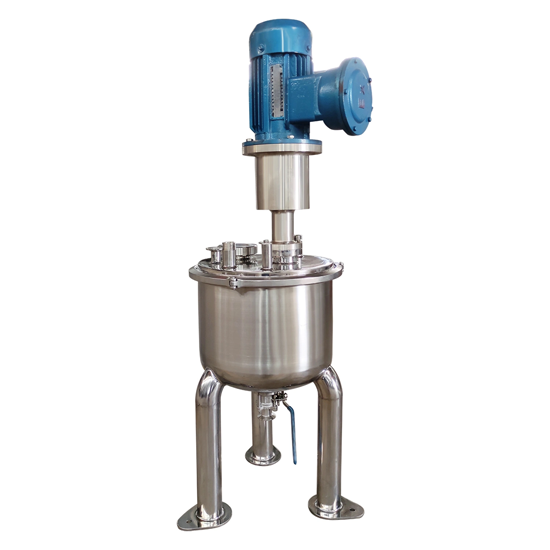

Product Overview
This is a small dispersion mixing tank, which uses a high speed dispersion disc as the agitator to quickly crush, disperse and mix materials with different viscosities in a short time. It is one of the more advanced dispersion equipment in industrial production. The small dispersion mixing tank is mainly used for dispersion, which plays a role of partial mixing under certain circumstances, and prepares for the next process. At the same time, it can also pre disperse the materials, and the pre dispersion effect is good, which is conducive to improving the work efficiency and ensuring the quality of the processed materials.
Product structure

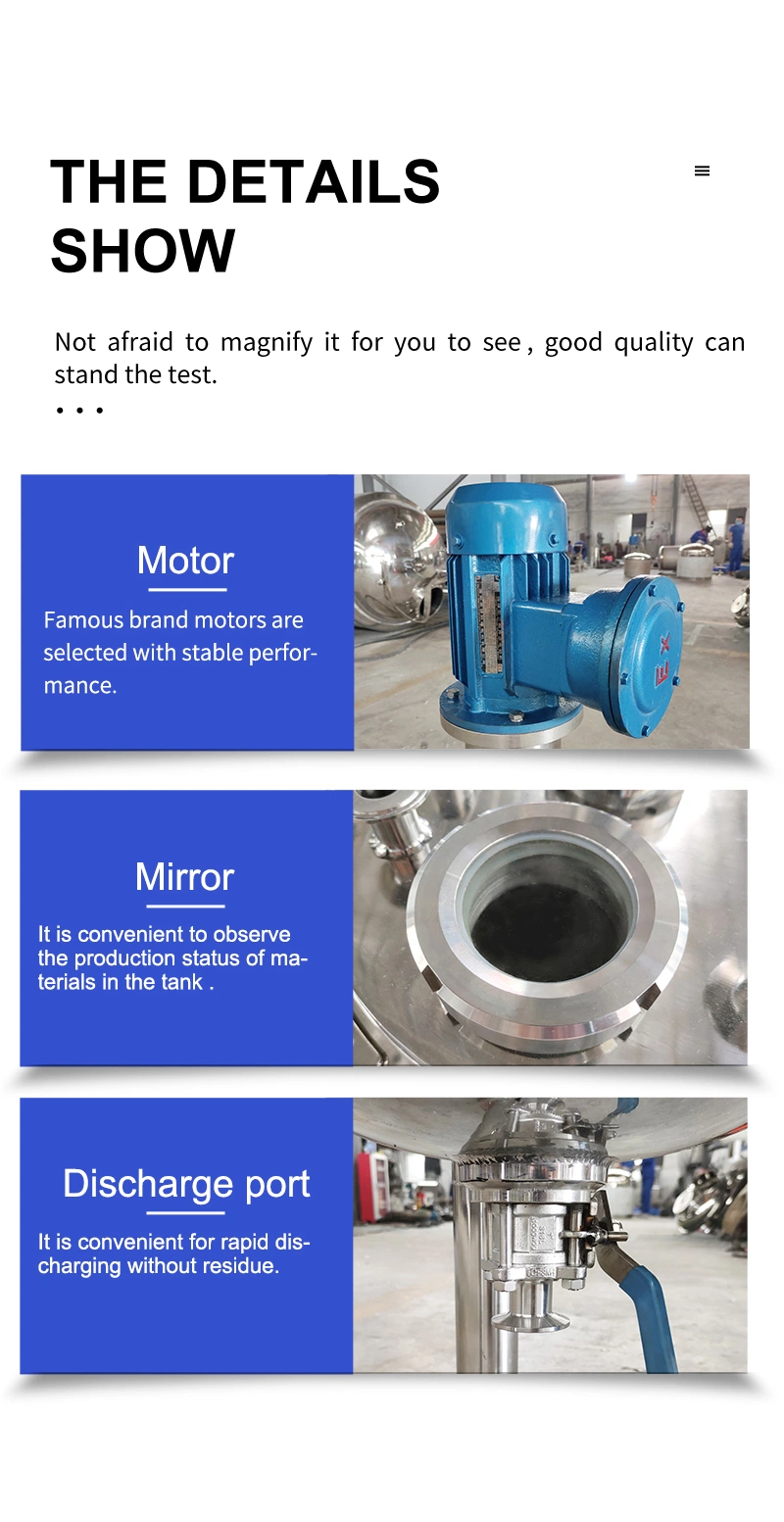

Mixing tank is composed of mixing tank body, mixing tank cover, mixer, support, transmission device, shaft seal device, etc. it can also beequipped withheating device or cooling device according to the process requirements.
Technical parameter
| Volume(L) | Cylinder Size(mm) | Motor Power(KW) | Speed(rpm) | Material |
| 50 | 300 | 0.75 | 30-180 | SUS304 / SUS316L |
| 100 | 500 | 0.75 | 30-180 | SUS304 / SUS316L |
| 200 | 600 | 1.1 | 30-180 | SUS304 / SUS316L |
| 300 | 700 | 1.5 | 30-180 | SUS304 / SUS316L |
| 500 | 900 | 2.2 | 30-180 | SUS304 / SUS316L |
| 800 | 1000 | 3 | 30-180 | SUS304 / SUS316L |
| 1000 | 1100 | 4 | 30-180 | SUS304 / SUS316L |
| 2000 | 1300 | 5.5 | 30-180 | SUS304 / SUS316L |
| 3000 | 1500 | 7.5 | 30-180 | SUS304 / SUS316L |
| 4000 | 1700 | 7.5 | 30-180 | SUS304 / SUS316L |
| 5000 | 1900 | 11 | 30-180 | SUS304 / SUS316L |
| 10000 | 2000 | 15 | 30-180 | SUS304 / SUS316L |
Note: The technical parameters of the mixing tank in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.

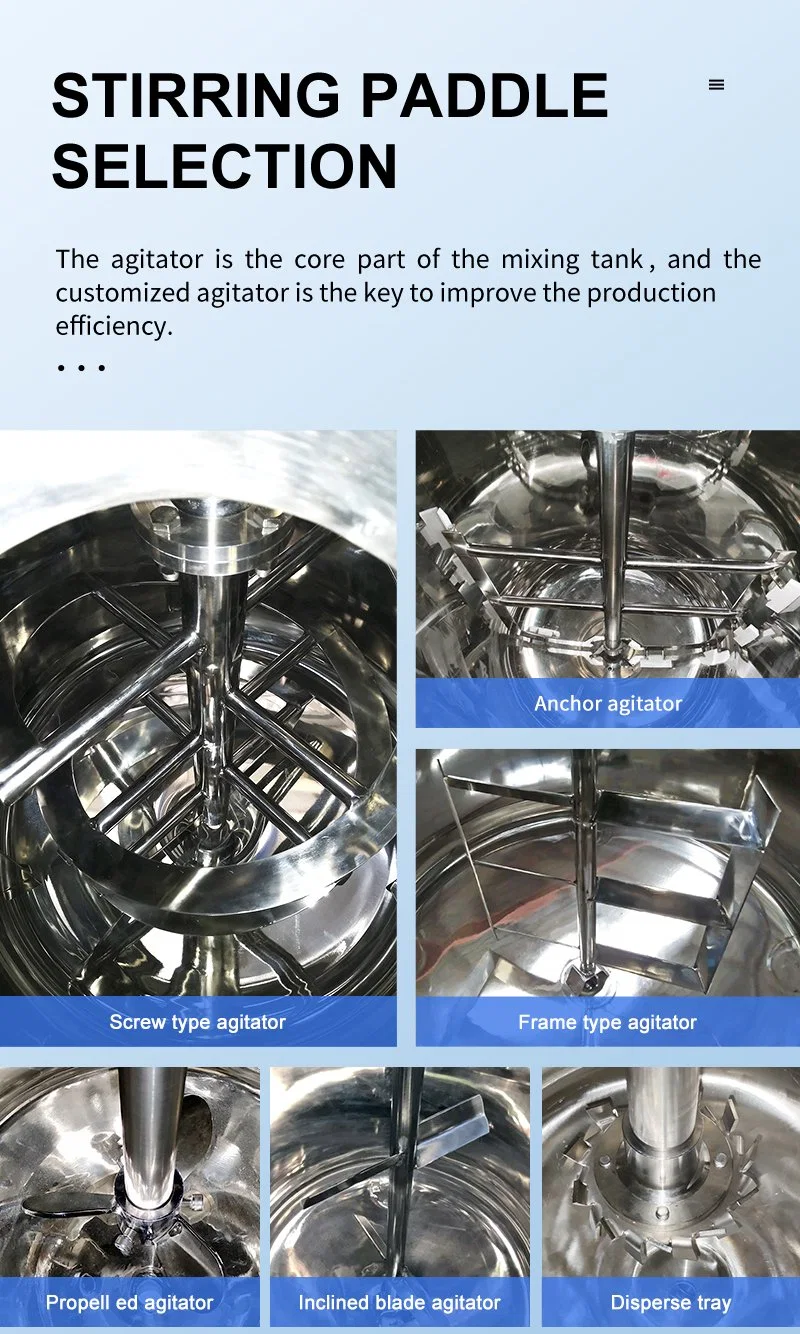

According to the material characteristics and the user's process requirements, our company will recommend the proper type of agitator and mixing speed. The agitators suitable for low viscosity and medium viscosity fluids include propelling agitators, turbine agitators, inclined blade agitators, Brumakin agitators, plate and frame agitators, three blade backward curved agitators, MIG agitators, etc. The agitators suitable for high viscosity and ultra-high viscosity fluids include anchor type agitator, frame type agitator, spiral belt type agitator and screw type agitator. The combined agitator can also be made according to the technological requirements of users.
